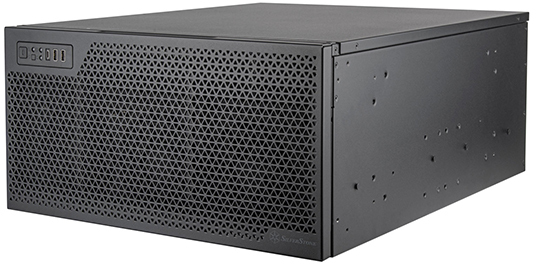

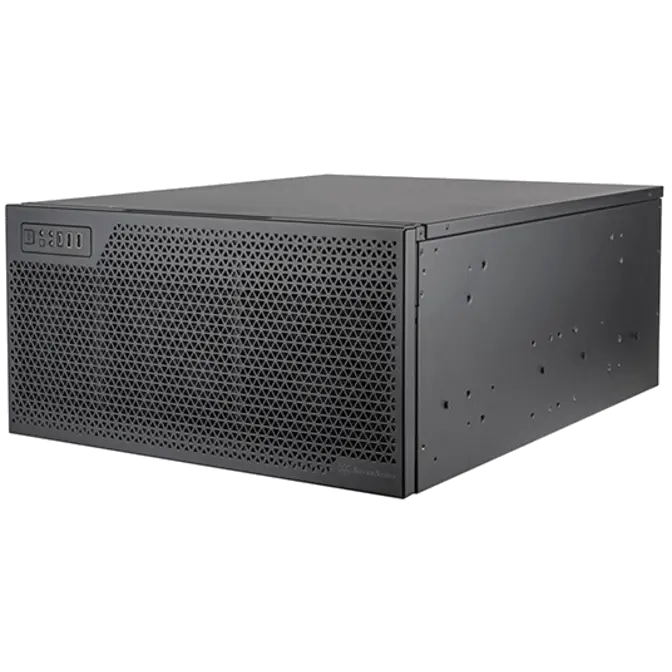

Silverstone RM52 5U Rackmount Server Chasis

Web ID: 38172

Supports up to SSI-EEB motherboards
Supports dual 360mm liquid cooling radiators
8 PCI expansion slots
Reserved sliding rail mounting holes for quick rail installation
Includes one USB Type-C interface
Upright or horizontal placement flexibility

Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM52
Manufacturer Website

$699

silverstone rm52 5u rackmount server chasis

Model No.

SST-RM52

Chassis form factor

5U

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Material

Steel

Drive Bay

Internal

  • 3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)

Power Supply

Primary PSU slot: PS2 (ATX) / Mini Redundant
Secondary PSU slot: SFX (occupies 3.5" bracket)

Limitation of PSU

160mm~190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation)

Cooling system

Front

  • 120mm x 6

Rear

  • Rear I/O:
    120mm x 1 / 140mm x 1 (1 x 140mm fan included)
    Rear fan cage:
    80mm x 2 (2 x 80mm fans included)

Radiator support

Front

  • 120mm x 4 / 360mm x 2

Rear

  • 120mm x 1

Limitation of CPU cooler

Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm

Expansion card

Length: 512mm (without installing front fans, radiators, and internal radiator bracket removed) / 365mm (dual radiators installed with each radiator with fans having a combined thickness of 53mm) *
Width w/ expansion card retainer: 160mm
Width w/o expansion card retainer: 198mm

Expansion Slot

8

Front I/O Port

USB Type-C x 1
USB 3.0 x 2

LED indicator

Power status x 1
HDD activity x 1
LAN activity x 2

Dimension

Incl. rear fan cage: 440mm (W) x 220mm (H) x 605mm (D), 58.56 liters
Excl. rear fan cage: 440mm (W) x 220mm (H) x 560mm (D), 54.21 liters
Incl. rear fan cage: 17.3" (W), 8.66" (H), 23.82" (D)
Excl. rear fan cage: 17.3" (W), 8.66" (H), 22.05" (D)

Net Weight

11.45 kg

Extra

Side switch for chassis intrusion security
