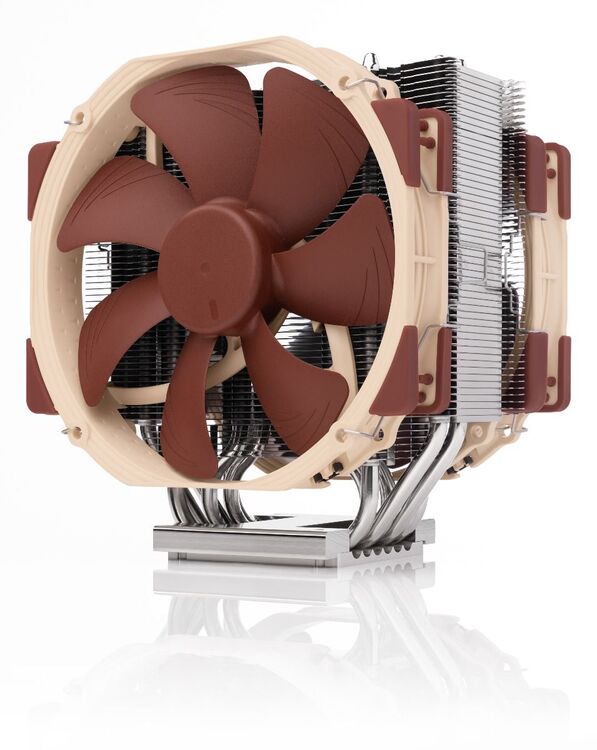

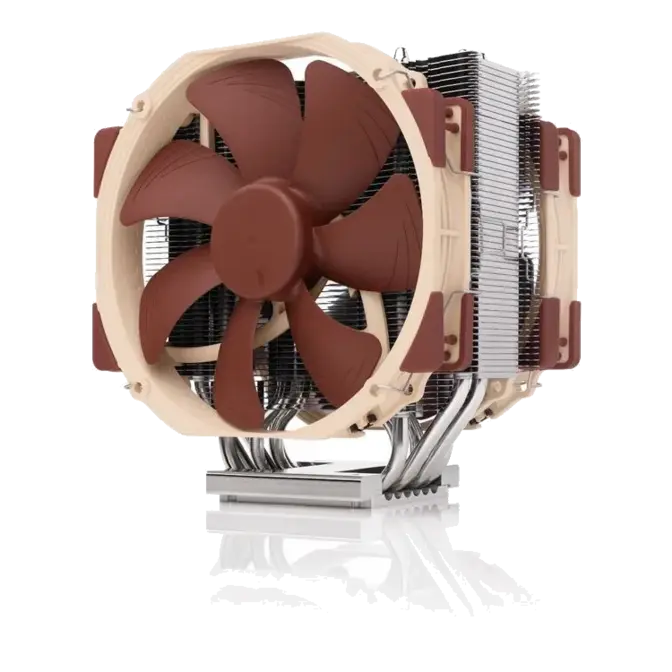

Noctua NH-U14S TR5-SP6 AMD CPU Cooler
Web ID: 38917

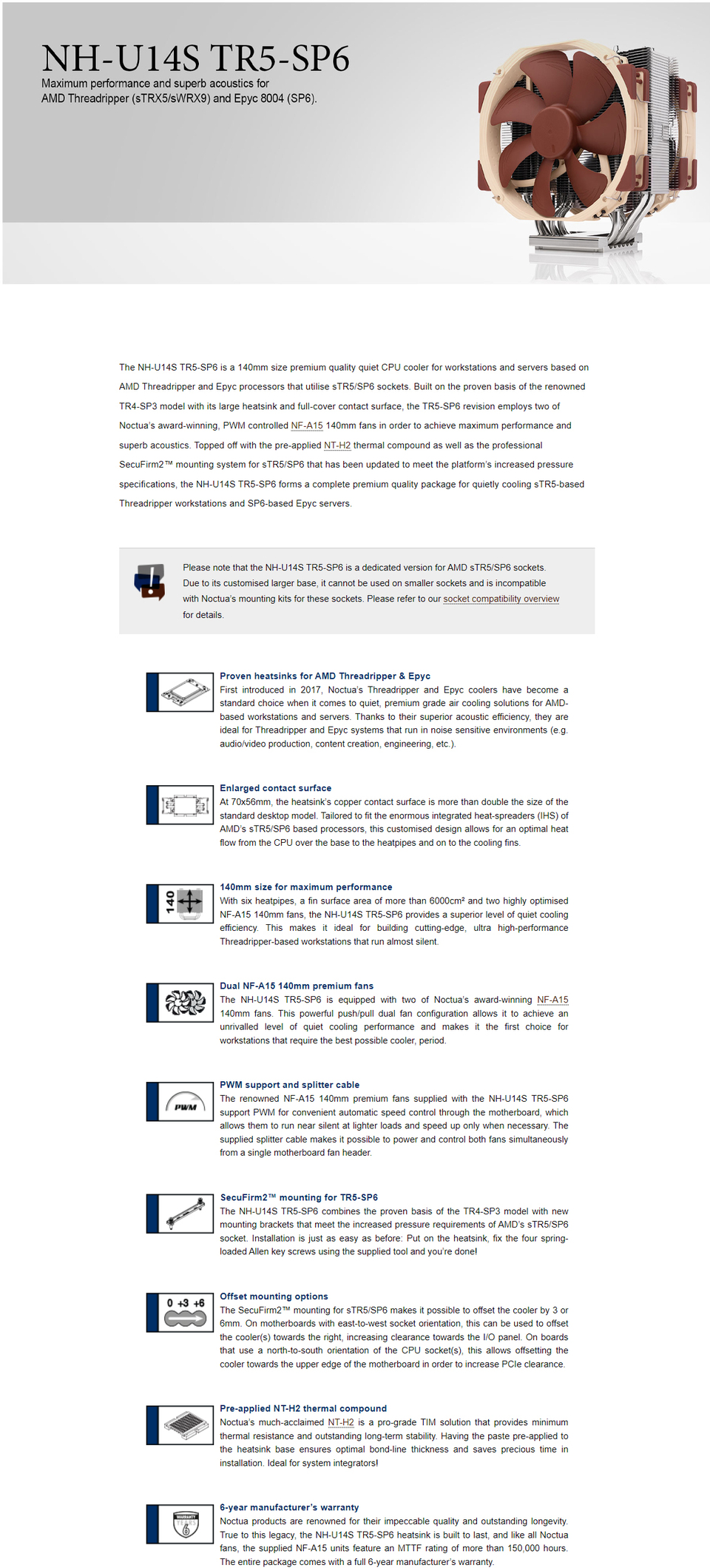

The NH-U14S TR5-SP6 is a 140mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise sTR5/SP6 sockets. Built on the proven basis of the renowned TR4-SP3 model with its large heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctuas award-winning, PWM controlled NF-A15 140mm fans in order to achieve maximum performance and superb acoustics. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2 mounting system for sTR5/SP6 that has been updated to meet the platforms increased pressure specifications, the NH-U14S TR5-SP6 forms a complete premium quality package for quietly cooling sTR5-based Threadripper workstations and SP6-based Epyc servers.
Manufacturer Warranty: 6 Year
Manufacturer PN: NH-U14S TR5-SP6
GTIN: 841501100451
Manufacturer Website
Product Details
Notes and warnings
Please note that the NH-U14S TR5-SP6 is a dedicated version for AMD sTR5/SP6 sockets. Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua’s mounting kits for these sockets. Please refer to our socket compatibility overview for details.
Cooler Specification
Socket compatibility
AMD sTR5, SP6
Height (without fan)
165 mm
Width (without fan)
150 mm
Depth (without fan)
52 mm
Weight (without fan)
797 g
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
111 mm
Weight (with fan)
1136 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
179
Max. TDP
see NSPR
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
- 2x NF-A15 HS-PWM premium fan
- NA-YC1 4-pin PWM splitter cable
- NT-H2 high-grade thermal compound (pre-applied)
- SecuFirm2™ mounting kit for sTR5/SP6
- NM-SMT4 mounting tool for mounting bracket installation
Warranty
6 Years
FAN Specification
Model
2x Noctua NF-A15 HS-PWM
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed @ 20% PWM (+/-20%)
300 RPM
Max. airflow
140,2 m³/h
Max. airflow with L.N.A.
115,5 m³/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
140.2 m³/h
Airflow with L.N.A.
115.5 m³/h
Acoustical noise
24.6 dB(A)
Input power (typical)
1.056 W
Input power (max.)
1,56 W
Voltage range
12 V
MTTF
> 150.000 h
