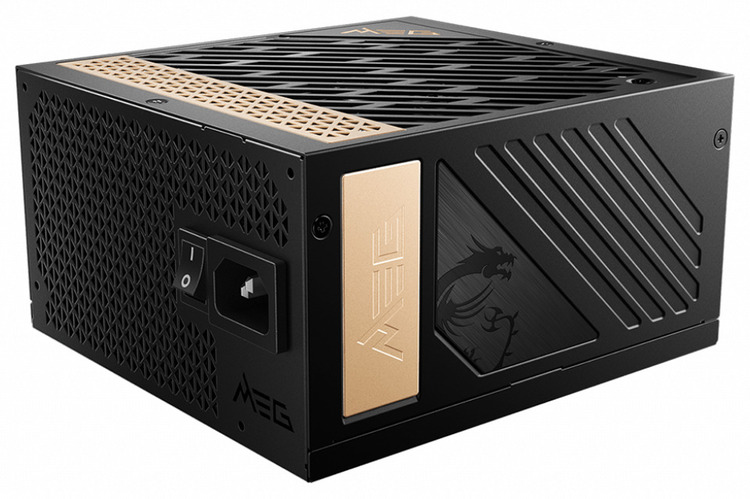

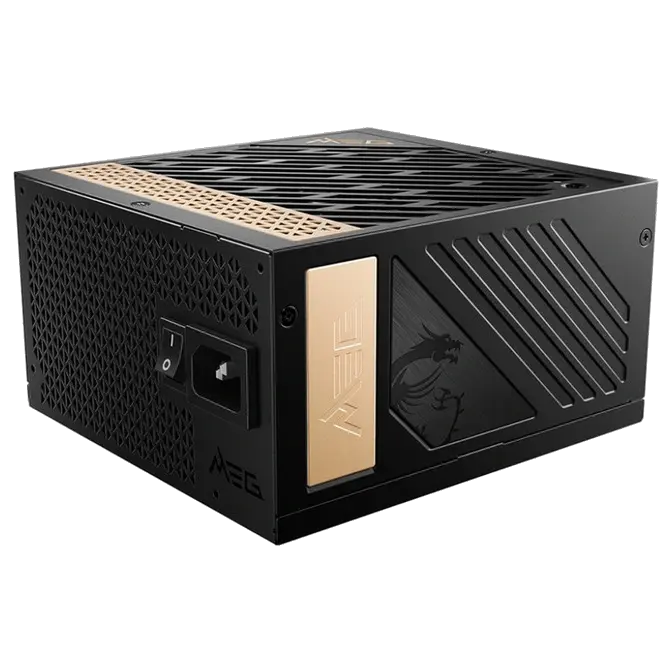

1300 Watt MSI MEG Ai1300P 80 Plus Platinum Gen5 Modular Power Supply
Web ID: 39275
Supports Nvidia GeForce RTXTM 40 Series graphics cards
PCIe 5.0 ready, with native 16 pin connector
80 PLUS Platinum certified for high efficiency
100% all Japanese 105oC capacitor
Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC module design
Manufacturer Warranty: 10 Year
Manufacturer PN: MEG Ai1300P PCIE5
GTIN: 824142292259
Manufacturer Website
$495
| EFFICIENCY RATING |
80 PLUS Platinum (up to 92%) |
| MODULAR |
Yes (full modular) |
| FAN SIZE |
120 mm |
| FAN BEARING |
Hydro Dynamic Bearing |
| DIMENSIONS (DXWXH) |
160 x 150 x 86 mm |
| PFC TYPE |
Active PFC |
| INPUT VOLTAGE RANGE |
100-240~ |
| POWER WATT |
1300W |
| POWER EXCURSION |
2600W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE |
50~60 Hz |
| PROTECTION |
OCP / OVP / OPP / OTP / SCP / UVP |

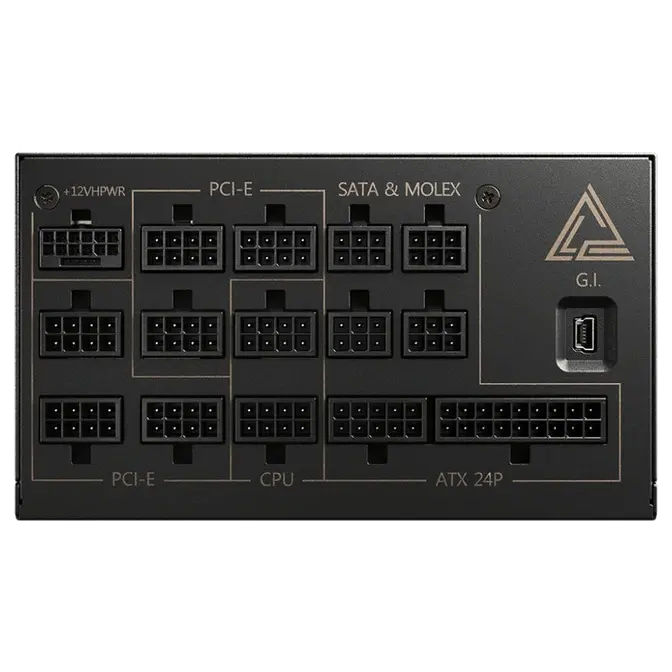

| ATX (24 PIN) |
1 |
| EPS (8 PIN) |
1 |
| EPS (4+4 PIN) |
1 |
| PCI-E 5.0 (16 PIN) |
1 (600W) |
| PCI-E (6+2 PIN) |
8 |
| SATA (15 PIN) |
16 |
| MOLEX (4 PIN) |
4 |
| FDD (4 PIN) |
1 |
