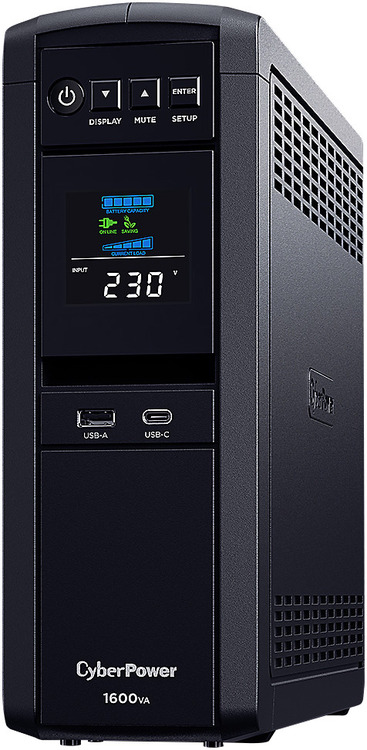

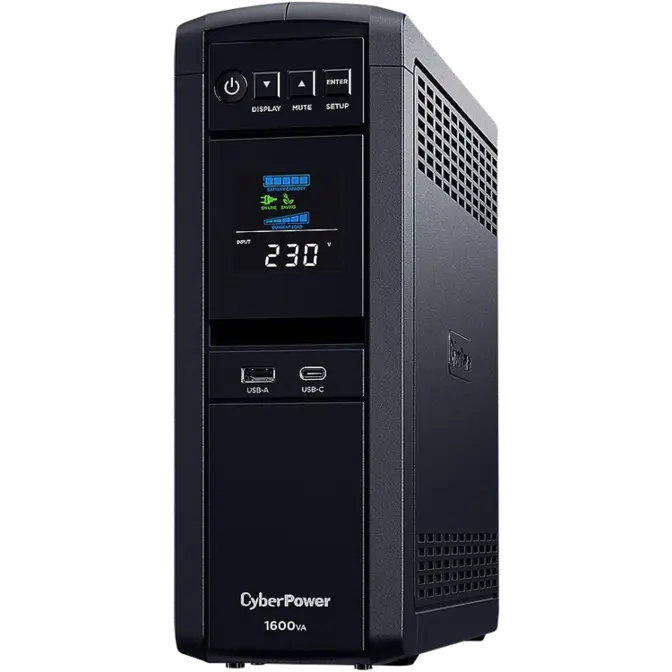

1600VA CyberPower PFC Sinewave Series Tower UPS CP1600EPFCLCD
Web ID: 42093
CyberPower CP1600EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.
Manufacturer Warranty: 2 Year
Manufacturer PN: CP1600EPFCLCD
GTIN: 4711027798349
Manufacturer Website
The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.
FEATURES
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- LED Status Indicator
- PowerPanel Management Software
- USB Charging Port(s)
- Tower Form Factor
- Energy Saving Technology
- Pure Sine Wave Output
- Color LCD Panel
- SNMP/HTTP Remote Management Capability (Optional)
- Surge and Spike Protection
- High-speed Ethernet Data Transmission
GENERAL
Form Factor
| Tower |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
Active PFC Compatibility
| Yes |
INPUT
Nominal Input Voltage ( Vac )
| 220 |
| 230 |
| 240 |
Input Voltage Range ( Vac )
| 169 ~ 271 |
Input Frequency ( Hz )
| 50 ± 3 |
| 60 ± 3 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 10 |
Input Connector Type
| IEC C14 |
Detachable Power Cord Plug Type
| Schuko x |
Power Cord Length (ft.)
| 6 |
Power Cord Length (m.)
| 1.83 |
OUTPUT
Capacity (VA)
| 1600 |
Capacity (Watts)
| 1000 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 230 ± 5 % (Under a test load of<60%. When the load>60%, the output voltage range may>5%.) |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost |
Overload Protection
| Internal Current Limiting |
Outlet(s) - Total
| 6 |
Outlet Type
| Schuko x 6 |
Outlet(s) - Battery & Surge Protected
| 6 |
Typical Transfer Time ( ms )
| 8 (At normal sensitivity) |
USB Charging Port(s)
| USB-A x 1 |
| USB-C x 1 |
USB Charging Total Output ( Watts )
| 30 |
USB-A Charging Output
| 5 V/ 2.4 A Max |
USB-C Charging Output
| 5 V/ 2.5 A Max |
| 9 V/ 2 A Max |
| 15 V/ 2 A Max |
BATTERY
Runtime at Half Load ( min )
| 9.7 |
Runtime at Full Load ( min )
| 2.6 |
Typical Recharge Time ( Hours )
| 8 (Recover to 90% after full load discharge) |
User-replaceable
| Yes |
Battery Type
| Sealed Lead-acid |
Replacement Battery Pack (RBP)
| RBP0142 |
Replacement Battery Pack (RBP) Quantity ( pcs )
| 1 |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 405 |
Network Protection RJ45
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Types
| Color LCD |
Tiltable LCD Panel
| 22° |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log |
LCD Setting & Control
| Alarm Setting, Input & Output, Battery Setting, Event & Log |
LED Indicators
| Power On |
HID Compliant USB Port(s)
| 1 |
Serial Port
| Dry Contact |
Audible Alarms
| Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs )
| USB Cable x1 |
Ethernet Data Transmission Speed
| Up to 1Gbps |
Power Management Software
| PowerPanel Business (Recommended) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (mm.)
| 100 x 280 x 355 |
Weight (lbs.)
| 24.25 |
Weight (kg.)
| 11 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F)
| 5 ~ 113 |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-49,213 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 24 |
CERTIFICATIONS
Certifications
| CE |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)
| 3 |
Battery Warranty Period (Year)
| 2 |
Connected Equipment Guarantee
| 25,000 Euro ; 2 years |
