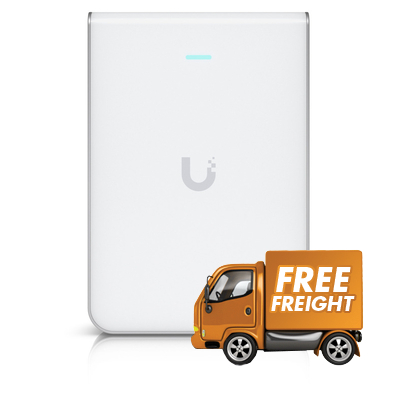

Ubiquiti U7 Pro Wall WiFi 7 In Wall Access Point
Web ID: 45895
Type: Access Point
WiFi Standard: Wi-Fi 7
LAN Speed: 2.5 Gigabit
Wireless Channel: Tri Band || 2.4GHz || 5GHz || 6GHz
Connection Type: Wireless
Manufacturer Warranty: 2 Year
Manufacturer PN: U7-Pro-Wall
GTIN: 810084695548
Manufacturer Website
$409
Overview
| Attribute | Value |
|---|---|
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |

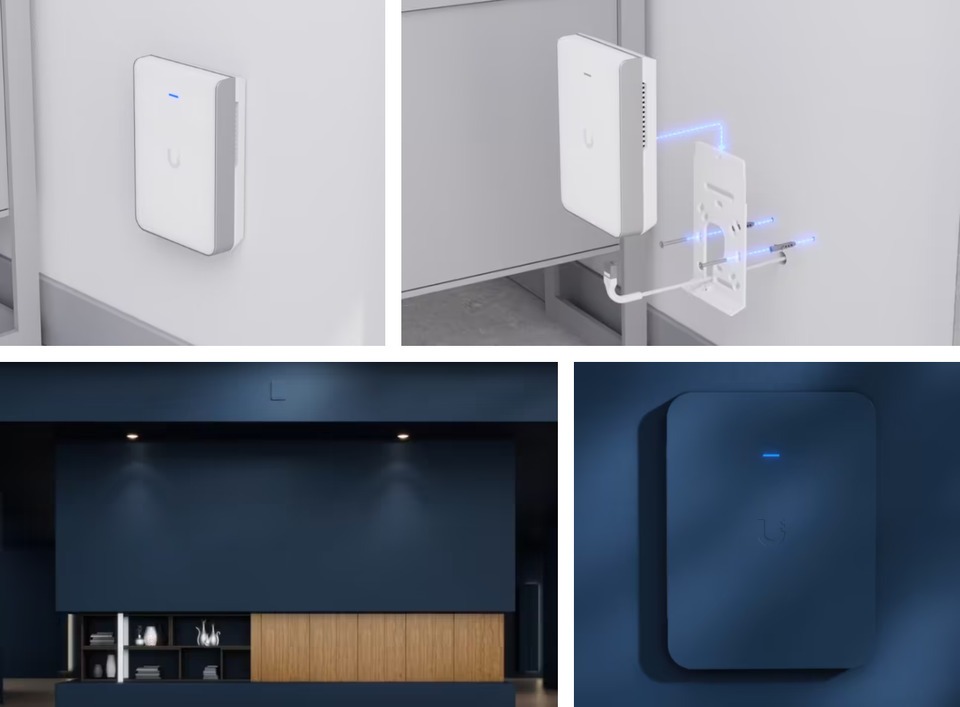

| Mounting | Wall (Mount Included) |
| Power Method | PoE+ |
Performance
| Attribute | Value |
|---|---|
| MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 2 x 2 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320) 5 GHz: 4.3 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 6 GHz: 6 dBi 5 GHz: 5 dBi 2.4 GHz: 4 dBi |
| Max. TX Power | 6 GHz: 23 dBm 5 GHz: 26 dBm 2.4 GHz: 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Features
| Attribute | Value |
|---|---|
| Wireless Meshing | ? |
| Band Steering | ? |
| 802.11v BSS Transition Management | ? |
| 802.11r Fast Roaming | ? |
| 802.11k Radio Resource Management (RRM) | ? |
| Advanced Radio Management | ? |
| Passpoint (Hotspot 2.0) | ? |
| Captive Hotspot Portal | Custom Branding Landing Page ? |
| Voucher Authentication | ? |
| Payment-Based Authentication | ? |
| External Portal Server Support | ? |
| Password Authentication | ? |
| Guest Network Isolation | ? |
| Private Pre-Shared Key (PPSK) | ? |
| WiFi Speed Limiting | ? |
| Client Device Isolation | ? |
| WiFi Schedules | ? |
| RADIUS over TLS (RadSec) | ? |
| Dynamic RADIUS-assigned VLAN | ? |
Hardware
| Attribute | Value |
|---|---|
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44—57V DC |
| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 580 g (1.3 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ? |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| Attribute | Value |
|---|---|
| Application Requirements | UniFi Network Version 8.1.113 and later |
