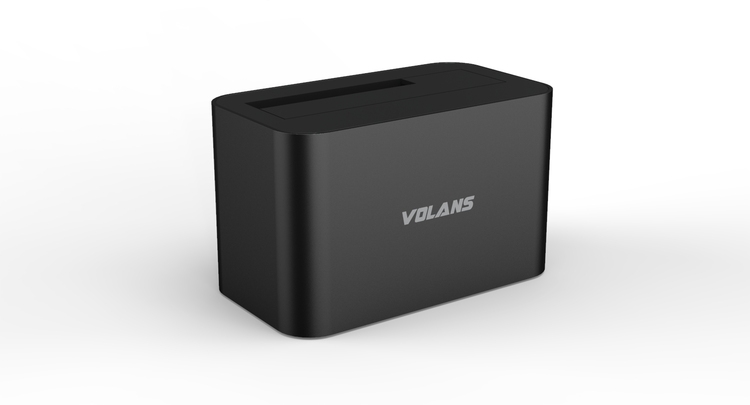

1 Bay Volans VL-DS10S Aluminium USB3.0 HDD Docking Station
Web ID: 34836
Designed for direct insertion of one 2.5 inch or 3.5 inch SATA HDD/SSD.
USB 3.0 SuperSpeed Interface, transfer rates up to 5Gbps.
Backwards-Compatible with USB 2.0, transfer rates up to 480Mbps.
LED light indicates Power and Activity status.
Hot-swappable, plug and play, no drivers needed.
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-DS10S
GTIN: 783495871538
Manufacturer Website
$29
- Designed for direct insertion of one 2.5 inch or 3.5 inch SATA HDD/SSD
- USB 3.0 SuperSpeed Interface, transfer rates up to 5Gbps
- Backwards-Compatible with USB 2.0, transfer rates up to 480Mbps
- LED light indicates Power and Activity status
- Hot-swappable, plug and play, no drivers needed
- Support UASP (USB Attached SCSI) for Windows 8 and above, Mac OS 10.8 and above
- Compatible Operating Systems: Windows XP and above (32/64-bit), Mac OS 10.4 and above, Linux
Specification
| WARRANTY INFORMATION | |
|---|---|
| Warranty | 1 Year |
| HARDWARE | |
| Chipset ID | JMS578 |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in & 3.5in |
| Interface | USB 3.0 |
| Number of Drives | 1 |
| PERFORMANCE | |
| Max Drive Capacity | Currently tested with up to 16TB 7200 RPM 3.5″ hard drive and 2TB 7200 RPM 2.5″ hard drive |
| RAID | No |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| SATA III (6 Gbps) | |
| UASP Support | Yes |
| CONNECTOR(S) | |
| Drive Connectors | 1 – SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | 1 – USB 3.0 B Female |
| SOFTWARE | |
| OS Compatibility | OS independent; No software or drivers required |
| INDICATORS | |
| LED Indicators | 1 – Drive Status |
| 1 – Power Indicator | |
| 1 – Progress Indicator | |
| POWER | |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240V |
| Output Current | 2A |
| Output Voltage | 12V |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| ENVIRONMENTAL | |
| Humidity | 20%RH ~ 80%RH |
| Operating Temperature | 5°C – 35°C (41°C to 95°C) |
| Storage Temperature | -20°C – 50°C (-4°C to 122°C) |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – DS10S |
| 1 – USB 3.0 cable | |
| 1 – power adapter | |
