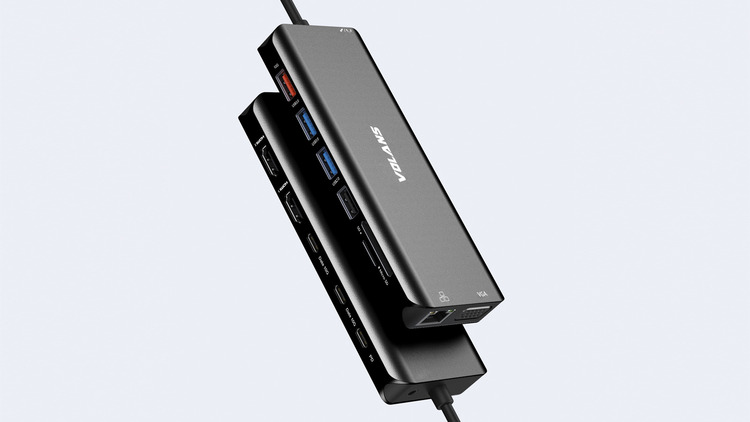

VOLANS VL-UCTDMH-S2 14-in-1 USB-C Hub with 100W PD
Web ID: 48278
Display Input: USB-C In
USB-A Ports: 4
USB-C Ports: 3
Display Output: VGA Out | HDMI Out
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-UCTDMH-S2
GTIN: 742259108174
Manufacturer Website
1. HDMI Output(1st):
up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)
2. HDMI Output(2nd): up to 4K @30Hz resolution
4K UHD HDMI Display: Enjoy crisp, high-resolution display on any HDMI-enabled monitor. Simply connect a HDMI cable (2.0 or higher) from your monitor to adapter, for brilliant video output up to 4K. Requires a direct HDMI to HDMI connection
3. 1xUSB-A 2.0
Up to 480Mbps data speed. Design for the connection of 2.4 GHz wireless devices, such as wireless keyboards/mouse adapters etc.
4. 2 x USB-C Port(Data): Data Transfer up to 10Gb/s data speed
5. 1 x USB-C Port(PD): Power Delivery Ver3.0
Up to 100W upstream charging the source devices such as USB-C Laptop/MacBook. Please make sure your device support power delivery protocol
6. 3.5mm Audio 2-in-1 jack
7. VGA: Up to 1080P @60Hz
8. RJ45 Gigabit Ethernet:
Up to 1000Mbps, stable wired access for high-speed connectivity. Connect to the internet instantly via a wired gigabit Ethernet port.
9. SD/Micro SD card reader
Read: 50-104MB/s; Write: 30-80MB/s; SD/TF support working simultaneously. Data transfer rates are subject to the speed of the memory card itself and your computer’s USB port.
10. 3 x USB-A 3.1
1xUSB-A 3.1,Gen2 up to 10Gbps,5V0.9A Max / 2xUSB-A 3.1,up to 5Gbps,5V0.9A Max
| S/N | Function | Interface | Total | Description |
| 1 | Video output | HDMI | 2 | Up to 4K@30Hz/60Hz |
| 2 | VGA | 1 | Up to 1080P@60Hz | |
| 3 | Data Transfer | USB-A 2.0 | 1 | 480Mb/s data speed |
| 4 | USB-A 3.0 | 3 | 2 x 5Gb/s and 1 x 10Gb/s data speed | |
| 5 | USB-C | 2 | Gen2 up to 10Gbps,5V0.9A Max | |
| 6 | Power | USB-C | 1 | Gen2 up to 10Gbps,5V0.9A Max |
| 7 | Audio | Audio jack | 1 | 3.5mm audio 2-in1 jack |
| 8 | Lan port | RJ45 | 1 | Gigabit Ethernet up to 1000Mbps |
| 9 | Data | Card slot | 2 | SD / MicroSD |
| IC Solution | RTD2142(VIDEO)+RTS5459(PD)+VL822(USB3.1)+RTS5411(USB3.0)+FE1.1(USB2.0)+RTL8153(RJ45)+RTS5306(SD/TF) | |||
| Product Material | Aluminum + ABS | |||
| Product Color | Black | |||
| Product Certificate | FCC/CE/ROHS | |||
