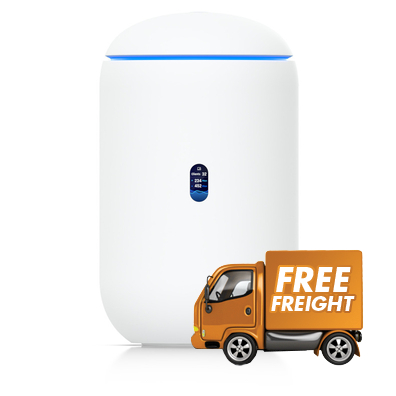

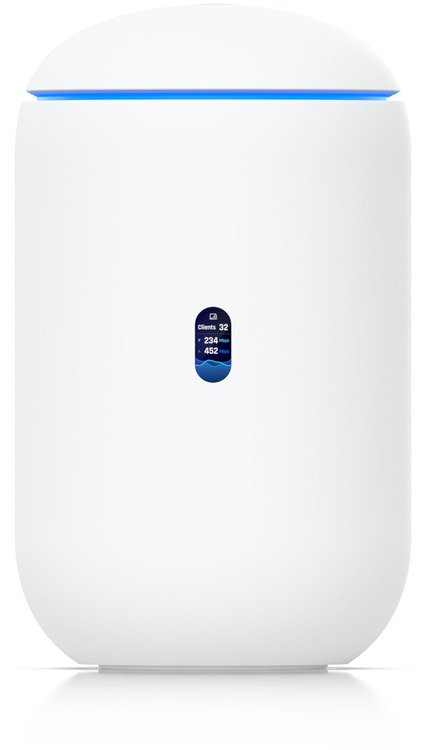

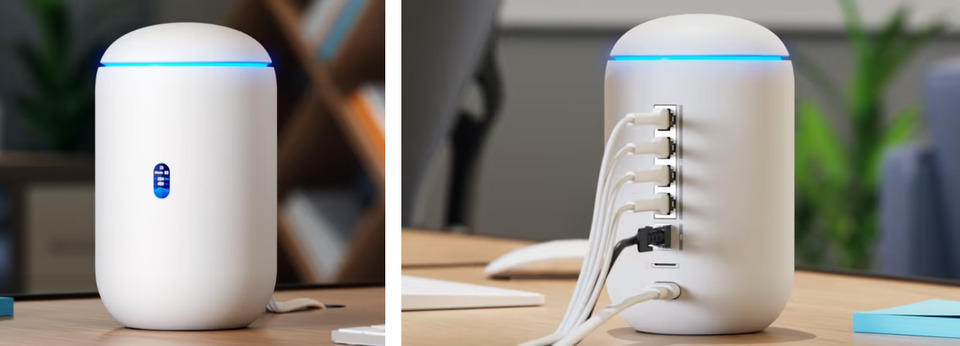

Ubiquiti Unifi UDR7 Dream Router 7 Router
Web ID: 45989
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
WiFi Standard: Wi-Fi 7
Wireless Channel: Tri Band || 2.4GHz || 5GHz || 6GHz
Type: Router
LAN Speed: 2.5 Gigabit || 10 Gigabit
Connection Type: Wireless.
Manufacturer Warranty: 2 Year
Manufacturer PN: UDR7
GTIN: 810177160489
Manufacturer Website
$569
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| UniFi Application Suite | Network ?, Protect ?, Access ?, Talk ?, Connect ? |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD, (2) 2K, (1) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| Port Layout | 2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M/10M), 10G SFP+: 1 (10G/1G) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| Security | Stateful Firewall ?, Application-Aware Layer 7 Firewall ?, DPI & Traffic Identification ?, Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ?, Content Filtering ?, Intrusion Prevention (IPS/IDS) ?, Ad Blocking ?, IDS/IPS Signatures: 20,000+ with CyberSecure, VLAN/Subnet-based Traffic Segmentation ? |
| VPN & SD-WAN | License-Free SD-WAN ?, Site-to-Site VPN: Site Magic ?, IPsec ?, OpenVPN ?, VPN Server: Identity Endpoint One-Click VPN ?, Teleport Zero-Configuration VPN ?, WireGuard ?, OpenVPN ?, L2TP ?, VPN Client: OpenVPN ?, WireGuard ? |
| Networking | Multi-WAN Load Balancing ?, Dynamic Routing: OSPF ?, Advanced QoS ?, Multicast DNS (mDNS) ?, Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ?, Integrated RADIUS Server ?, RADIUS over TLS (RadSec) ?, Additional Internet Failover with UniFi LTE Backup ?, Internet Quality and Outage Reporting ?, MAC Address Table Size: 2,000, Policy-based WAN and VPN Routing ?, Customizable DHCP Server ?, IPv6 ISP Support ?, IGMP Proxy ? |
| Integrated WiFi | WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7), Throughput: 6 GHz: 5.7 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps, MIMO: 6 GHz: 2 x 2 (DL/UL MU-MIMO), 5 GHz: 2 x 2 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO), Antenna Gain: 6 GHz: 6 dBi, 5 GHz: 7 dBi, 2.4 GHz: 5 dBi, Max. TX Power: 6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm, Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK), Max. BSSIDs: 4 per Radio, Supported Data Rates: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40), 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160), 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160), 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Hardware | NVR Storage: Pre-installed 64GB microSD for NVR, Expansion Slot: MicroSD Card, PoE Budget: 15.4W, Max. PoE Wattage per Port by PSE: PoE: 15.4W, Voltage Range PoE Mode: 44-57V, Max. Power Consumption: 26W (Excluding PoE output), Power Method: Universal AC input, 100—240VAC, 1.5A Max, 50/60 Hz, Power Supply: AC/DC, Internal, 50W, Supported Voltage Range: 100—240V AC, Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz, System Memory: 3 GB, Weight: 1.1 kg (2.4 lb), Enclosure Material: Polycarbonate, LCM Display: 0.96" status display, Management: Ethernet, Bluetooth, LEDs: System ?, Button: (1) Factory-reset, ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV, Ambient Operating Temperature: -10 to 40° C (14 to 104° F), Ambient Operating Humidity: 5 to 95% noncondensing, NDAA Compliant ?, Certifications: CE, FCC, IC |
| Software | VLAN: 802.1Q, Guest Traffic Isolation ?, Application Requirements: UniFi Network Version 9.0.108 and later |
