MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS Graphics Card, Limit 1 per customer
Web ID: 45457
NVIDIA Series: NVIDIA RTX 5060 Ti
VRAM: 16GB GDDR7 28Gbps

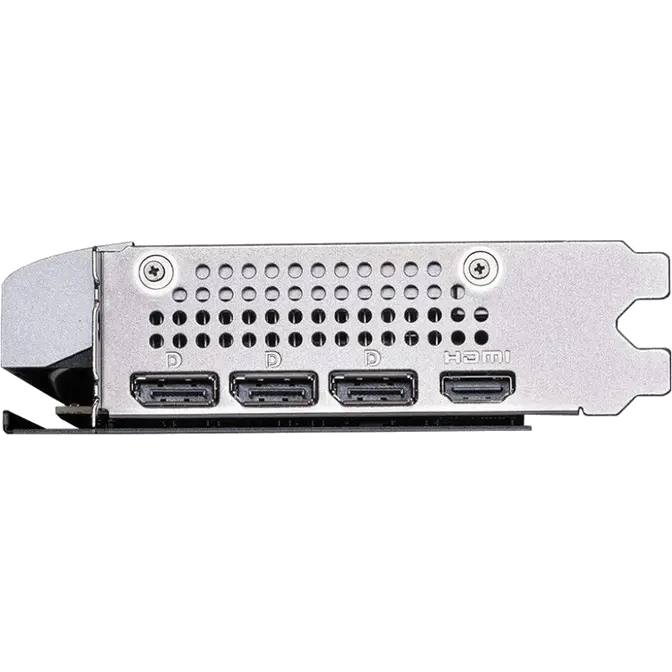

Display Output: 1 x HDMI Out || 3 x DisplayPort Out
Max. Displays: 4 Displays
PCIe: PCIe 5.0x8
GPU Technology: DLSS 4
Minimum PSU: 650 Watt
GPU Length: 230mm
Manufacturer Warranty: 3 Year
Manufacturer PN: GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS
GTIN: 824142418567
Manufacturer Website
$899
| Marketing Name | GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS |
| Model Name | G506T-16V2CP |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Y |
| Power consumption | 180 W |
| Power connectors | 8-pin x1 |
| Recommended PSU | TBD |
| Card Dimension (mm) | 227 x 127 x 41 mm |
| Weight (Card / Package) | 600 g / 862 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
