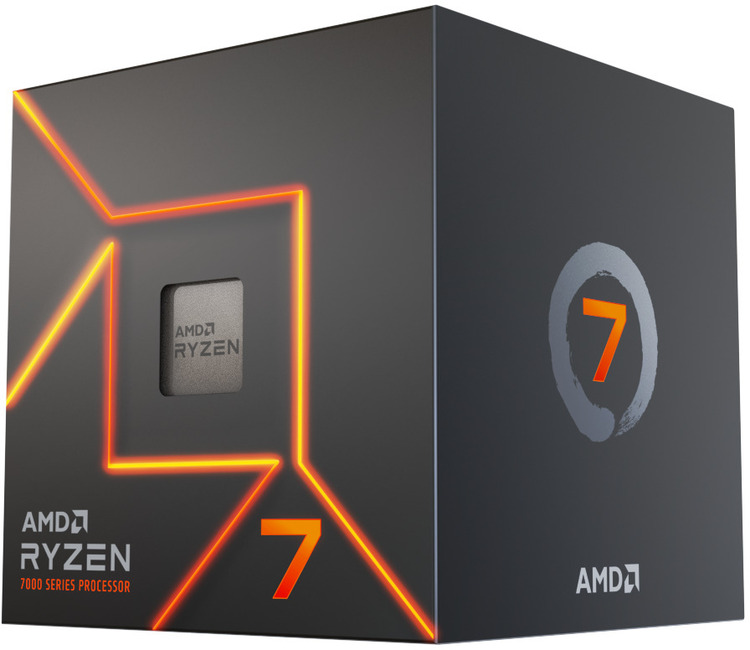

AMD AM5 Ryzen 7 7700 8 Core 3.8GHz CPU 100-100000592BOX

Web ID: 35021

Product Line: Ryzen 7 7000 Series Processor
Turbo Clock Speed: Up to 5.1GHz
Base Clock Speed: 3.8GHz
CPU Socket: AM5
# of CPU Cores: 8 Cores
# of CPU Threads: 16 Threads
Cache L2 Cache: 6MB || L3 Cache: 32MB
Memory Support: DDR5 (Dual Channel)
Integrated Graphics: AMD Radeon Graphics
Note: Includes AMD Wraith RGB Prism CPU Cooler CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: 100-100000592BOX
GTIN: 730143314497
Manufacturer Website

$489SAVE $20

amd am5 ryzen 7 7600 8 core 45ghz 100-100000592box

General Specifications

Platform

Desktop

Market Segment

Enthusiast Desktop

Product Family

AMD Ryzen™ Processors

Product Line

AMD Ryzen™ 7 Processors

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

Global

Former Codename

"Raphael AM5"

Architecture

"Zen 4"

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost ClockLearn More.



" data-placement="bottom" data-toggle="tooltip" title="">

Up to 5.3GHz

Base Clock

3.8GHz

L1 Cache

512KB

L2 Cache

8MB

L3 Cache

32MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

1

Unlocked for Overclocking

" data-placement="bottom" data-toggle="tooltip" title="">

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

X670E

X670

B650E

B650

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

AMD Wraith Prism

Max. Operating Temperature (Tjmax)

95°C

Launch Date

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support

Yes

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

1

Native SATA Ports

0

Native PCIe® Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670E

12x Gen4

AMD X670

12x Gen4

AMD B650E

8x Gen4

AMD B650

8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

System Memory Type

DDR5

Memory Channels

2

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics

Yes

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

GPU Base

400 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

Product IDs

Product ID Boxed

100-100000592BOX

Product ID Tray

100-000000592

Key Features

Supported Technologies

AMD EXPO™ Technology

AMD Ryzen™ Technologies
