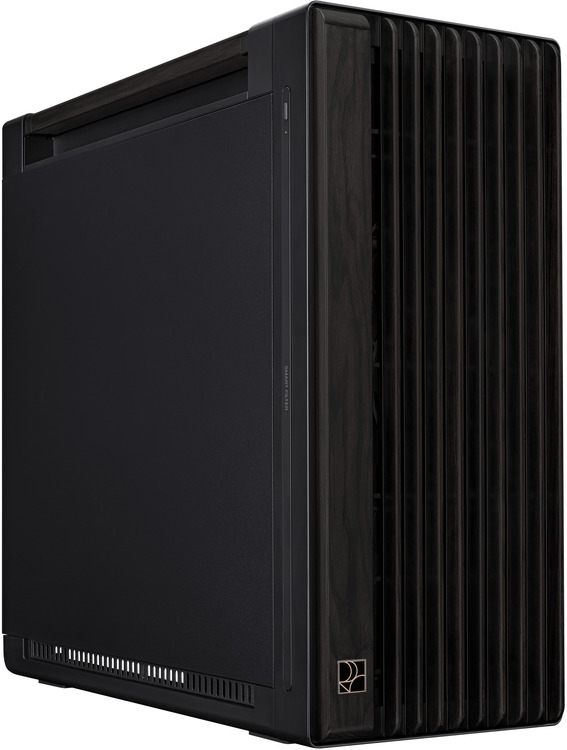

ASUS ProArt PA602 Wood Edition E-ATX Metal Panel Case Black
Web ID: 47586
Case Type: Full Tower Case
Motherboard Form Factor: Mini-ITX || Micro-ATX || ATX || E-ATX
PSU Form Factor: ATX (PSU)
Cooler Clearance (mm): 185mm
GPU Clearance (mm): 440mm
USB-A Ports: 4
USB-C Ports: 1
Drive Bays: 2.5" || 3.5"
Radiator Size: 120mm || 140mm || 240mm || 280mm || 360mm || 420mm
Colour: Black
Manufacturer Warranty: 2 Year
Manufacturer PN: ProArt PA602 Wood Edition - Metal Panel
GTIN: 197105664449
Manufacturer Website
$399
| Model | ProArt PA602 Wood Edition - Metal Panel |
|---|---|
| Case Size | Mid Tower |
| Motherboard Support | EATX (12"x10.9") ATX Micro-ATX Mini-ITX DTX Mini-DTX |
| Drive Bays | 4 x 2.5" Bay 4 x 2.5"/3.5" Combo Bay |
| Expansion Slots | 8 2 (additional vertical) |
| Front I/O Port | 2 x USB 3.2 Gen1 1 x USB 3.2 Gen 2x2 Type C 2 x USB 2.0 Fan Control Button Reset Button |
| Radiator Support (Top) | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| Cooling Support (Front) | 2 x 200 mm |
| Cooling Support (Top) | 3 x 120 mm 3 x 140 mm |
| Cooling Support (Rear) | 1 x 120 mm 1 x 140 mm |
| Pre-installed Fans (Front) | 2 x 200 mm |
| Pre-installed Fans (Rear) | 1 x 140 mm |
| Maximum CPU Cooler Height | 185 mm |
| Maximum GPU Length | 440 mm |
| Maximum PSU Length | 190 mm |
| Removable Dust Filters | Front Top Bottom |
| Maximum Cable Management Space | 30 mm |
| Dimensions | 593 x 560 x 245 mm |
| Weight | 15.8 kg |
