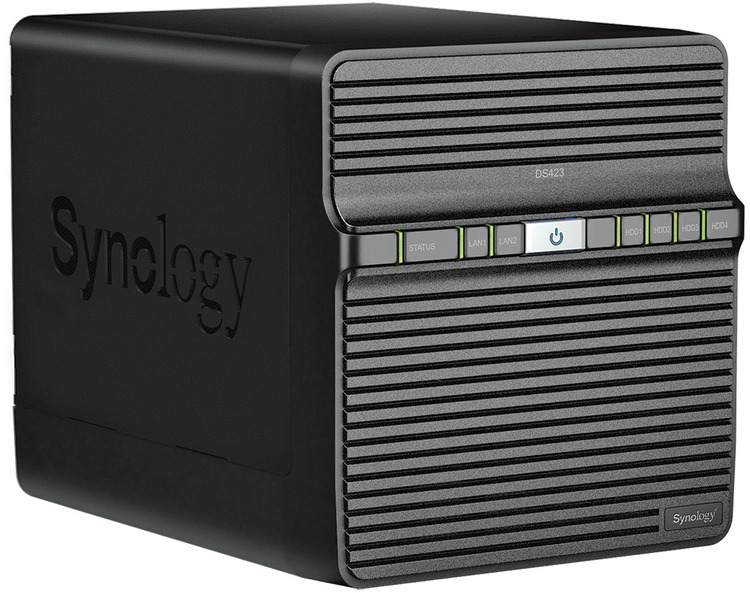

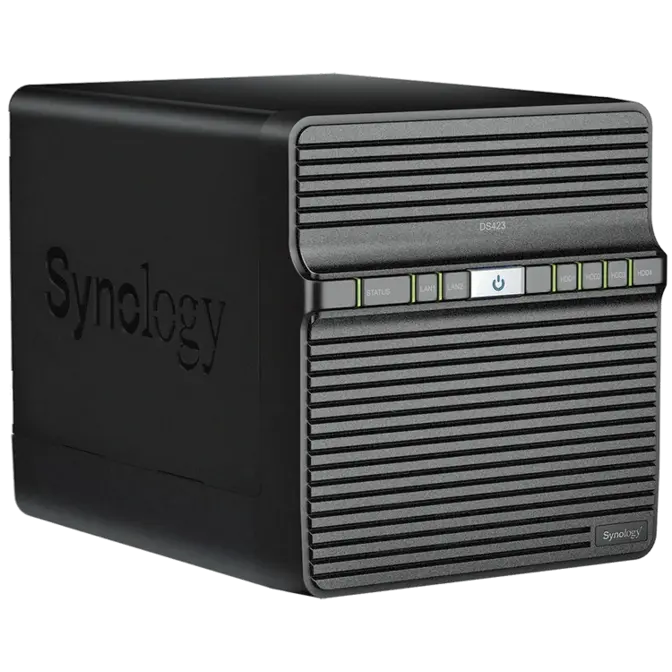

4 Bay Synology DS423 Gigabit NAS Unit

Web ID: 35769

Synology DiskStation DS423 Tower 4 Bay NAS for SOHO, 3.5" SATA HDD (0/4), M.2 (0/2), Realtek RTD1619B 4-core, 2GB RAM, 2x GbE, 2x USB-A
Manufacturer Warranty: 2 Year
Manufacturer PN: DS423
GTIN: 846504004911
Manufacturer Website

$579

synology 4 bay ds423 gigabit nas unit

CPU

CPU Model Realtek RTD1619B
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 4-core 1.7 GHz
  Hardware Encryption Engine

Memory

System Memory 2 GB DDR4 non-ECC
  Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 4
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive*
  Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

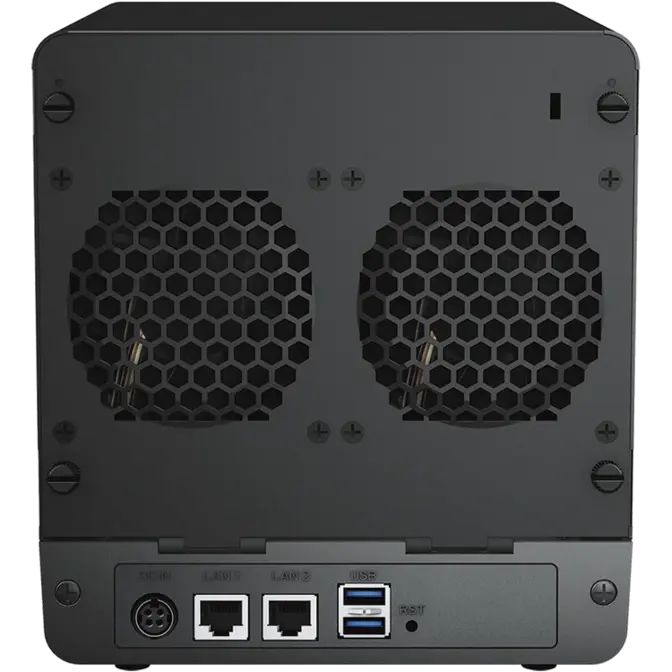

External Ports

RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 2
  Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

File System

Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT

Appearance

Size (Height x Width x Depth) 184 mm x 168 mm x 230 mm
  Weight 2.21 kg

Others

System Fan 80 mm x 80 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Brightness Adjustable Front LED Indicators
  Power Recovery
  Noise Level* 20.6 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 90 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption 32.41 W (Access)
4.97 W (HDD Hibernation)
  British Thermal Unit 110.52 BTU/hr (Access)
16.95 BTU/hr (HDD Hibernation)
  Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification

  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC

Warranty

2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
  Notes
  • Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions.
  • The warranty period starts from the purchase date as stated on your purchase receipt.

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1

Optional Accessories

  • 3.5" SATA HDD: HAT5300
  • 2.5" SATA SSD: SAT5210
  • VisualStation: VS360HD
  • Surveillance Device License Pack
