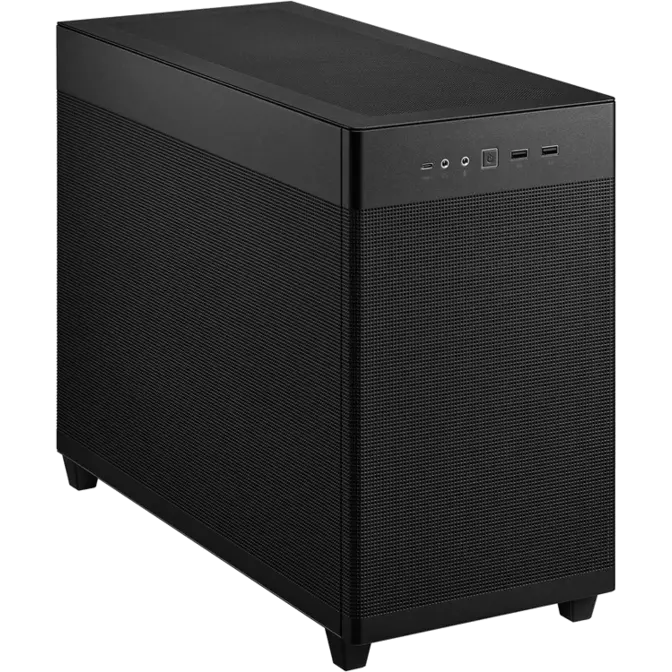

ASUS Prime AP201 MicroATX Black Case PRIME AP201-BK

Web ID: 34460

- Quasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
- Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
- Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.
- Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

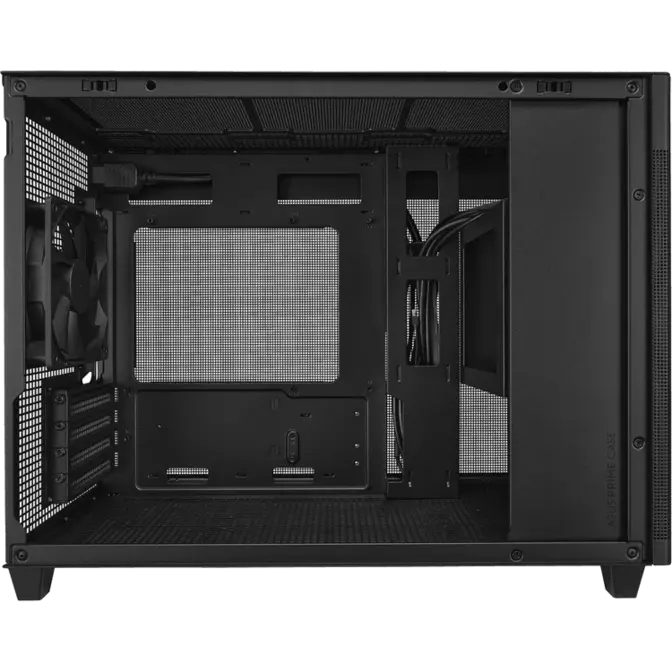

- Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.
- Front Panel USB Type-C Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: PRIME AP201-BK
GTIN: 195553771757
Manufacturer Website


asus prime ap201 microatx black case

Case Size

Small Tower

Motherboard Support


Drive Bays

1 x 2.5" Bay
3 x 2.5"/3.5" Combo Bay

Expansion Slots


Front I/O Port

1 x Headphone
1 x Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen2 Type C

Radiator Support (Top)

120 mm
140 mm
240 mm
280 mm
360 mm

Radiator Support (Rear)

120 mm

Cooling Support (Top)

3 x 120 mm
2 x 140 mm

Cooling Support (Rear)

1 x 120 mm

Pre-installed Fans (Front)


Pre-installed Fans (Rear)

1 x 120 mm

Maximum CPU Cooler Height

170 mm

Maximum GPU Length

338 mm

Maximum PSU Length

140-180 mm

Removable Dust Filters


Maximum Cable Management Space

32 mm


205 x 350 x 460 mm


5.8 Kg
