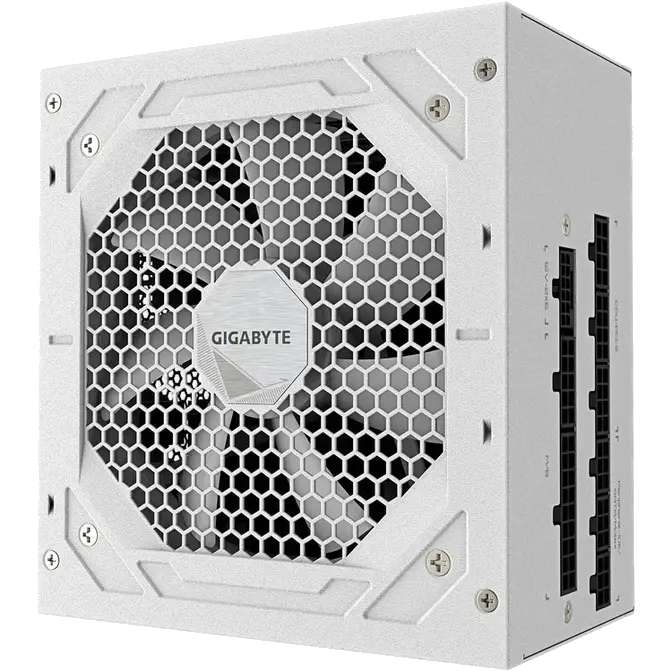

850 Watt Gigabyte GP-UD850GM PG5 ICE V2 Gold Gen5 Modular Power Supply White
Web ID: 46814
Power Supply: 850W
Certification: 80 Plus Gold
PSU Form Factor: ATX (PSU)
Colour: White
Manufacturer Warranty: 1 Year
Manufacturer PN: GP-UD850GM PG5 ICE V2
Manufacturer Website
$159
| Model | GP-UD850GM PG5 ICE |
| Type | Intel Form Factor ATX 12V v3.1 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 15-6.5A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 850W |
| Dimensions | 150 x 140 x 86 mm |
| Fan Type | 120mm Hydraulic Bearing (HYB) Fan |
| 80 PLUS Certification | Gold |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protections | OVP / OPP / SCP / UVP / OCP / OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Embossed, All white |

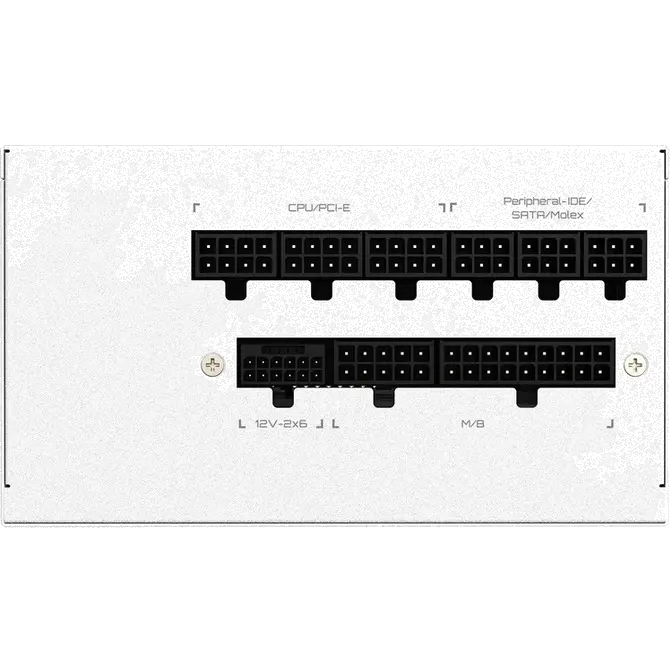

| Connectors | |
| ATX/MB 20+4 Pin | x1 : 610mm |
| CPU/EPS 4+4 Pin | x2 : 650mm + 200mm |
| PCI-e 6+2 Pin | x4 : 600mm + 150mm ×2 |
| PCI-e 12+4 Pin | x1 : 700mm |
| SATA | x8 : 600mm + 150mm + 150mm + 150mm ×2 |
| 4 Pin Peripheral + Floppy | x3 + x1 : 500mm + 150mm + 150mm + 150mm ×1 |
