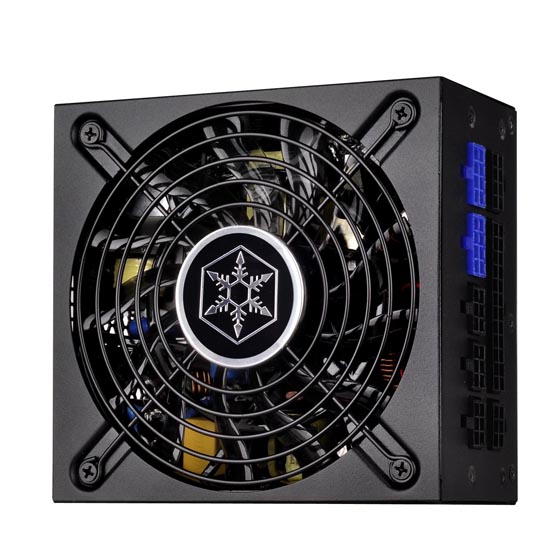

700 Watt Silverstone SFX-L SX700-LPT V1.1 80 Plus Platinum Modular Power Supply

Web ID: 26371

700W,SFX-L form factor, single +12V rails with 58.4A output, Silent 120mmFan with 0~36dBA, efficiency 80Plus Platinum certification, fully modular cable, 4x8/6pin PCI-E. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 5 Year
Manufacturer PN: SST-SX700-LPT V1.1
GTIN: 844761013271

$189
silverstone sfx-l sx700-lpt 700w 80 plus platinum psu fully modular

? SFX-L form factor for use small form factor computers

? 700W continuous power output rated for 24/7 operation

? Class-leading single +12V rail with 58.4A

? High efficiency with 80 PLUS Platinum certification

? Silent running 120mm FDB* fan with advanced semi-fanless operation

? 100% modular short cables with flexible flat arrays

? Strict ??3% voltage regulation and low ripple & noise

? Support quad PCI-E 8/6pin connectors

? High quality construction with all Japanese capacitors

silverstone sfx-l sx700-lpt 700w 80 plus platinum psu fully modular silverstone sfx-l sx700-lpt 700w 80 plus platinum psu fully modular silverstone sfx-l sx700-lpt 700w 80 plus platinum psu fully modular   silverstone sfx-l sx700-lpt 700w 80 plus platinum psu fully modular

For small form factor enthusiasts, the standard SFX power supply form factor has excellent combination of size, power, and affordability. At 100mm deep, however, the standard SFX PSU is also limited in fan size to 80mm or 92mm. While advances in engineering and components have made modern high-end SFX PSUs quieter than ever, there is still inherent limitation with these fans?? ability to dissipate heat at maximum loading conditions while maintaining satisfactory noise profile for users sensitive to higher-pitch sounds. With this in mind, SilverStone has released a ??lengthened?? variation of the SFX form factor called, SFX-L. With 30mm of added depth, a SFX-L power supply has enough room to fit a 120mm fan, thus its maximum load noise can be not only lower in intensity (via slower fan speed), but also lower in pitch (due to larger fan size).
         The SX700-LPT marks another milestone in SilverStone??s pursuit of higher quality and more capable small form factor power supplies. At 700W, it includes all features available from top of the line SilverStone PSUs such as 80 PLUS Platinum efficiency, modular flexible flat cables, all Japanese capacitors and advanced semi-fanless capability.



Remark


Model No.
SST-SX700-LPT
Max. DC Output
700W (Peak 750W)
Power density
678W per liter
Load Range
?
+3.3V +5V +12V +5VSB -12V
Max.(Amps)
22A 22A 58.4A 3.0A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
??3% ??3% ??3% ??5% ??10%
Line Reg.(%)
??1% ??1% ??1% ??1% ??1%
Ripple(mVp-p)
50mA 50mA 120mV 50mV 120mV
Color
Black?]Lead-Free Paint?^
Combined +3.3V & +5V
120W
Combined +12V
700W
Input Voltage
90V ~ 264V
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC?]PF>0.95 at full load?^
Efficiency
89% ~ 92% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0?XC ~ 40?XC
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Under voltage protection
Over Temperature Protection
Connectors
1 x 24 / 20-Pin motherboard connector?]300mm?^
1 x 8 / 4-Pin EPS / ATX 12V connector?]400mm?^
2 x 8 / 6-Pin PCIE connector?]400mm / 150mm?^
2 x 8 / 6-Pin PCIE connector?]550mm / 150mm?^
6 x SATA connector?]"300mm / 200mm / 100mm" x 2?^
3 x SATA connector?]600mm / 150mm / 150mm?^
3 x 4-Pin Peripheral connector?]300mm / 200mm / 200mm?^
1 x 4-Pin Floppy adapter connector?]100mm?^
Cooling System
Single 120mm FDB* silent fan
Form factor
Noise Level
0 ~ 36 dBA
Dimension
125 mm (W) x 63.5 mm (H) x 130 mm (D)
4.92" (W) x 2.5" (H) x 5.12" (D)
Weight
1.68 Kg
Certification
80 PLUS Platinum
Other
GPU Support list?
Compatible with ATX12V v2.4
* FDB fan is used in production batch with serial numbers starting 1650 or after.
?? Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
