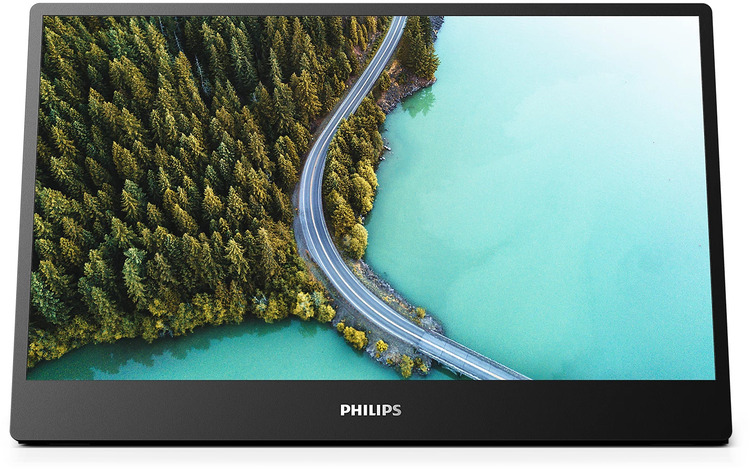

15.6" Philips 16B1P3320 FHD 60Hz Portable USB-C Monitor
Web ID: 46183
Resolution: FHD (1920x1080)
Screen Size: 15.6"
Refresh Rate: 60Hz
Response: 4ms
Panel: IPS
Display Input: Micro HDMI In || USB-C In
Display Tech: HDR
Curvature: Flat
Colour: Black
Manufacturer Warranty: 3 Year
Manufacturer PN: 16B1P3320
Manufacturer Website
$259
Picture/Display
| Attribute | Value |
|---|---|
| Panel Size | 15.6 inch / 39.6 cm |
| Aspect ratio | 16:9 |
| LCD panel type | IPS technology |
| Backlight type | W-LED system |
| Pixel pitch | 0.17925 x 0.17925 mm |
| Brightness | 250 cd/m² |
| Display colors | 16.7M (6 bits + FRC) |
| Color gamut (typical) | NTSC 46.96%, sRGB 65.51%, DCI-P3 42.8%* |
| Contrast ratio (typical) | 1200:1 |
| SmartContrast | 50,000,000:1 |
| Response time (typical) | 4 ms (Gray to Gray)* |
| Viewing angle | 178º (H) / 178º (V) @ C/R > 10 |
| Picture enhancement | SmartImage |
| Maximum resolution | 1920 x 1080 @ 60 Hz |
| Effective viewing area | 344.16 (H) x 193.59 mm (V) |
| Scanning Frequency | 30 - 85 kHz (H) / 48 - 60 Hz (V) |
| sRGB | Yes |
| Flicker-free | Yes |
| Pixel Density | 141.2 PPI |
| LowBlue Mode | Yes |
| Display Screen Coating | Anti-Glare, 3H, Haze 25% |
| EasyRead | Yes |
| HDR | HDR 10 supported |
Connectivity
| Attribute | Value |
|---|---|
| Signal Input | micro HDMI 1.4 x 1, USB-C x 2 (DisplayPort Alt mode and Power Delivery 15W)* |
| Audio (In/Out) | Audio out |
| HDCP | HDCP 1.4 (micro HDMI / USB-C) |
Power Delivery
| Attribute | Value |
|---|---|
| Max power delivery | Up to 15W (5V/3A) |
| Version | USB PD version 3.0 |
| USB-C (input) | Reversible plug connector |
Convenience
| Attribute | Value |
|---|---|
| Plug & Play Compatibility | DDC/CI, Mac OS X, sRGB, Windows 11 / 10 |
| User convenience | Power On/Off, Menu/OK, SmartImage, Input/Down |
| OSD Languages | Brazil Portuguese, Czech, Dutch, English, French, Finnish, German, Greek, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
| Other convenience | VESA mount (75x75mm) |
Stand
| Attribute | Value |
|---|---|
| Tilt | 0 ~ 90 degree |
Power
| Attribute | Value |
|---|---|
| Power supply | External, 100-240VAC, 50-60Hz |
| Off mode | 0.3 W (typ.) |
| On mode | 9 W (typ.) |
| Standby mode | 0.3 W (typ.) |
| Power LED indicator | Operation - White, Standby mode- White (blinking) |
Dimensions
| Attribute | Value |
|---|---|
| Packaging in mm (WxHxD) | 404 x 281 x 87 mm |
| Product with stand(max height) | 359 x 232 x 120 mm |
Weight
| Attribute | Value |
|---|---|
| Product with packaging (kg) | 1.92 kg |
| Product with stand (kg) | 1.03 kg |
Operating conditions
| Attribute | Value |
|---|---|
| Altitude | Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m) |
| Temperature range (operation) | 0°C to 40 °C |
| Relative humidity | 20%-80 % |
| Temperature range (storage) | -20°C to 60 °C |
| MTBF (demonstrated) | 50,000 hrs (excluded backlight) |
Sustainability
| Attribute | Value |
|---|---|
| Environmental and energy | China RoHS |
| Recyclable packaging material | 100 % |
| Specific Substances | PVC / BFR free housing |
Compliance and standards
| Attribute | Value |
|---|---|
| Regulatory Approvals | CCC, CE Mark |
Cabinet
| Attribute | Value |
|---|---|
| Finish | Texture |
| Foot | Black/Black |
| Front bezel | Black/Black |
| Rear cover | Black/Black |
Design
| Attribute | Value |
|---|---|
| Designed in Amsterdam, NL | Yes |
