Yealink EXP50 Expansion Module for T5 Series Phone

Web ID: 23424

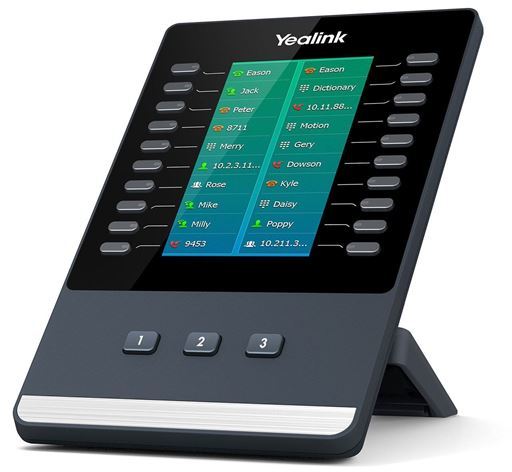

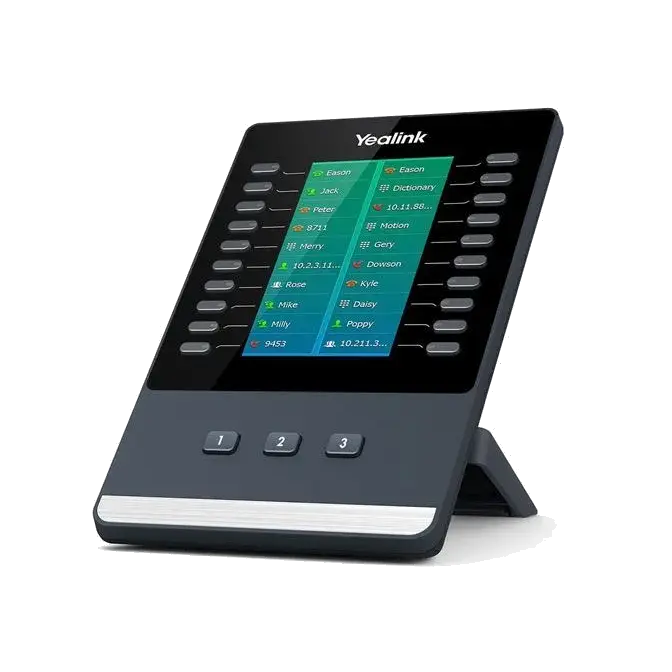

The Yealink EXP50 Color-screen Expansion Module for Yealink T5 Series IP phones, including SIP-T58V/SIP-T58A/SIP-T56A/SIP-T54S/SIP-T52S, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call handling capabilities. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: EXP50
GTIN: 6938818301672

$139


Key Features and Benefits

The Yealink EXP50 Color-screen Expansion Module for Yealink T5 Series IP phones, including SIP-T58V/SIP-T58A/SIP-T56A/SIP-
T54S/SIP-T52S, is designed to expand the functional capability of your SIP phone to a whole new level. It features a large 4.3-inch
color-screen LCD, giving you a vivid visual experience. In addition, it provides you with a simple user interface and advanced call
handling capabilities. For example, three pages of 20 flexible button shown on the display can be programmed up to 60 various
features. The functionality of Yealink T5 Series IP phones will also be extended by the EXP50, you can set the provided multifunctional
line keys as BLF, speed dial, call forward, transfer, call park, call pickup, etc. The Yealink EXP50 Color-screen Expansion Module is an
ideal solution for receptionists, administrative assistants and contact center workers and give you the ability to monitor contacts and
manage a large volume of calls with ease.


User-friendly Structure Design

With a 4.3-inch color screen, the Yealink EXP50 expansion module is intended to bring a
fresh visual experience and an easy operating experience to you. Its new design for the
Stand enables you to adjust between two lying angles easily even without disassembling
it. To ensure a higher reliability of data transmission and a higher speed of data refresh, a
USB cable is chosen to connect EXP50 expansion module to Yealink T5 Series IP phones.
Moreover, after connecting to the IP phones successfully, the remaining USB port in the
back of EXP50 can also be used to realize the phone’s extended functions, for example,
call recording via USB flash drive, etc.


Intuitive Visualization

A 4.3-inch 272x480-pixel color screen greatly enriches your visual experience. The color
icons for DSS keys, the feature of Wallpaper and Screensaver, all of these offer you a new
operating experience as well as allow you to custom the EXP50 in your own style. More
than that, it has already come ready for the Avatar Display on SFB and UC platform. Its 3
independent control keys with illuminated LED on the bottom are used for fast switching
to the corresponding page.


High Expandability

The Yealink T5 Series IP phones can be fully equipped with up to three EXP50 Color-
screen Expansion Modules, while adding 180 additional buttons at most. Three pages of
20 flexible button with dual-color LED shown on the display can be programmed up to
60 various features that can be used for speed dialing, BLF/BLA, call forward, transfer, etc.
Thus, it will help you effecctively manage high volume of concurrent calls, effortlessly
monitor calls and extremely boost personal productivity

Yealink EXP50 Specifications

• 4.3" 272 x 480-pixel color screen
• Color icons for rich visual experience
• 20 physical keys on each page with
dual-color LEDs
• Three independent control keys with
illuminated LED for fast switching pages
• Supports up to 3 modules daisy-chain
• Stand with 2 adjustable angles


Display

• 4.3" 272x480-pixel color display with backlight
• 16 bit depth color
• Three page views are possible
• Different color icons for each function shown on the


LCD

Features Keys and Indicator
• 20 physical keys each with a dual-color LED
• 40 additional keys through page switch
• 3 independent control keys with illuminated LED are
used for fast switching pages
• Programmable for shared line, BLF List, call park,
conference, forward, group pickup, group listening,
LDAP, XML Browser...


Features

• Wallpaper
• Screensaver
• Power saving
• Avatar Display on SFB and UC platform (pending)
• Stand with 2 adjustable angles
• For support of two or three Expansion Modules, an
external Yealink power adapter (5V/2A) is required.
• Up to three EXP50 can be attached on any Yealink
T5 Series IP phones
• USB port (2.0 compliant)
for data in and out
• USB port (2.0 compliant) for:
wired/wireless USB headset
Wi-Fi through WF40,
USB call recording through USB flash drive
• Dimension (W*D*H*T):
196.5mm*124.0mm*137.5mm*42.6mm
• Applies to Yealink T5 Series
(SIP-T58V/SIP-T58A/SIP-T56A/SIP-T54S/SIP-T52S)
• Operating temperature: -10~50°C (+14~122°F)
• Operating humidity: 10-95%
Package Features
• Package content:
- Yealink EXP50 Color-screen Expansion


Module

- Stand
- Connecting Sheet
- USB Cable
- Screwdriver
- Screws
- Quick Start Guide
• Qty/CTN: 10 PCS
• N.W/CTN: 6.0 kg
• G.W/CTN: 6.598 kg
• Giftbox size: 212mm*148mm*90mm
• Carton Meas: 480mm*310mm*228mm
