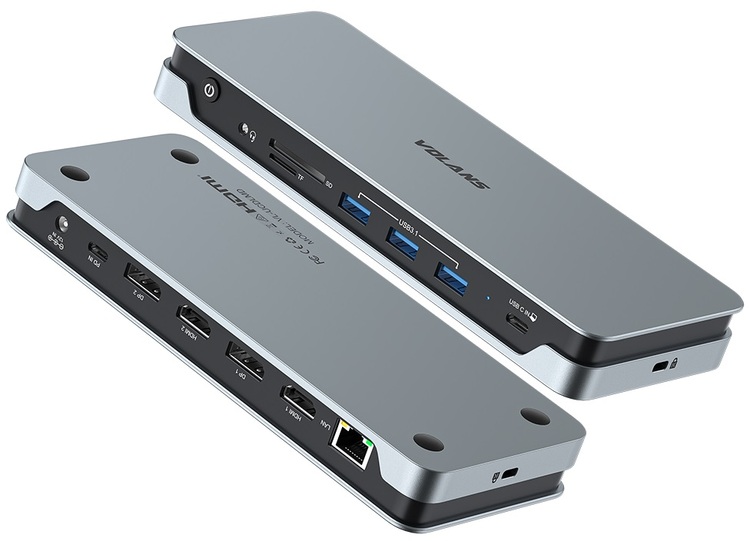

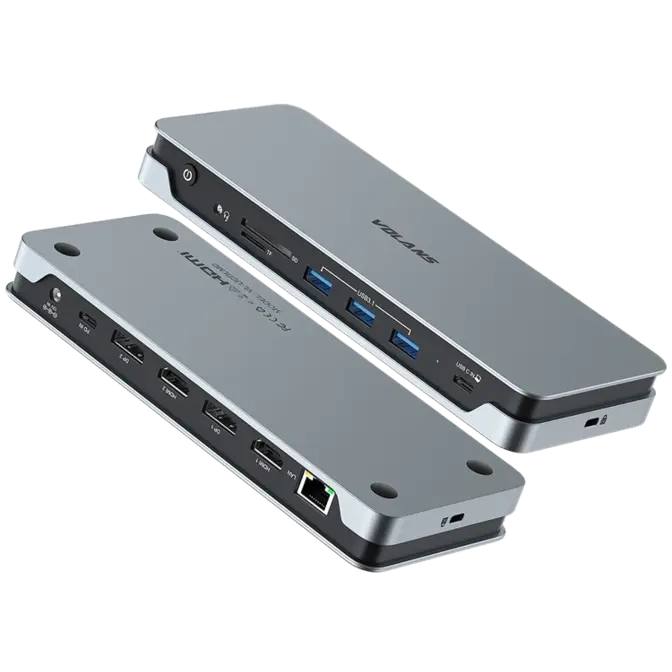

VOLANS VL-UCDLMD Aluminium 14-in-1 Quadruple 4K Display USB-C Docking Station

Web ID: 34990

2 x 4K@60Hz DisplayPort , 2 x 4K@60Hz HDMI, 3 x USB-A 3.1 Gen2 (10G) , 1 x USB-C PD 100W. 1 x 3.5mm Combo Jack, 1 x Gigabit Ethernet Port,1 x SD Card Reader (SD 4.0), 1 x Micro SD Card Reader (SD 4.0). Compatible with MAC M1/M2 Chipset. Up to 100W power to laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops.
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-UCDLMD
Manufacturer Website

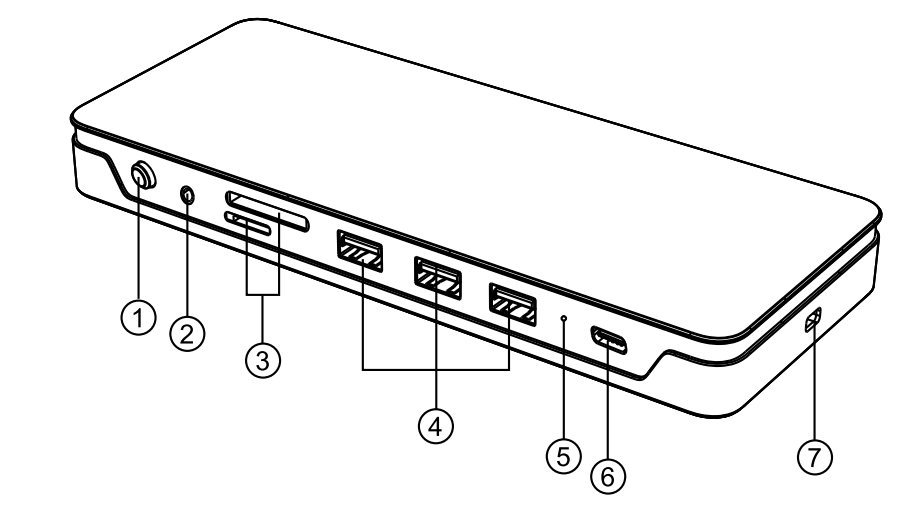

1. Power Switch, press the ON/OFF button for 3 seconds to start/shut down

2. 3.5mm Audio & Microphone (Only support US standard)

3. SD 2.0 & Micro SD Card Reader (Data transfer rates are subject to the speed of the memory card itself and your computer’s USB ports. SD and Micro SD can’t read at the same time.)

4. 3×USB3.1 Gen 2 support 10Gbps transfer rate,5V1.5A

5. LED indicator

6. USB-C host input

7. Kinsington lock slot

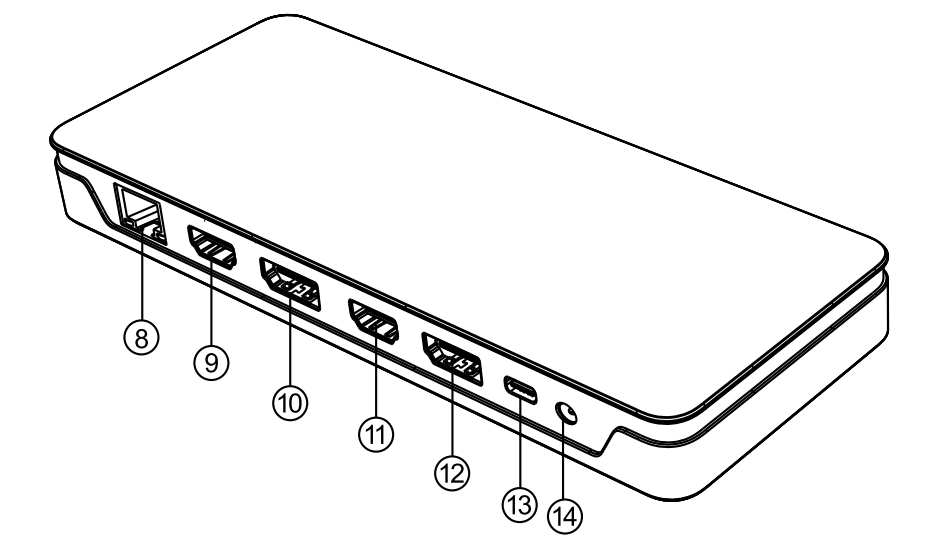

8. RJ45 Gigabit Ethernet:1000Mbps

9/10. HDMI 1 and DP 1: up to 4K@60Hz (DisplayLink signal channel)

11/12.HDMI 2 and DP 2: up to 4K@60Hz (DP signal channel)

13.PD 3.0: support up to 100W fast charging

14.DC IN 12V power.
