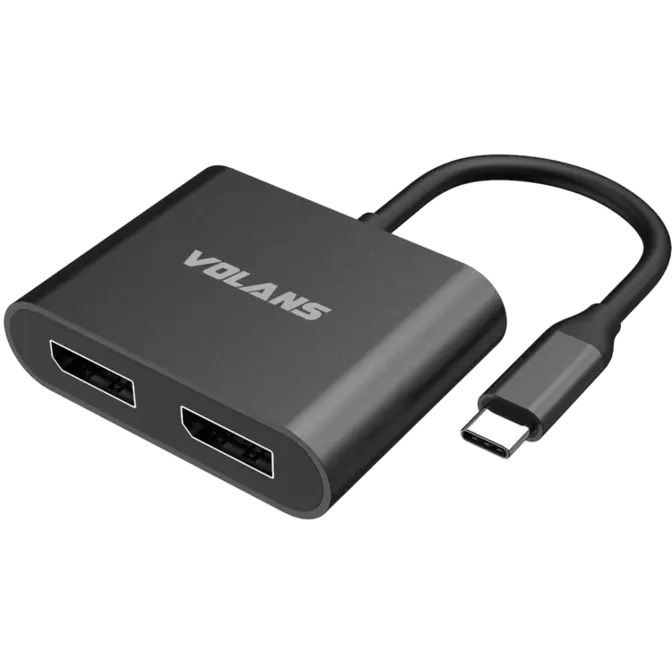

Volans VL-UC2DP Aluminium USB Type-C to Dual DisplayPort Adapter

Web ID: 34344

This DisplayPort adapter supports DisplayPort 1.4 specification for the higher-requirement computers and monitors with up to 8K@60Hz or 4K@120Hz performance. Support Multi-Stream Transport (MST), streaming to extra dual independent displays up to 4K@60Hz. USB-C connector allows you to connect with a computer or a tablet which equipped Thunderbolt 3 port or USB-C port that supports DisplayPort Alt Mode (DP Alt Mode).
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-UC2DP
GTIN: 783495871514
Manufacturer Website

  • This DisplayPort adapter supports DisplayPort 1.4 specification for the higher-requirement computers and monitors with up to 8K@60Hz or 4K@120Hz performance.
  • Support Multi-Stream Transport (MST), streaming to extra dual independent displays up to 4K@60Hz.
  • Windows OS is able to turn on the Screen Mirroring and Extend on the external monitors. MacOS does not support MST, a single extra independent display can be streaming on the external monitors.
  • USB-C connector allows you to connect with a computer or a tablet which equipped Thunderbolt 3 port or USB-C port that supports DisplayPort Alt Mode (DP Alt Mode).
  • Support HDCP 2.2, meet the requirements of Ultra HD Netflix or Amazon Prime Video and more.
  • Portable with a diminutive dimension.
  • Bus-powered, no power adapter needed.
  • Plug and play, no driver required.



WARRANTY INFORMATION
Warranty 1 Year
HARDWARE
8K Support Yes
Bus Type USB-C
Chipset ID VL100+RTD2186
Displays Supported 2
PERFORMANCE
Maximum Digital Resolutions USB-C DP1.4: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST): 4K@60Hz
USB-C DP1.2: Dual Monitor (SST): 4K@60Hz | Dual Monitor (MST): 4K@30Hz
MST mode only compatible with Windows OS.
Only SST is supported on Mac OS.
CONNECTOR(S)
Connector Type(s) 1 – USB Type-C (24 pin) USB 3.0 Male
  2 – DisplayPort 1.4 Female
SPECIAL NOTES / REQUIREMENTS
Note Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports DP alt mode.
  8K@60Hz or 4K@120Hz with DisplayPort 1.4
OS Suport Windows7/8/10/11, Google Chrome OS, Mac OS X Yosemite, Mac OS X El Capitan,Mac OS sierra or above.
POWER
Power Source USB-Powered
ENVIRONMENTAL
Humidity 0~90% RH (Non-condensing)
Operating Temperature 0°C to 40°C
Storage Temperature 5°C to 45°C
PHYSICAL CHARACTERISTICS
Color Black
Enclosure Type Aluminium
WHAT’S IN THE BOX
Included in Package 1 – VL-UC2DP
1- User Manual
