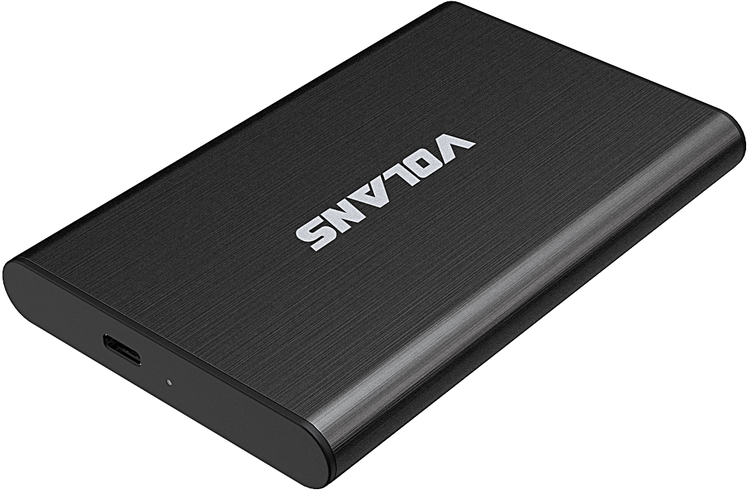

Volans VL-UC25S 2.5" USB 3.1 Type-C HDD Enclosure
Web ID: 31925
Supports 2.5 inch SATA I/II/III HDD (9.5mm) up to 6TB
SuperSpeed USB 3.1 Interface, backwards compatible with USB 3.0/2.0/1.1
Easy installation allow to mount Hard Drive in seconds
Plug and play and hot-swappable, no additional driver needed
LED light indicates power and activity status
Dimensions: 120 (L) x 77 (W) x 13(H)
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-UC25S
GTIN: 783495557234
Manufacturer Website
$20
Specification
| WARRANTY INFORMATION | |
|---|---|
| Warranty | 1 Year |
| HARDWARE | |
| Chipset ID | JMS576 |
| Compatible Drive Types | SATA |
| Drive Installation | Tool-less |
| Drive Size | 2.5in |
| Fan(s) | No |
| Number of Drives | 1 |
| PERFORMANCE | |
| Max Drive Capacity | Currently tested with up to 6TB hard drives |
| RAID | No |
| Type and Rate | 6Gbps (Max) |
| UASP Support | Yes |
| CONNECTOR(S) | |
| Drive Connectors | 1 – SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | 1 – USB-C Female |
| SOFTWARE | |
| OS Compatibility | Windows/Mac/Linux |
| INDICATORS | |
| LED Indicators | 1 – Power & Activity |
| POWER | |
| Power Source | Type-C Port Power Supply |
| ENVIRONMENTAL | |
| Humidity | 10%RH ~ 95%RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 65°C (14°F to 149°F) |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| Enclosure Type | Aluminium |
| Max Drive Height | 9.5 mm |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – USB-C to 2.5″ SSD/HDD Enclosure |
| 1 – USB-C (M) to USB-A (M) Cable | |
| 1 – USB-A (F) to USB-C (M) adapter | |
| 1 – Install Guide | |
