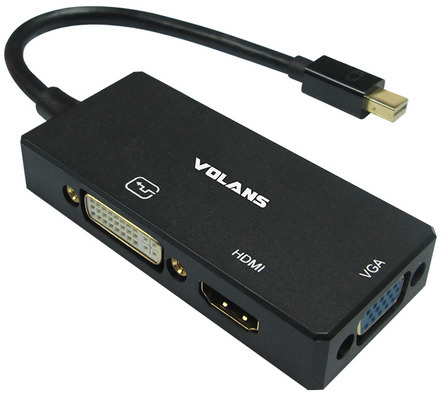

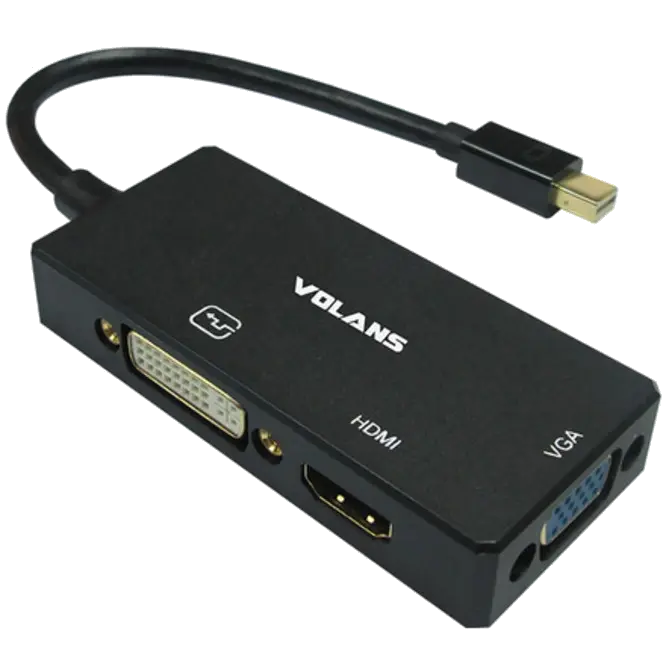

Volans VL-MDPHDV-4K Mini DisplayPort to Female HDMI DVI VGA Adapter

Web ID: 23416

This 3-in-1 travel adapter offers a portable solution for connecting your Mini DisplayPort computer to a VGA, DVI or HDMI (4K) display. The adapter is VESA certified, to ensure compatibility with your mDP computer.
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-MDPHDV-4K
GTIN: 647267999922
Manufacturer Website

Features

All-in-one video connectivity, with travel in mind

Instead of filling your laptop bag with different converters for different displays, this 3-in-1 adapter gives you all the video outputs you’ll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop’s Mini DisplayPort port to any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type. With support for multiple video outputs and a lightweight, small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.



Astonishing picture quality with support for Ultra HD 4K

The HDMI output on this adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support a high-definition maximum resolution up to 1920 x 1200, so you can still enjoy excellent video quality. The travel adapter is compatible with mDP Intel® Thunderbolt™ devices that are capable of outputting a DisplayPort signal.

WARRANTY INFORMATION
  Warranty 1 Year
HARDWARE
  Adapter Style Adapters
  Audio Yes
  Converter Type Travel A/V Adapters
  Output Signal HDMI
    DVI-D (DVI Digital)
    VGA
PERFORMANCE
  Audio Specifications HDMI output – 7.1 surround sound
  General Specifications Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
  Maximum Analog Resolutions 1920 x 1200
  Maximum Digital Resolutions 3840 x 2160
  Supported Resolutions HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720



DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720

  Video Revision DisplayPort 1.2
  Wide Screen Supported Yes
CONNECTOR(S)
  Connector A 1 – Mini-DisplayPort (20 pin) Male Input
  Connector B 1 – HDMI (19 pin) Female Output
    1 – VGA (15 pin, High Density D-Sub) Female Output
    1 – DVI-D (25 pin) Female Output
SPECIAL NOTES / REQUIREMENTS
  Note The HDMI port is a passive port.
The DVI-D is a passive port.
The VGA port is an active port.
ENVIRONMENTAL
  Humidity 40%-50%RH
  Operating Temperature 0°C to 70°C (32°F to 158°F)
  Storage Temperature -10°C to 80°C (14°F to 176°F)
WHAT’S IN THE BOX
  Included in Package 1 – VL-MDPHDV-4K



2 – User Manuel
