| Warranty Information | |
|---|---|
| Warranty | 1 Year |
| Hardware | |
| 4K Support | Yes |
| Bus Type | USB-C |
| Chipset ID | FL7102+ITE6564 |
| Displays Supported | 2 |
| Fast-Charge Port(s) | 1 |
| Industry Standards | USB 3.0 – Backward compatible with USB 2.0 and 1.1 |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) |
| Maximum Digital Resolutions | 4K@30Hz (HDMI) 1080P@60Hz (VGA) |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| UASP Support | Yes |
| Connector(s) | |
| Connector Type(s) | 1 – USB Type-C (24 pin) USB 3.0 Male |
| 1 – HDMI (19 pin) Female | |
| 1 – VGA Female | |
| 1 – USB Type-A (9 pin) USB 3.0 Female | |
| 1 – USB Type-C (24 pin) USB 3.0 Female — Power Delivery Only, No Data Transfer | |
| Special Notes / Requirements | |
| Note | Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode. |
| The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. | |
| A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) | |
| USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | |
| OS Support | Windows7/8/10, Google Chrome OS, Mac OS X Yosemite, Mac OS X El Capitan,Mac OS sierra or above |
| Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter). | |
| Power | |
| Power Delivery | 60W |
| Power Source | USB-Powered |
| Environmental | |
| Humidity | 0~90% RH (Non-condensing) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminium |
| What’s in the Box | |

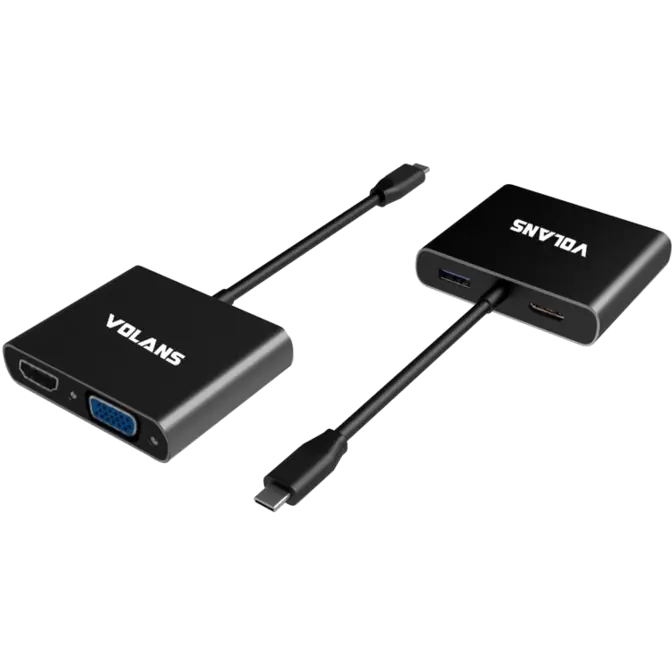

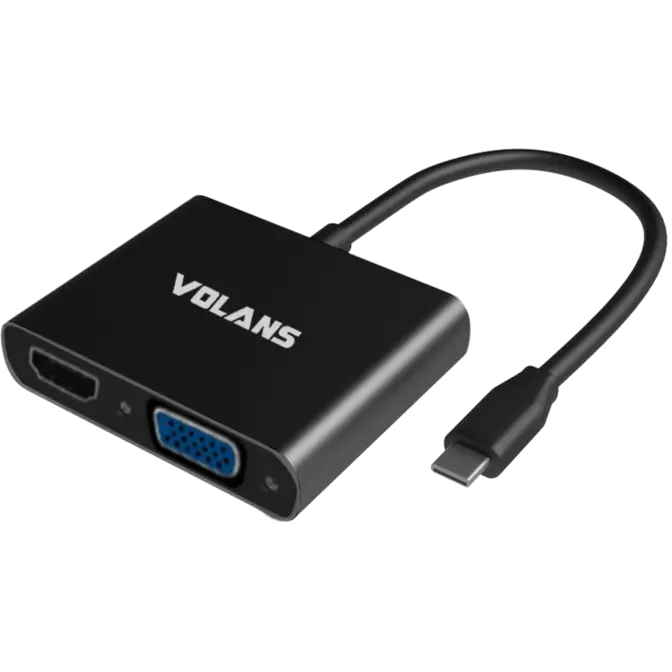

| Included in Package | 1 – VL-UCVH3C 1- User Manual |
