| WARRANTY INFORMATION |
| |
Warranty |
1 Year |
| HARDWARE |
| |
4K Support |
Yes |
| |
Bus Type |
USB-C |
| |
Chipset ID |
VL102+PS186+RTS8411+RTL8153+FE8.1+GL823K*2 |
| |
Displays Supported |
1 |
| |
Fast-Charge Port(s) |
Yes |
| |
Industry Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 – Backward compatible with USB 2.0 and 1.1 |
| PERFORMANCE |
| |
Auto MDIX |
Yes |
| |
Compatible Networks |
10/100/1000 Mbps |
| |
Full Duplex Support |
Yes |
| |
Maximum Data Transfer Rate |
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex) |
| |
Maximum Digital Resolutions |
4K@60Hz |
| |
Type and Rate |
USB 3.0 – 5 Gbit/s |
| |
UASP Support |
Yes |
| CONNECTOR(S) |
| |
Connector Type(s) |
1 – USB Type-C (24 pin) USB 3.1 Male |
| |
|
1 – HDMI2.0 (19 pin) Female |
| |
|
1 – RJ-45 Female |
| |
|
1 – SD Card Slot (USB2.0) |
| |
|
1 – Micro SD Card Slot (USB2.0) |
| |
|
3 – USB Type-A (9 pin) USB 3.1 Female |
| |
|
1 – USB Type-C (24 pin) USB 3.1 Female |
| SOFTWARE |
| |
OS Compatibility |
Windows® 7, 8, 8.1, 10
Mac OS® 10.9 to 10.13
Chrome OS™ |
| SPECIAL NOTES / REQUIREMENTS |
| |
Note |
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP alt mode. |
| |
|
The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. |
| |
|
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) |
| |
|
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. |
| |
System and Cable Requirements |

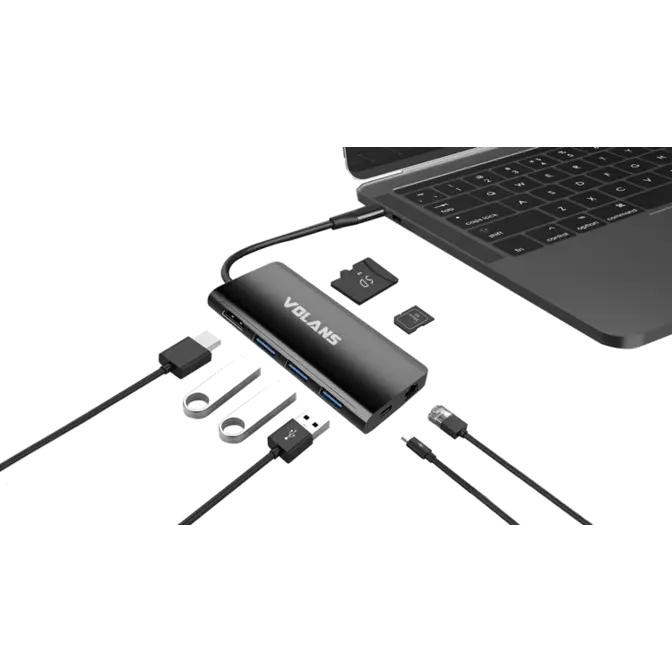

A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 3.0 and DP alt mode) |
| |
|
Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter) |
| POWER |
| |
Power Delivery |
100W |
| |
Power Source |
USB-Powered |
| ENVIRONMENTAL |
| |
Humidity |
0~85% RH (Non-condensing) |
| |
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| |
Storage Temperature |
-10°C to 65°C (14°F to 149°F) |
| PHYSICAL CHARACTERISTICS |
| |
Color |
Black |
| |
Enclosure Type |
Aluminium |
| WHAT’S IN THE BOX |
| |
Included in Package |

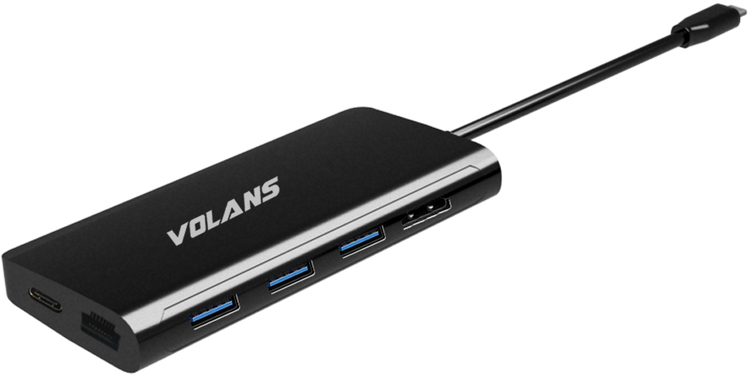

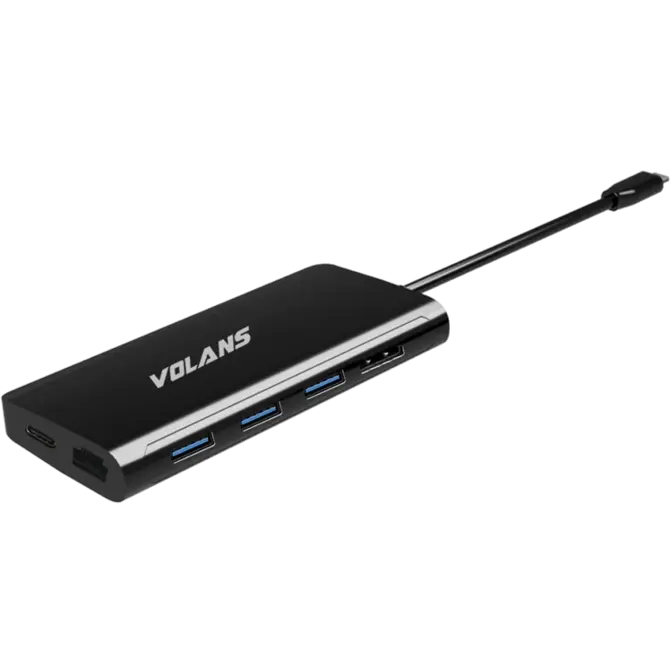

1 – VL-UCH3CLR |
| |
|
1 – quick-start guide |
