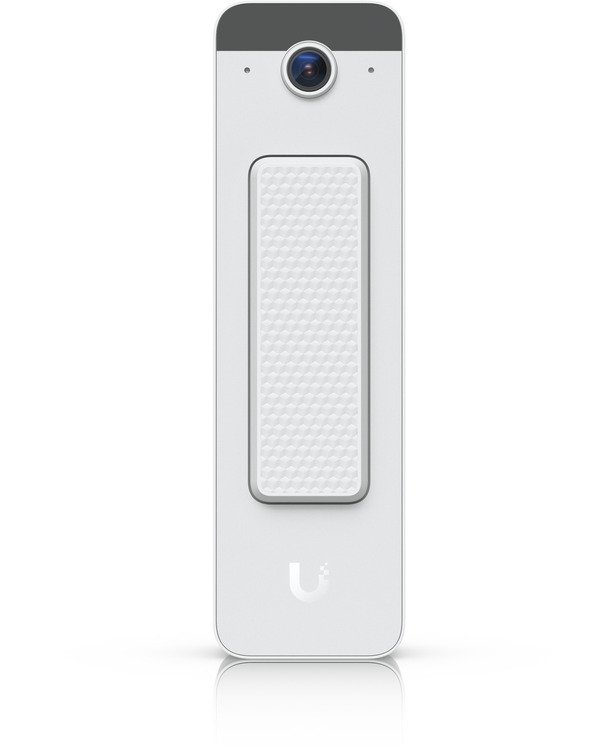

Ubiquiti UVC Doorbell Lite PoE Two-Way Doorbell White
Web ID: 48320
Compact PoE video doorbell with two-way audio and versatile mounting options.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: UVC-Doorbell-Lite-W
Manufacturer Website
$219
Overview
| Specification | Details |
|---|---|
| Dimensions | 137 x 40 x 26.4 mm (5.4 x 1.6 x 1") |
| IR Night Vision | 5 m (16 ft) |
| Smart Detections (People, Vehicles, Animals) | ? |
| Resolution | 5MP |
| Field of View | H: 95.8°, V: 131.2°, D: 175.9° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 |

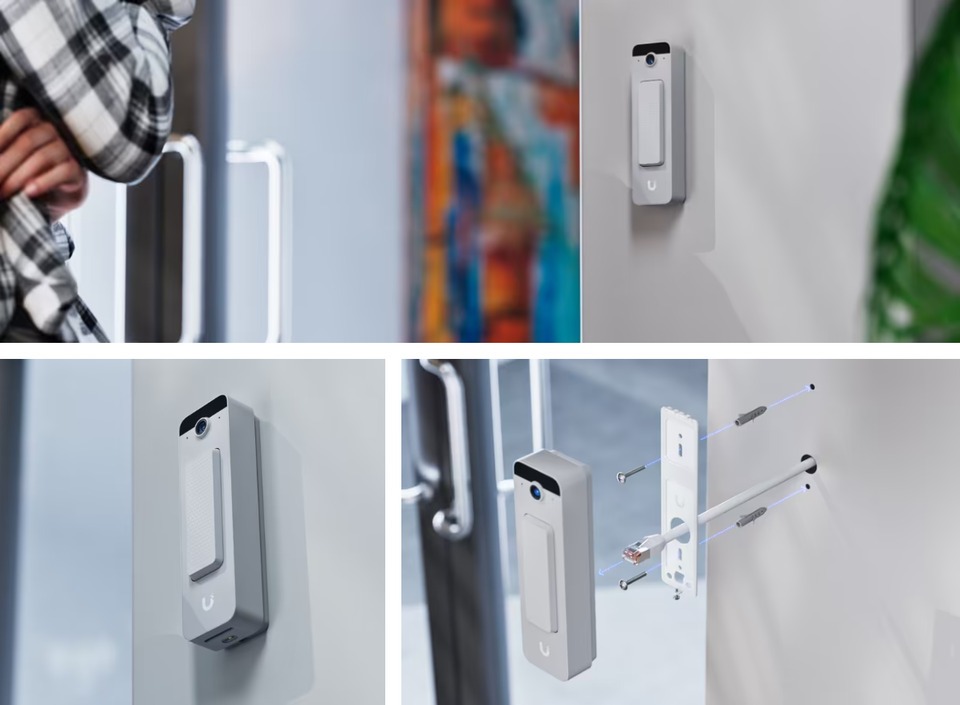

| Mounting | Wall, 20° wedge (Included); Gang box, junction box (Optional) |
Performance
| Specification | Details |
|---|---|
| Networking Interface | 10/100 MbE port |
| Video Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 24 FPS |
| Resolution | 5MP 1920 x 2560 (3:4) |
| Optics Sensor | 1/2.7" 5MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Specification | Details |
|---|---|
| Max. Power Consumption | 8W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | Device: 142 g (5 oz); With flat wall mount: 165 g (5.8 oz); With 20° wedge mount: 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Formed sheet metal |
| Button | (1) Ring button; (1) Factory-reset |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | ? |
| Certifications | CE, FCC, IC |
