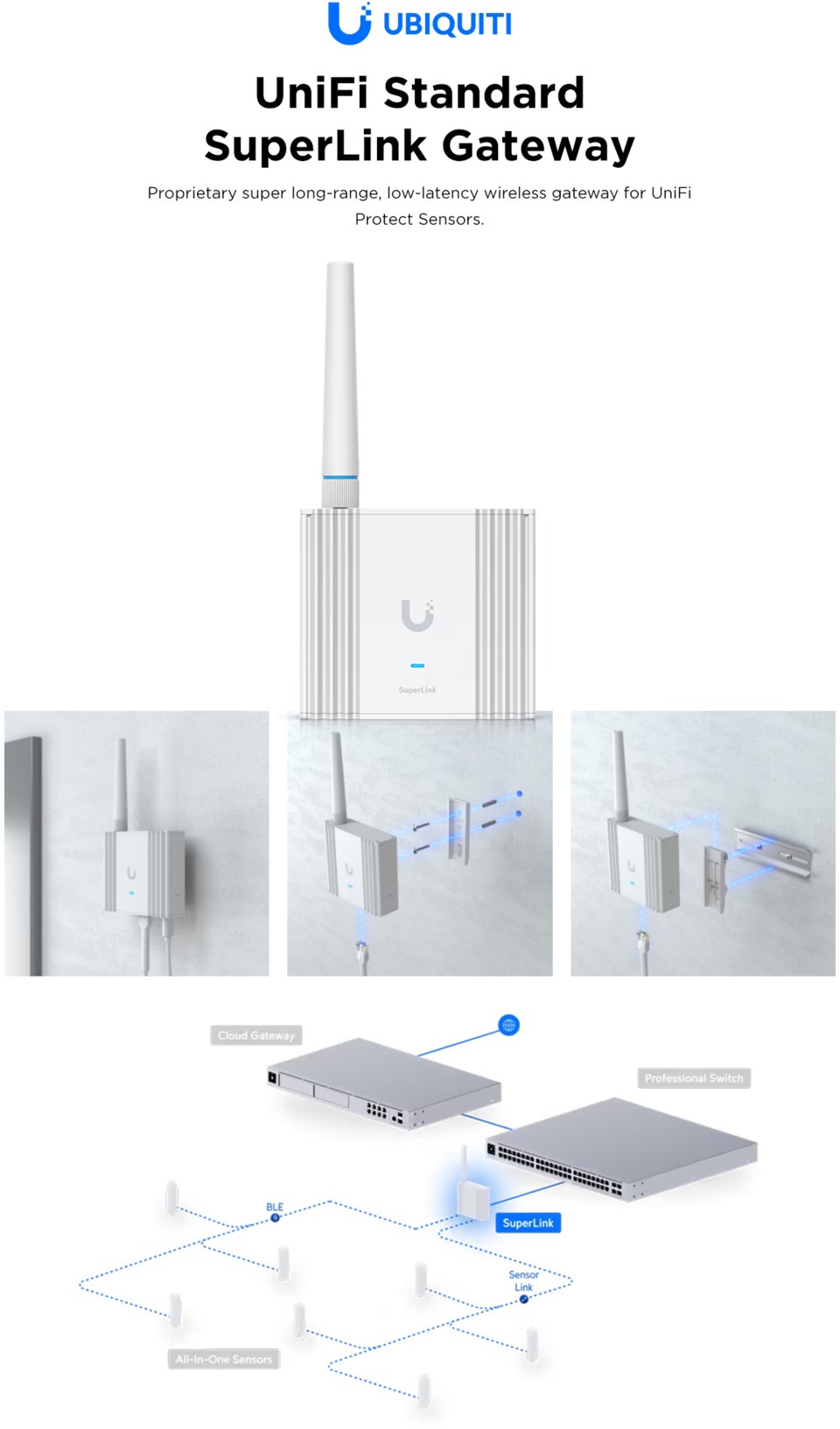

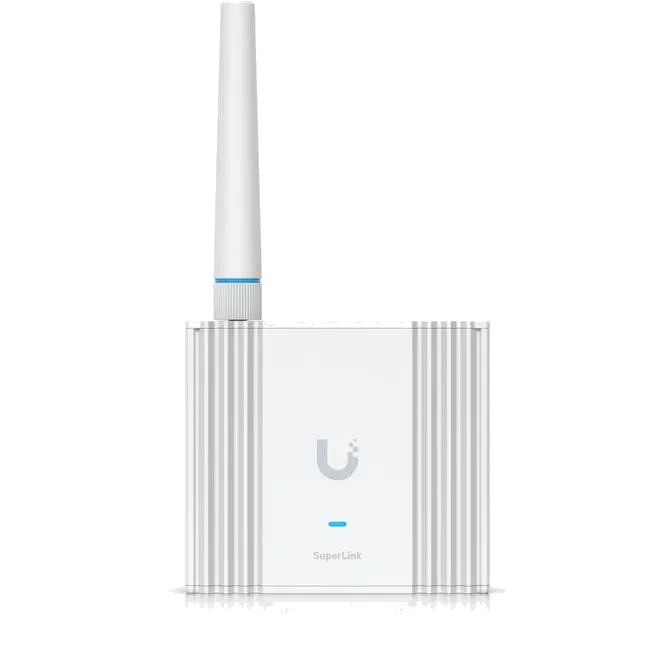

Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
| Overview | Dimensions With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |

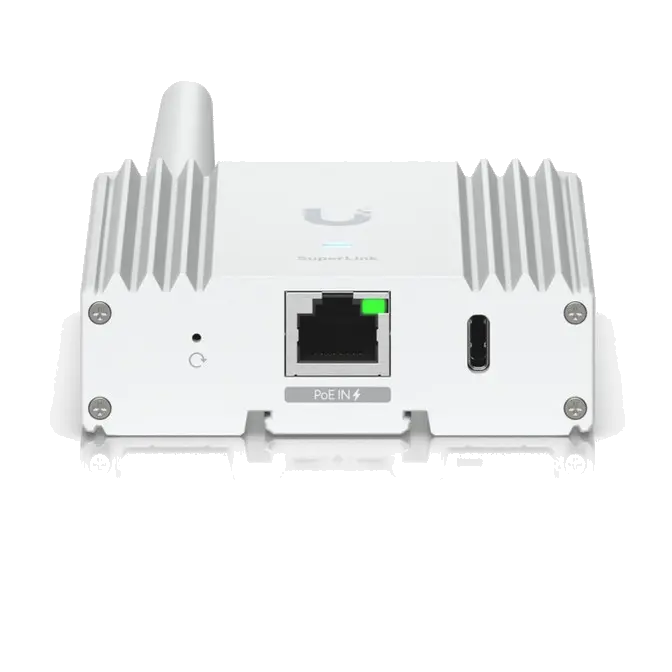

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth 5.2 SuperLink (Proprietary) |
| Operating Frequency | Bluetooth: 2400–2480 MHz SuperLink: US 915.6–927.6 MHz; EU 865.1–869.5 MHz |
| Antenna Gain | Bluetooth: 3 dBi SuperLink: 2 dBi |
| Max. TX Power | Bluetooth: 10 dBm SuperLink: 27 dBm |
| Max. Range | Bluetooth: Up to 100 m (328 ft) SuperLink: 2 km (1.2 mi) |
| Max. Client Count | Bluetooth: 7 SuperLink: 96 |
| Max. Power Consumption | 3.4W |
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Antenna Connector | (1) RP-SMA female |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ? |
| Software | Application Requirements Web Application: UniFi Protect Mobile App: UniFi Protect iOS and Android |
1 Year
Manufacturers Warranty
