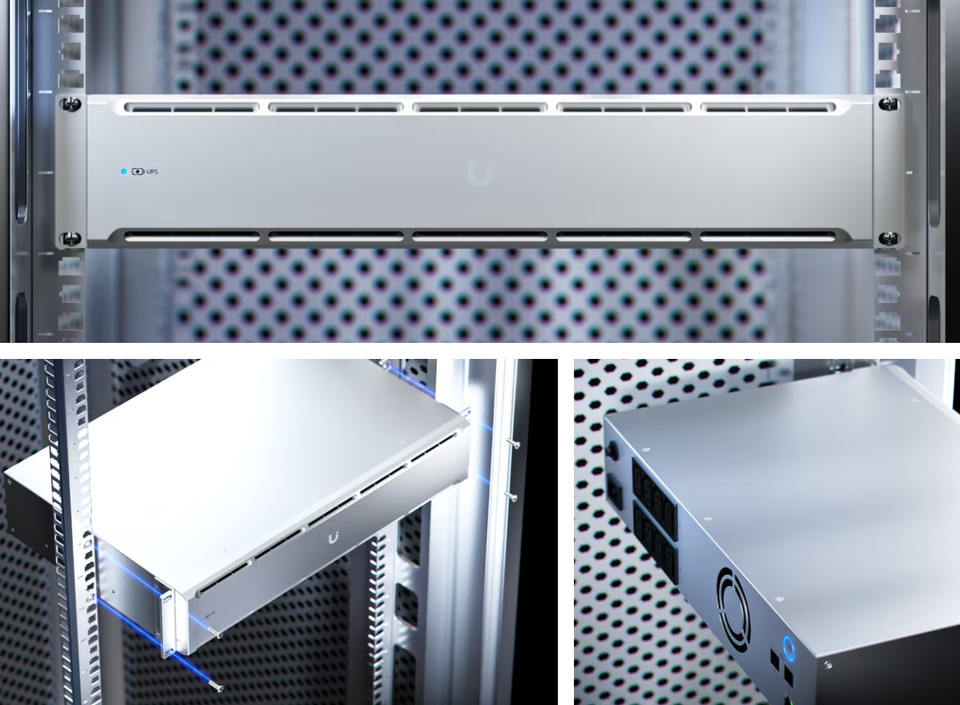

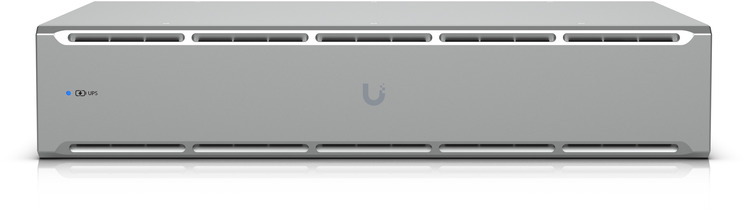

Ubiquiti UniFi UPS 2U 1500VA Managed Rackmount UPS
Web ID: 48361
UniFi managed 1.44kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: UPS-2U
Manufacturer Website
$599
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4") |
| Weight | 13.7 kg (30.2 lb) |
| Enclosure Material | Galvanized steel |
| Form Factor | Rack mount (2U) |
| Weatherproofing | IP20 |
| Hardware | |
| Management | Ethernet |
| Networking Interface | (1) 100/10 MbE port for network connection (2) GbE ports for surge in/out |
| Power | (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (4) Battery backup/surge protection: C13 (4) Surge protection: C13 |
| Capacity | 1,500VA / 1,000W |
| Type | Line interactive |
| Input Voltage Range | 170—280V AC |
| Power Method | (1) TN system, 220—240V AC, 10A Max., 50/60 Hz |
| Nominal Input Voltage | 230V AC |
| Output Voltage | 220—240V AC |
| Nominal Output Voltage | 230V AC |
| Frequency Range | AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz |
| AC Voltage Regulation | ±10% (Battery mode) |
| Transfer Time | 6 ms typical; 10 ms max. (Battery mode) |
| Wave Form | Simulated sine wave (Battery mode) |
| Battery Type | (2) Lead Acid 12V, 9Ah |
| Runtime | Full load: 2.3 min Half load: 8 min |
| Battery Charging Time | 6–8 hours recovery to 90% capacity |
| Overload at On-Line Mode | 110% 5 min go to fault 120% go to fault immediately |
| Overload at Battery Mode | 110% shutdown in 5 sec 120% shutdown immediately |
| Short Circuit Protection at On-Line Mode | Breaker, 250V AC, 10A |
| Output Short-Circuit Current | Ipeak 444.0A Irms 223.1A |
| Buttons | (1) Power (1) Factory reset |
| LEDs Status | Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery |
| Operating Altitude | 3,000 m (1.9 mi) |
| Operating Environment | Pollution Degree 2 |
| Ambient Storage Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 0 to 95% noncondensing |
| Certifications | CE, IEC 62040-1 |
