Overview

Specification	Details
Dimensions	180 x 109 x 33.8 mm (7.1 x 4.3 x 1.3")
Networking Interface	(1) 2.5 GbE RJ45 port 5G NR and LTE radio
SIM	(1) Nano SIM (1) Nano-SIM or eSIM
PoE Interface	(1) PoE input

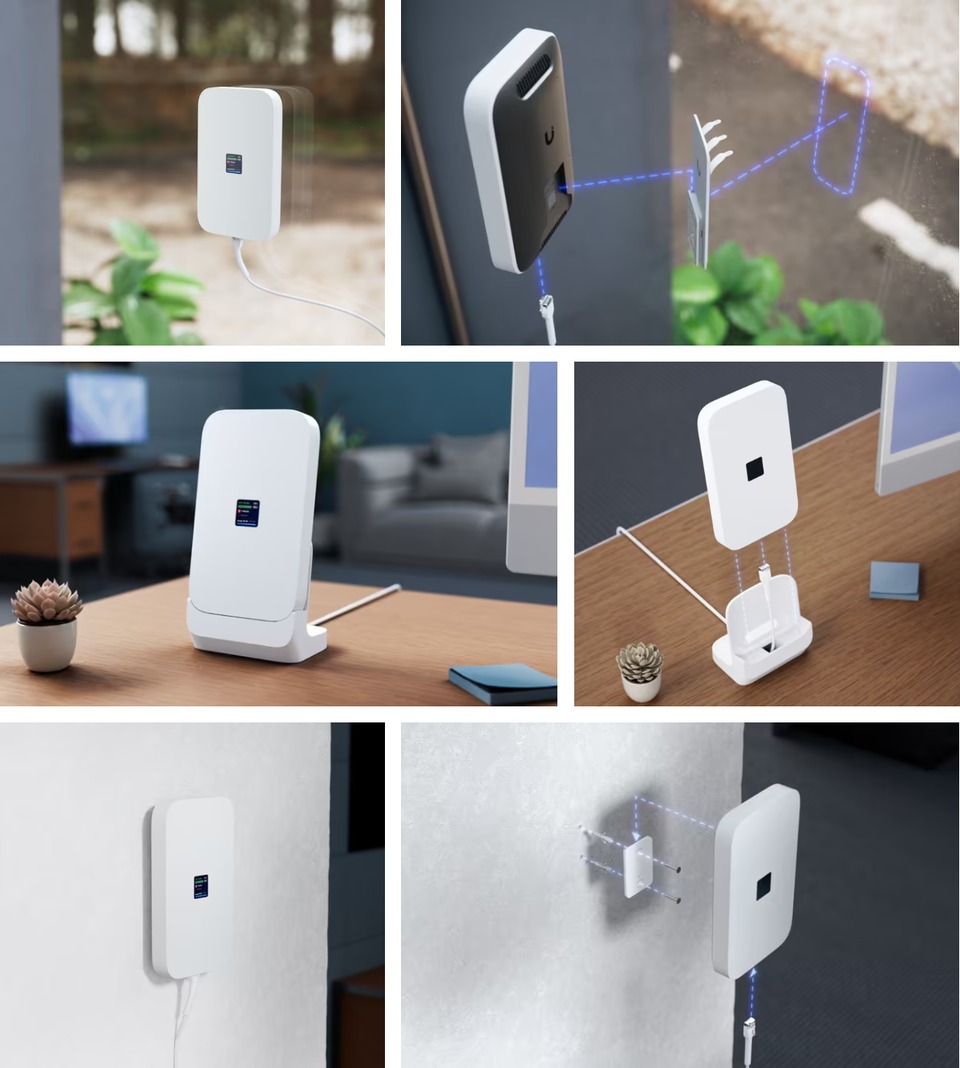

Mounting	Desktop stand, wall, window mount (Included)
Tamper Resistance	IK04

Mechanical

Specification	Details
Weight	Device: 410 g (14.5 oz) Stand: 215 g (7.6 oz) Wall mount: 7.6 g (0.3 oz) Window mount: 20 g (0.7 oz)
Enclosure Material	Polycarbonate, aluminum alloy
Mount Material	Polycarbonate, silicone rubber

Specification	Details
Management	Ethernet
5G NR Category	5G NR
5G NR Frequency Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
5G NR Max. TX Power	HPUE power class 2: 26 dBm
4G LTE Frequency Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
4G LTE Max. TX Power	HPUE power class 2: 25 dBm
3G UMTS Frequency Bands	B1, B2, B4, B5, B8, B19

Specification	Details
Antennas Type	(4) Embedded cellular antennas
Max. Power Consumption	14.5W
Power Method	PoE
Display	1.3" touchscreen
Buttons	(1) Factory-reset
Ambient Operating Temperature	0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, PTCRB, GCF

Specification	Details
Application Requirements	UniFi Network Version 10.0.162 and later
