Ubiquiti NSM5 Wireless 5GHz Access Point with Power Over Ethernet and airMAX

Web ID: 20817

Ubiquiti NSM5 Wireless 5GHz Access Point with Power Over Ethernet Indoor/Outdoor airMAX CPE Featuring a panel antenna and dual-polarity performance, the NanoStationM is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Manufacturer Warranty: 1 Year
Manufacturer PN: NSM5
GTIN: 810354025013
Manufacturer Website


Plug and Play Installation

The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.

Versatile Application Use

The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.

Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

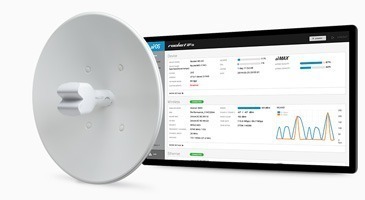

Powerful airOS® Features

Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.

Advanced Software Technology

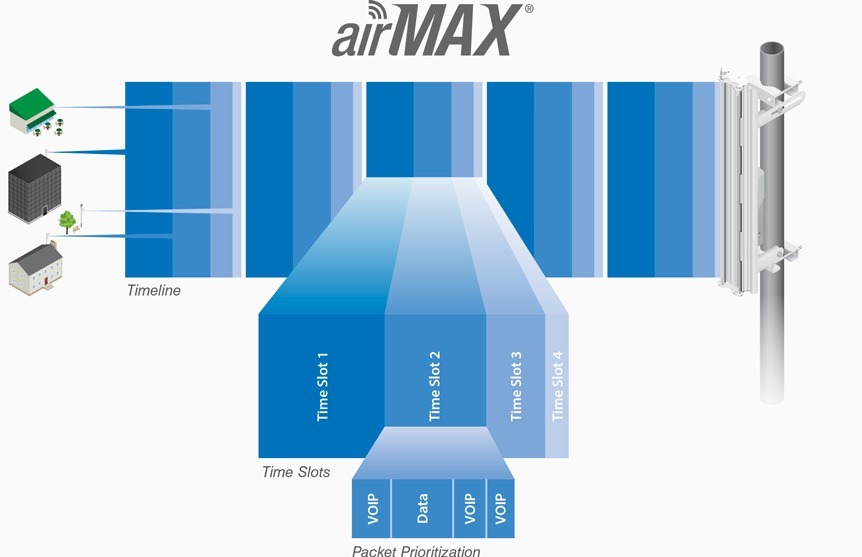

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Window/Wall Mounting Kit

Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.

Wall/Pole Mounting Kit

The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.

Dimensions 294 x 31 x 80 mm (11.57 x 1.22 x 3.15") Weight 400 g (14.11 oz) Power Supply (PoE) 24V, 0.5A Max. Power Consumption 8W Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Operating Frequency Worldwide USA USA DFS 5170-5875 MHz 5725-5850 MHz 5250-5850 MHz Gain 14.6-16.1 dBi Networking Interface (2) 10/100 Ethernet Ports Processor Specs Atheros MIPS 74Kc, 560 MHz Memory 64 MB DDR2, 8 MB Flash Frequency 5 GHz Cross-pol Isolation 22 dB Minimum Max. VSWR 1.6:1 Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation) Polarization Dual Linear Enclosure Outdoor UV Stabilized Plastic Mounting Pole-Mount (Kit Included) Operating Temperature -30 to 75° C (-22 to 167° F) Operating Humidity 5 to 95% Noncondensing Wireless Approvals FCC Part 15.247, IC RS210, CE RoHS Compliance Yes Shock & Vibration ETSI300-019-1.4
