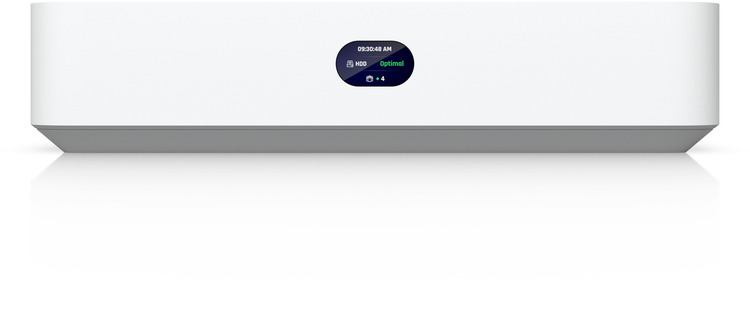

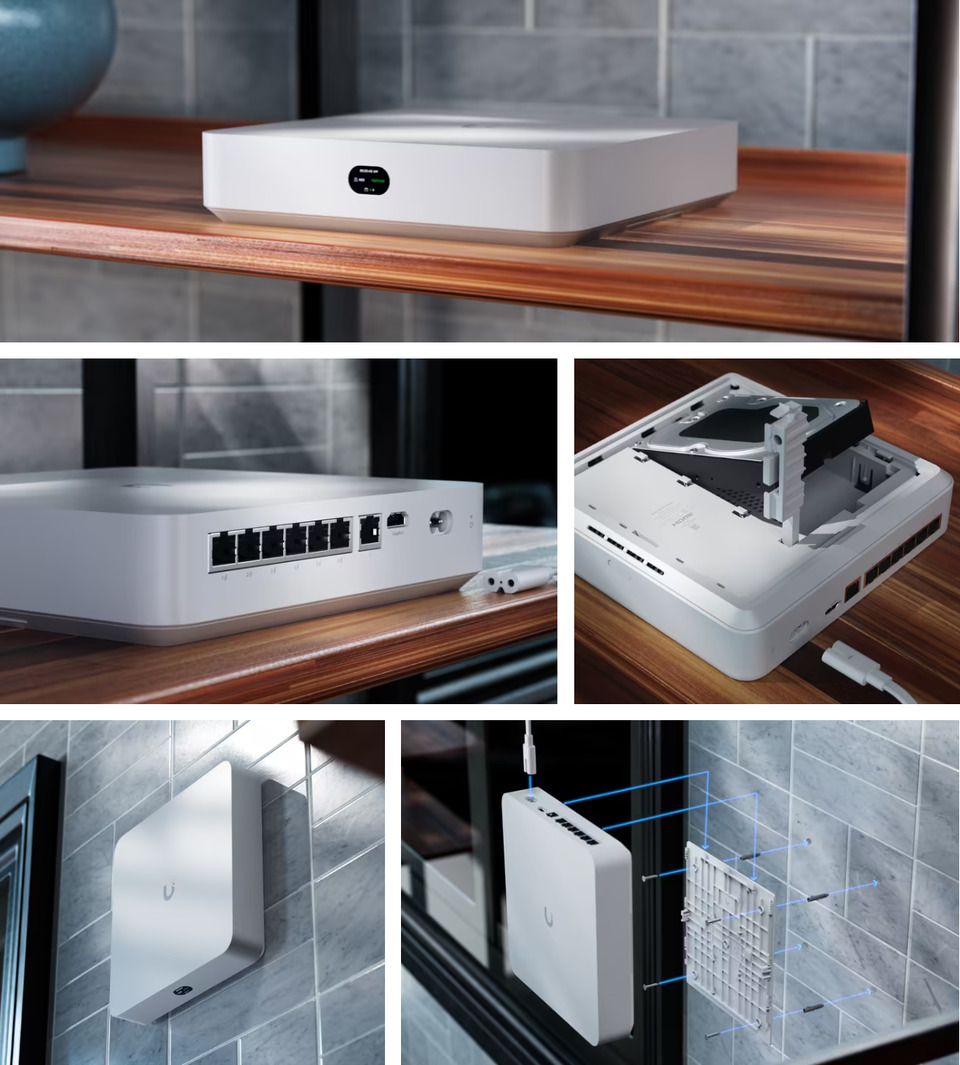

Ubiquiti Network Video Recorder Instant NVR with Integrated PoE Switch
Web ID: 47516
Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Manufacturer Warranty: 2 Year
Manufacturer PN: UNVR-Instant
Manufacturer Website
$449
Overview
| Item | Details |
|---|---|
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite | Protect ? Access ? |
| Managed Cameras | (15) HD (8) 2K (6) 4K |
| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | ? |
| Vantage Point | ? |
| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
Hardware
| Item | Details |
|---|---|
| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100–240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port | PoE: 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet Bluetooth |
| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | Ethernet ? PoE ? |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ? |
| Certifications | FCC, IC, CE, Electrical Safety |
