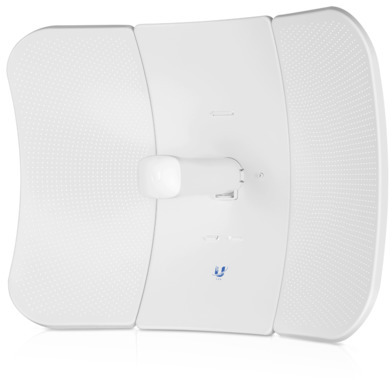

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).

Features:

- PtMP CPE
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
- Range up to 30km
Functions in a PtMP environment with the LTU-Rocket as the basestation

LTU_LR

Dimensions	512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
Weight With Mount	1.360 kg (2.998 lb) 1.735 kg (3.825 lb)
Networking Interface	(1) 10/100/1000 Ethernet Port
Enclosure	Outdoor UV Stabilized Plastic
Max. Power Consumption	8.5W
Power Supply	24V, 0.5A Gigabit PoE Adapter (Included)
Power Method	24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range	22 - 26V
Max. Conducted TX Power	22 dBm (per Chain)
Gain	26 dBi
Mounting	Pole-Mount (Kit Included)
Wind Loading	550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
ESD/EMP Protection	± 24kV Contact/Air
Operating Temperature	-40 to 60° C (-40 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC

Warranty Information

Name: Ubiquiti LTU-LR Point-to-MultiPoint 5GHz Long-Range Client Radio - Computer Alliance
Brand: Ubiquiti
SKU: 28698
Price: 199.00 AUD
Availability: BackOrder

2 Year

Manufacturers Warranty

Ubiquiti LTU-LR Point-to-MultiPoint 5GHz Long-Range Client Radio
