| Mechanical | |
| Dimensions | 161 x 31 x 80 mm (6.3 x 1.2 x 3.2") |
| Weight | 180 g (6.4 oz) |
| Enclosure Materials | Outdoor UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) |
| Hardware | |

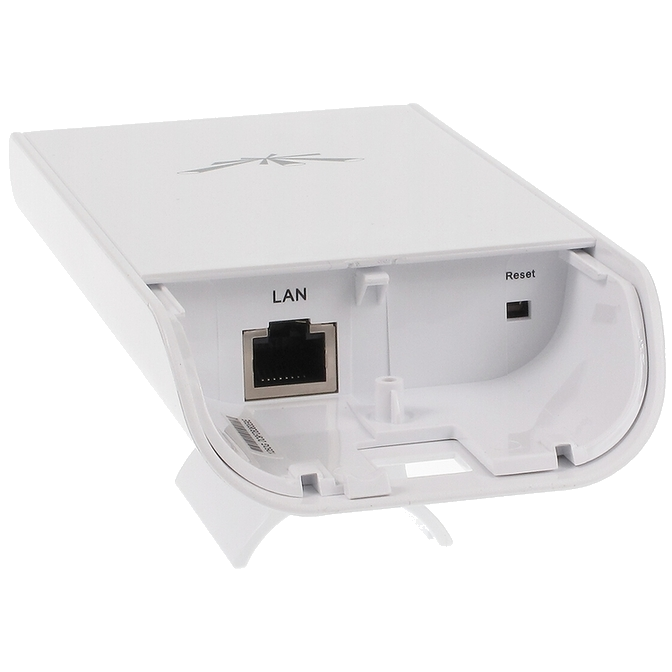

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. Power Consumption | 5.5W |
| Ambient Operating Temperature | -30 to 75° C (-22 to 167° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ? |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Antenna Gain | 13 dBi |
| Polarization | Dual-Linear |
| Antenna beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Cross-Pol Isolation | 20 dB Min. |
