Ubiquiti G3 Gate Starter Kit
Web ID: 47502

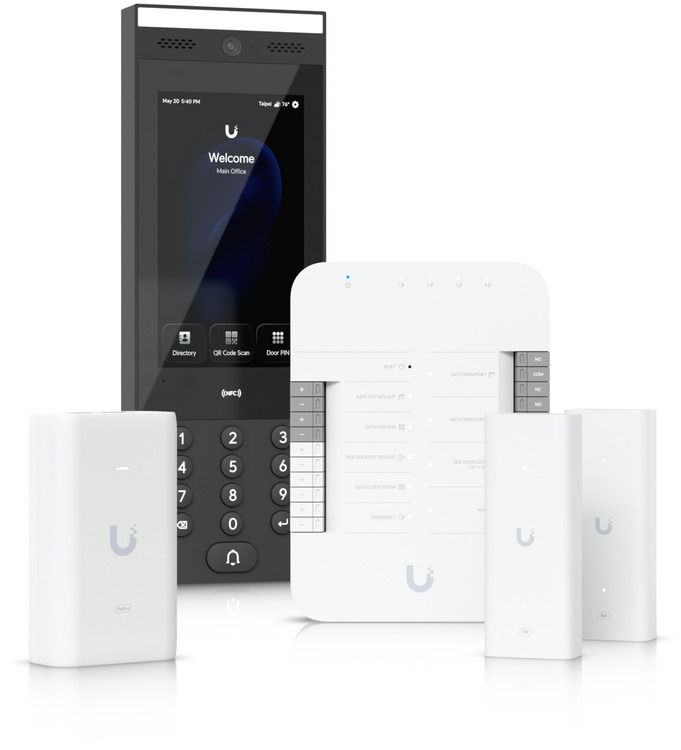

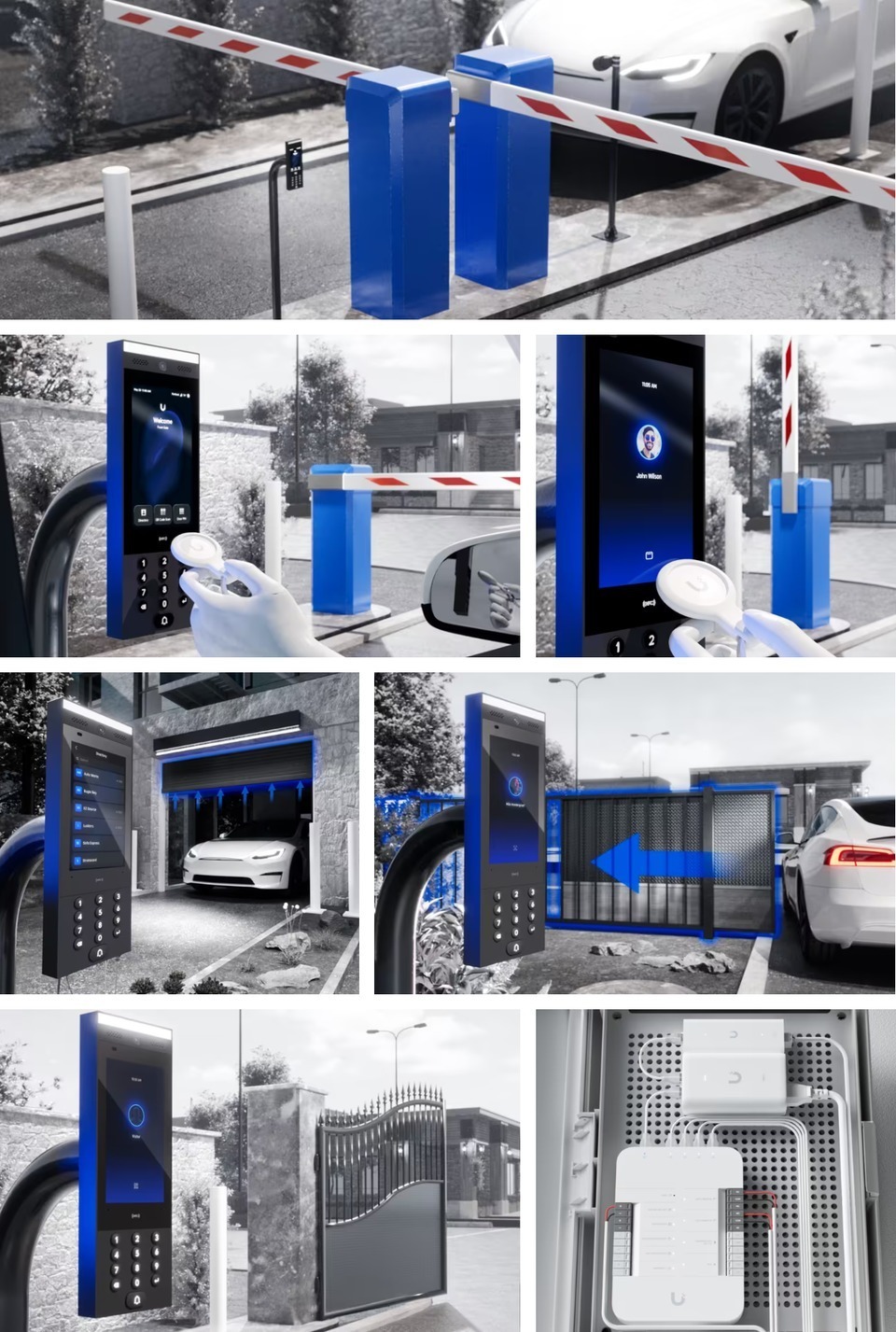

Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: UA-G3-SK-Gate
Manufacturer Website
$1389
Overview
| Item | Details |
|---|---|
| In the Box | (1) Gate Hub (1) G3 Intercom (1) PoE++ Adapter (2) 2-wire Retrofit Extenders |
| Touch Pass | 10 free 1-year Touch Passes included |
| Learn More | — |
Gate Hub
| Specification | Details |
|---|---|
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
| Supported Doors | 1 gate, 1 side door |
| Input Terminals | Gate exit request, Gate position, Side door exit, Side door position, Emergency |
| Power Method | PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Enclosure Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| Weight | 460 g (1 lb) |
| Indoor/Outdoor Use | Indoor only (device) Outdoor with waterproof junction box |
| NDAA Compliant | ? |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Operating Temp | -30 to 60° C (-22 to 104° F) |
| Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (5) 10/100/1000 Base-T |
| PoE Interface | (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated) |
| Max Power Consumption | 22W (Without PoE output) 60W (With PoE output) |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Dry Output Relay | (2) Operator: 30V DC, up to 1A (1) Aux: 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| LEDs | W/B |
| Button | (1) Factory-reset |
| Recommended Max Cable Length | Detailed per lock type and AWG (see original for full breakdown) |
| PoE Cabling Requirements | Cat 5e minimum Patch cords: 26 AWG Horizontal/riser: 24 AWG |
| UL 294 Statement | IEEE 802.3 compliance not verified Complies with NEC Article 725.121 |
| CAN/ULC Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Info | UA-Hub-Gate, V01 |
| Software Info | Check version |
G3 Intercom
| Specification | Details |
|---|---|
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Integrated Camera | ? |
| Access Methods | NFC, PIN, Apple/Google Wallet, Mobile Unlock |
| Intercom & Doorbell | ? |
| Weatherproofing | IP65 |
| NDAA Compliant | ? |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |
| Mounting | Wall mount, gooseneck adapter (Included) Optional: flush mount, sunshield |
| Indoor/Outdoor Use | ? |
| Operating Temp | Device: -30 to 60° C Display: -25 to 60° C |
| Operating Humidity | 5 to 90% noncondensing |
| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE |
| Max Power Consumption | 13W |
| Supported Voltage | 48V DC |
| Sensors | Proximity, ALS |
| Display | 177 mm (7") capacitive multi-touch 1024 x 600 px Max 1000 nits |
| Microphone / Speaker | ? / 2W |
| NFC | 13.56 MHz Read range: <30 mm Supports ISO/IEC 14443A/B, 15693, 18092, MIFARE, FeliCa, NFC Forum tags |
| LEDs | Amber |
| Buttons | (1) Factory-reset |
| PoE Cabling Requirements | Same as Gate Hub |
| UL 294 Statement | Same as Gate Hub |
| CAN/ULC Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Info | UA-G3-Intercom, V01 |
| Software Info | Check version |
Retrofit Extender
| Specification | Details |
|---|---|
| Dimensions | PoE in/out: 40 x 105 x 25 mm Adapter: 43.5 x 138 x 30 mm |
| Weight | PoE in: 77 g PoE out: 79 g Adapter: 140 g |
| Enclosure / Mount Material | Polycarbonate |
| Connector | BNC female |
| Networking Interface | (1) 10/100 MbE (1) Homeplug AV |
| Power Method | PoE++ |
| PoE Interface | In: PoE++, 50V DC, 1.2A Out: PoE+, 48V DC, 0.6A |
| Max Power Consumption | 3W (Without PoE output) |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| LEDs | White |
| Operating Temp | -10 to 40° C |
| Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ? |
| Certifications | CE, FCC, IC |
PoE++ Adapter
| Specification | Details |
|---|---|
| Model | U-PoE++ |
| Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
| Weight | 210 g (7.4 oz) |
| Output Voltage | 48V DC @ 1.25A |
| Gigabit LAN Port | ? |
| Rated Voltage | 100–240V AC @ 50/60Hz |
| Input Current | 1.3A @ 120V AC 0.75A @ 230V AC |
| Inrush Current | <100A @ 120V AC <200A @ 230V AC |
| Efficiency | 85+% |
| Output Ripple | 1% max |
| Switching Frequency | 65 kHz |
| Line / Load Regulation | ≤1% / ≤3% |
| 4-pair Powering | Pins 1,2,4,5 (+) and 3,6,7,8 (-) |
| AC Connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge Protection | Difference and common mode |
| Clamping Protection | 11V data, 60V power |
| Max Surge Discharge | 1500A (8/20 μs) |
| Peak Pulse Current | 36A (10/1000 μs) |
| Shunt Capacitance | <5 pF |
| Response Time | <1 ns |
| Power Method | Universal AC input |
| Power Supply | AC/DC |
| Supported Voltage Range | 100–240V AC |
| Max PoE+ Wattage | 60W |
| Storage Temp | -30 to 70°C |
| Operating Temp | 0 to 40° C |
| Operating Humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
| NDAA Compliant | ? |
