$1,149
Click & Collect
Out of stock
Delivery
Out of stock
Buy Now, Pay Later. T&Cs Apply
| Attribute | Value |
|---|---|
| Dimensions | 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 10 |
| Coverage Area | 185 m² (2,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink | 10 GbE, 1 GbE |

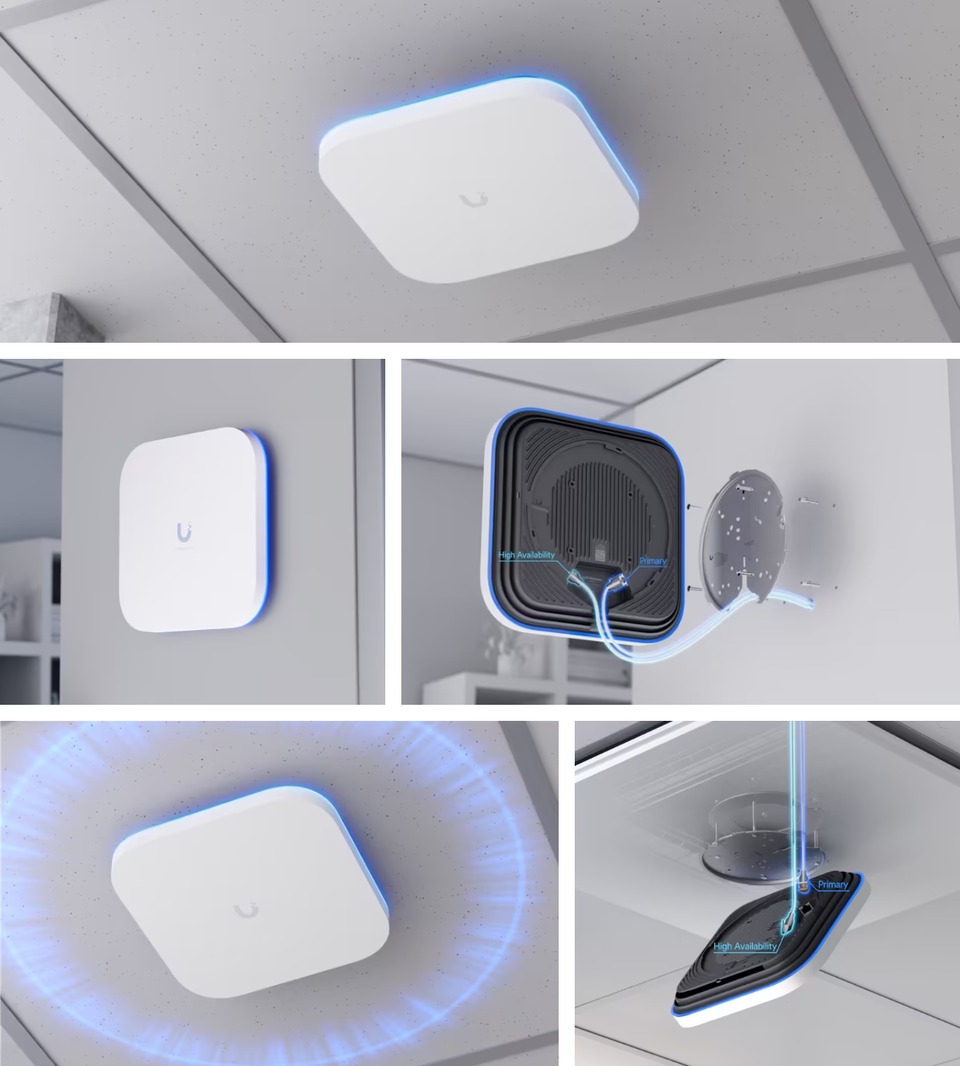

| Mounting | Ceiling, Wall, VESA (Pro Mount Included) |
| Power Method | PoE++ |
| Attribute | Value |
|---|---|
| MIMO | 6 GHz: 4 x 4 (DL/UL MU-MIMO), 5 GHz: 4 x 4 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | 6 GHz: 11.5 Gbps (BW320), 5 GHz: 8.6 Gbps (BW240), 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | 6 GHz: 6 dBi, 5 GHz: 6 dBi, 2.4 GHz: 5 dBi |
| Max. TX Power | 6 GHz: 24 dBm / 30 dBm, 5 GHz: 30 dBm, 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320), 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160), 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160), 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Attribute | Value |
|---|---|
| Wireless Meshing | ? |
| Band Steering | ? |
| 802.11v BSS Transition Management | ? |
| 802.11r Fast Roaming | ? |
| 802.11k Radio Resource Management (RRM) | ? |
| Advanced Radio Management | ? |
| Real-Time Spectral Analysis | ? |
| Passpoint (Hotspot 2.0) | ? |
| Captive Hotspot Portal | Custom Branding Landing Page ? |
| Voucher Authentication | ? |
| Payment-Based Authentication | ? |
| External Portal Server Support | ? |
| Password Authentication | ? |
| Guest Network Isolation | ? |
| Private Pre-Shared Key (PPSK) | ? |
| WiFi Speed Limiting | ? |
| Client Device Isolation | ? |
| WiFi Schedules | ? |
| RADIUS over TLS (RadSec) | ? |
| Dynamic RADIUS-assigned VLAN | ? |
| Attribute | Value |
|---|---|
| Max. Power Consumption | 43W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 10 GbE RJ45 port, (1) 1 GbE RJ45 port |
| Weight | 1.8 kg (4 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System: R/G/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | ? |
| Certifications | CE, FCC, IC, Anatel |
| Operating Frequency | US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 to U-NII-8 : 5925 - 7125 MHz; Worldwide: 2400 - 2483.5 MHz, 5150 - 5725 MHz, 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Attribute | Value |
|---|---|
| Application Requirements | UniFi Network Version 8.6.9 and later |
| Mobile App | iOS™ version 10.20.0 and later, Android™ version 10.21.3 and later |
2 Year
Manufacturers Warranty
Need a hand with something tech related? Our team put the human lingo in technology. Simply give us a call and we’ll be more than happy to assist!
$1,149
