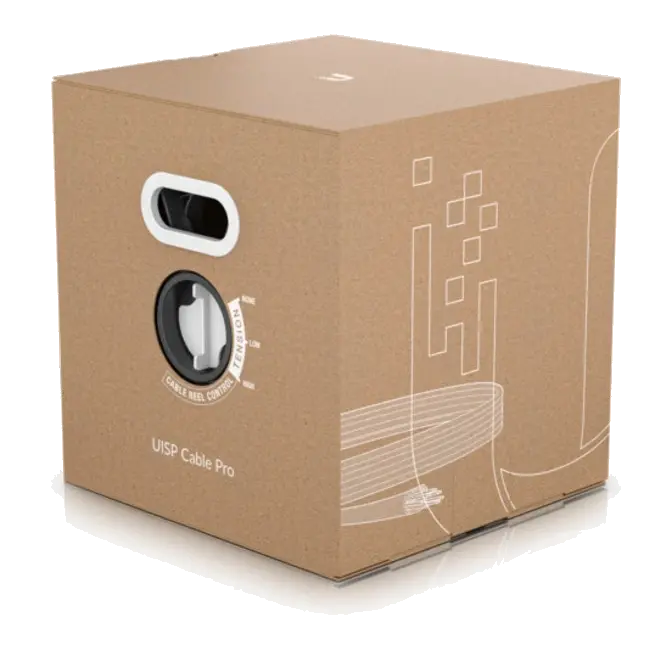

Ubiquiti 305M CAT5E Pro Outdoor Cable UISP-Cable-Pro

Web ID: 31692

The UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: UISP-Cable-Pro
Manufacturer Website

Box Dimensions330 x 330 x 340 mm (13 x 13 x 13.4")
Box Weight12 kg (26.5 lb)
Cable Length305 m (1000 ft)
Cable ColorBlack
Cable TypeCAT5e, Shielded
Ethernet SupportUp to 1 Gbps
Conductor Wire Gauge24 AWG
ConductorSolid Bare Copper
Conductor Diameter0.500 ± 0.005 mm
Insulation TypeSolid Polyethylene
Insulation ThicknessAvg. 0.26 mm
Min. 0.25 mm
Insulation Diameter1.04 ± 0.03 mm
Separation (Polyester Wrapping)Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk DividerNone
Cable Shield (Aluminum Foil)Thick: 0.060 mm, Extent: 18 mm
ESD Drain Wire0.4 CCS
Rip CordYes
Jacket MaterialPolyethylene
Jacket ThicknessAvg. 0.50 mm
Min. 0.46 mm
Jacket Outer Diameter6.0 ± 0.30 mm
Jacket ColorBlack
Storage Temperature-30 to 75° C (-22 to 167° F)
Installation Temperature-20 to 60° C (-4 to 140° F)
Operation Temperature-40 to 80° C (-40 to 176° F)
StandardsANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
