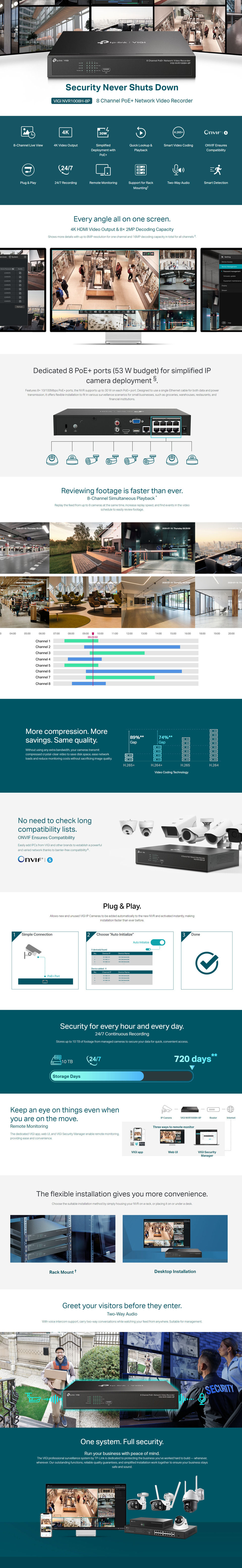

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle.
Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter is needed.
8-Channel Simultaneous Playback: Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
| NETWORK | |
|---|---|
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide |
| Operating Temperature | -10–55 °C |
| Dimensions( W X D X H ) | 294 × 180 × 44 mm |
| PoE | Standard: 802.3af/at PoE Ports: Ports 1-8 PoE Budget: 53 W |
| External Power Supply | 53.5V DC/1.31 A |
| Power Consumption | 2.38 W (without disk) 12.94 W (with disk) |
| VIDEO/IMAGE | |
|---|---|
| Video Input | 8-Channel IP Video Input, up to 8 MP Resolution |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz, |
| DECODING | |
|---|---|
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/ DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 8 Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
