CAMERA

Image Sensor:

1/3“

Lens:

F/NO: 1.61±10%; Focal Length: 3.18mm±5%

Night Vision:

850 nm IR LED up to 15m

Viewing Angle:

113°

Resolution:

2K QHD (2560 × 1440 px)

AUDIO

Audio Communication:

2-way audio

Audio Input & Output:

Built-in microphone and speaker

NETWORK

Protocol:

TCP/IP, ICMP, DNS, HTTPS, TCP, UDP

Wireless Security:

WPA/WPA2-PSK

Wi-Fi Protocol:

IEEE 802.11b/g/n, 2.4 GHz

Frequency:

2.4 GHz

ACTIVITY NOTIFICATIONS

Input Trigger:

Motion detection, Person
detection, Pet detection, Vehicle detection.

Output Notification:

Notification,Snapshot(Tapo care),Clips(Tapo
care).

ENVIRONMENT

Operating Temperature:

-20?~45?(-4°F ~113 °F )

Storage Temperature:

-20?~60? (-4°F~140°F)

Operating Humidity:

10%~90%RH, Non-condensing

Storage Humidity:

5%~90%RH, Non-condensing

PACKAGE CONTENTS

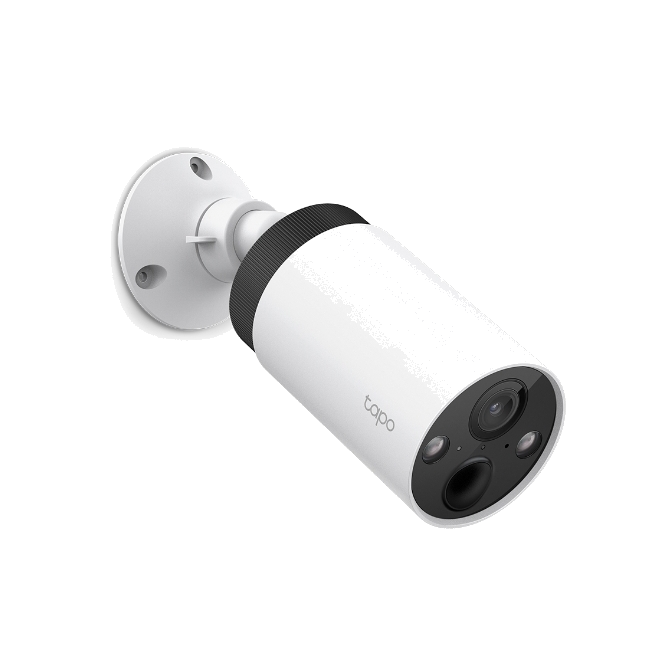

Tapo C420 Cameras (Battery Included)
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Screws
Mounting Templates
Camera Brackets
Quick Start Guide
RJ45 Ethernet Cable

HARDWARE

Button:

Camera Button: Reset/SYNC Button
Hub Button: Reset Button; SYNC Button

Indicator LED:

Camera Indicator LED: System LED
Hub Indicator LED: System LED

Adapter Input:

Camera Adapter Input: 100-240V, 50/60Hz
Hub Adapter Input: 100-240V, 50/60Hz, 0.3A

Adapter Output:

Camera Adapter Output: 5.0V, 1.0A
Hub Adapter Output: 9.0V, 0.85A

Dimensions (W x D x H):

Camera Dimensions: 4.35 x 2.52 x 2.52in.
(110.6*64.2*64.2mm)
Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in.
(71.45*71.45*31.25mm)

VIDEO/IMAGE

Video Compression:

H.264

Frame Rate & Resolutions:

15/20 fps

Video Streaming:

2K QHD
