IEEE 802.3af/at compliant
Selectable power output
2.5 Gigabit speed support
Plug-and-Play, no configuration required

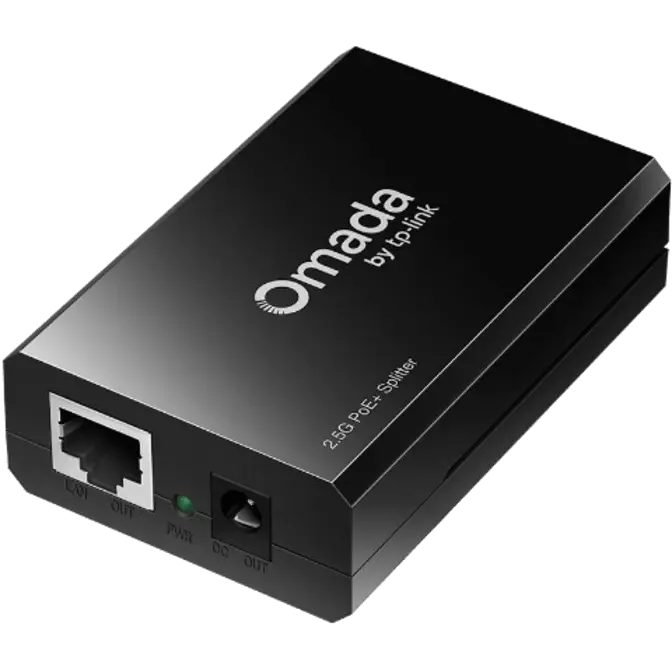

The POE260R is a 2.5 Gigabit PoE+ splitter that delivers high-speed data and converts standard PoE+ input into a flexible 12V/9V/5V DC output, powering various devices over existing network cables without requiring a separate power adapter.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port • 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port • 12V / 9V / 5V DC OUT Power Output Port |
| Network Media | • 10BASE-T:2-pair UTP/STP of Cat. 3,4,5 (maximum 100 m) • 100BASE-TX:2-pair UTP/STP of Cat. 5 or above (maximum 100 m) • 1000BASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m) • 2.5GBASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m) |
| Power Supply | 12VDC/ 2A,9VDC/ 2A or 5VDC/ 2A |
| Basic Function | • Compatible With IEEE 802.3af/at Compliant PSEs • Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Output |
| LED | PWR |
| Dimensions ( W x D x H ) | 3.2 × 2.1 × 0.9 in. (80.8 × 54 × 24 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | • Compatible With IEEE 802.3af/at Compliant PSEs • Delivers Power Up To 100 Meters • Optional 12VDC, 9VDC or 5VDC Power Supply |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • POE260R • Power Cord • Installation Guide |
| Environment | • Operating Temperature:-5?~45? (23?~113?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
