LAN Speed: 2.5 Gigabit
Ports: 4 Port
Switch Tech: Managed
| Specification | Value |
|---|---|
| Built-In Omada OS Applications | Omada Network Application (Network Management) Omada Guard Application (Surveillance Management) |
| Managed Omada Network Devices | 30 (Recommended) |
| Managed Cameras | Fusion Pro SSD Recording: Recommended 16× HD / 14× 2K / 12× 4K / 6× 12MP Cameras NVR Recording: Up to 24 Cameras with a Supported Omada/VIGI NVR |
| Managed Omada/VIGI NVRs | Up to 1 |
| Client Capacity | 300 (Recommended) |

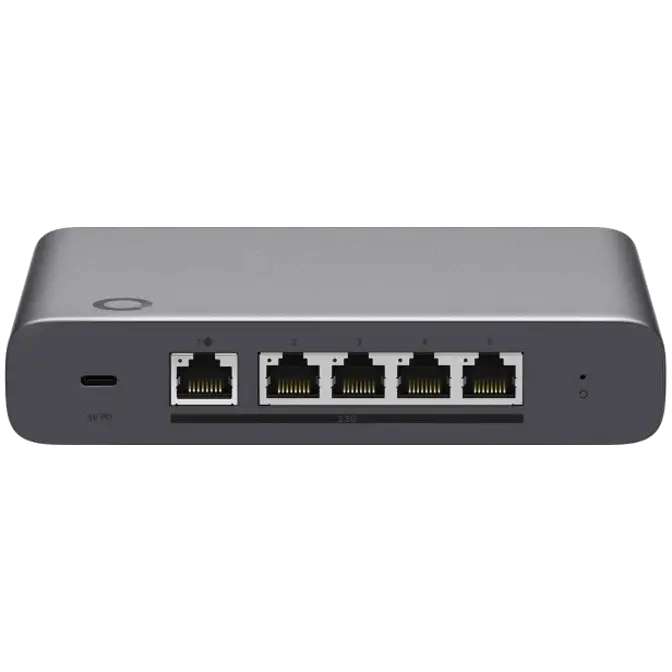

| Interface | 1× 2.5G RJ45 WAN Port 4× 2.5G RJ45 LAN/WAN Ports Up to 4 Simultaneous WAN Ports |
| IPS Throughput | 2,364 Mbps |
| Site-to-Site VPN Throughput | 1,332 Mbps |
| Management | Cloud Access On-Premises Management Omada App Omada Guard App |
| Mounting | Desktop Wall-Mount (Magnetic-Mount Plate Sold Separately) Rack-Mount (Rackmount Kit Sold Separately) |
| Dimensions | 160 × 130 × 31.5 mm (6.3 × 5.12 × 1.24 in) |
| IDS/IPS | Yes |
| DPI | Yes |
| Application-Based ACL | Yes |
| Content Filtering | Yes |
| Ad Blocker | Yes |
| Safe Search | Yes |
| DNS Security | Yes |
| Firewall | Yes |
| Attack Defense | Yes |
| ARP Inspection | Yes |
| Omada LightLink VPN | Yes |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN OpenVPN IPsec VPN SSL VPN L2TP VPN PPTP VPN |
| VPN Client | WireGuard VPN OpenVPN L2TP VPN PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | Omada LightLink VPN: 1,017 Mbps IPsec VPN: 1,332 Mbps WireGuard VPN: 1,044 Mbps OpenVPN: 393 Mbps L2TP VPN: 1,109 Mbps PPTP VPN: 404 Mbps SSL VPN: 371 Mbps |
| WAN Connection | Static IP Dynamic IP PPPoE PPTP L2TP MAP-E DS-Lite |
| Multi-WAN Failover & Load Balancing | Yes |
| DHCP Server | Yes |
| VLAN Segmentation | Yes |
| Bandwidth Control | Yes |
| QoS | Yes |
| Static Routing | Yes |
| Policy Routing | Yes |
| NAT | Port Forwarding Virtual Server DMZ ALG UPnP One-to-One NAT Disable NAT |
| Dynamic DNS | TP-Link DDNS 3rd-Party DDNS Custom DDNS |
| IPv6 | Static IP SLAAC DHCPv6 PPPoE 6to4 Tunnel Pass-Through Non-Address Mode |
| Bonjour / mDNS | Yes |
| IGMP v2/v3 Proxy | Yes |
| Dashboard - Overview / Wi-Fi / Clients / Traffic | Yes |
| Dashboard - Network Topology | Yes |
| Health Monitoring | Yes |
| Device Management | Automatic Device Discovery |
| Switch Ports Management | Yes |
| Client Management | Yes |
| Reports | Yes |
| Logs | Alerts Events Audit Logs |
| Maintenance Tools | Ping Test Packet Capture Terminal Cable Test Interference Detection Remote Access |
| IntelliRecover | Yes |
| SNMP | v1 / v2c / v3 |
| SSID Management | Yes |
| PPSK | Yes |
| WLAN Optimization | Yes |
| Portal | Yes |
| Bluetooth | Yes |
| Surveillance Videos | Live View Playback |
| Surveillance Device Management | Yes |
| Surveillance Events | Yes |
| Smart Search | Yes |
| Case Center | Yes |
| Recording | Yes |
| Surveillance Logs | Alerts System Events Audit Logs |
| Storage Management | Yes |
| Smart Analytics | Yes |
| Archiving Management | Yes |
| SSD Tray | 1× NVMe SSD Tray (Up to 2 TB Video Storage) |

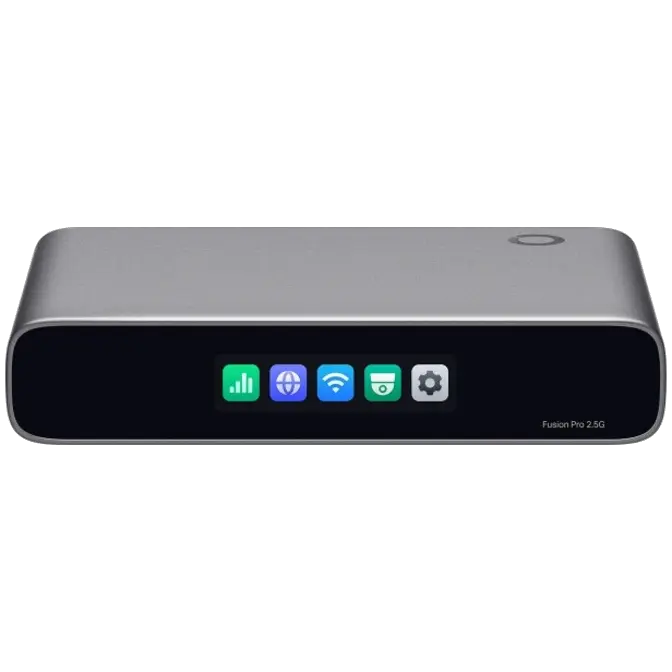

| Touchscreen | 2.51-inch Color LCM Touchscreen |
| Button | Reset Button |
| Memory | 4 GB DDR4 |
| Power Supply | USB Type-C (9V DC / 3A) (Adapter Included) |
| Max Power Consumption | 14.35 W (with Power Adapter) |
| Enclosure | Polycarbonate |
| LED Indicators | Ethernet |
| Fan | Quantity: 1 Max Noise: 24.5 dBA @ 1m Min Noise: Fanless Mode |
| Net Weight | 620 g (1.37 lb) without SSD |
| Surge Protection | 4 kV Surge Protection |
| ESD Protection | ±8 kV (Air) ±6 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
