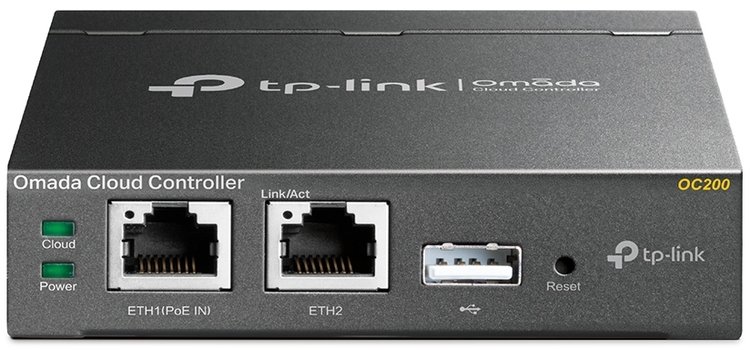

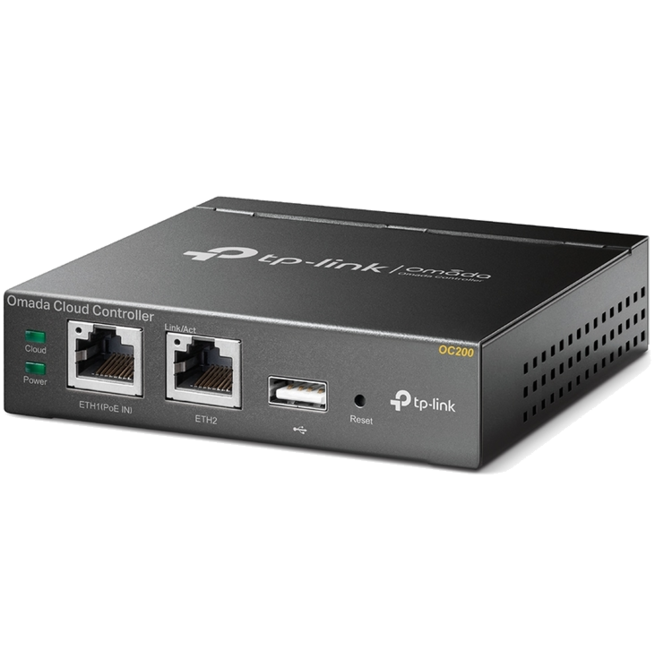

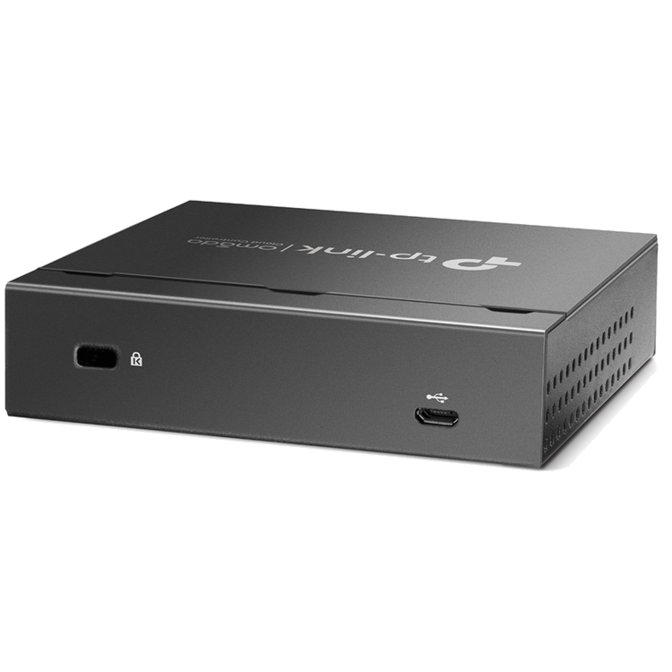

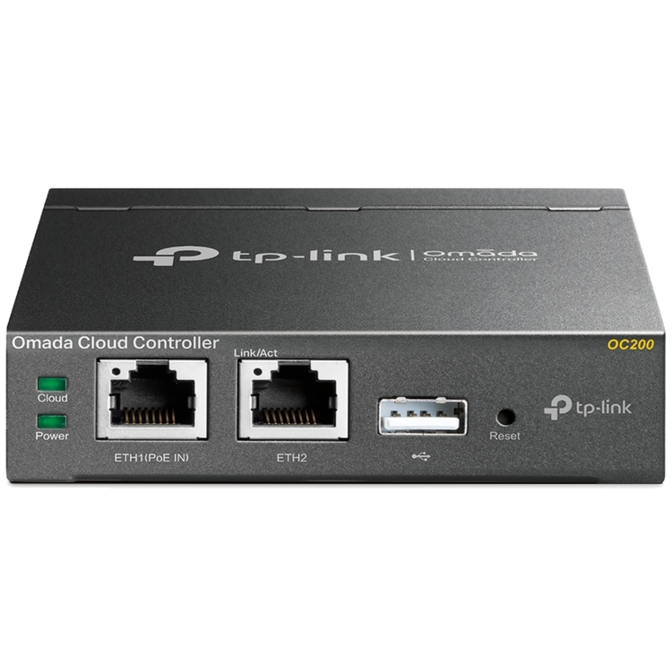

TP-Link OC200 Omada Cloud Controller

Web ID: 25509

Omada Wi-Fi network controller, Accessible through direct access, cloud portal or mobile app, Pre-installed Omada controller software. Power it on and start to play. No license fee, no monthly fee, manage from anywhere, anytime, Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations, Powerful CPU and USB auto backup for robustness and stability, Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
Manufacturer Warranty: 1 Year
Manufacturer PN: OC200
GTIN: 6935364084233
Manufacturer Website

tp-link oc200 omada cloud controller

Dedicated In Network Centralized Management

The OC200 Omada Cloud Controller dedicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

  • bicon1No PC/Server is needed
  • bicon2Reliability andSecurity
  • bicon4Cloud Access for ultra convenience
tp-link oc200 omada cloud controller

Free Cloud Management – Anywhere, Anytime

Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

  • Free Cloud Servicewith no license fees
  • Convenient Management with remote access
  • Multi-Site Management for large scale network

Industry Leading Hardware Design

Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.

Durable Metal Casing

Powerful Chipset

802.3af PoE

USB for Auto Backup

Guest Network with Facebook Wi-Fi and SMS Login

Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

Even More Convenient with Omada App

Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.




Interface 2 × 10/100Mbps Ethernet Port
1 × USB 2.0 Port for configuration backup
1 × Micro USB Port for power
Power Supply 802.3af/at PoE or Micro USB(DC 5V/1A)
Power Consumption 5 W
Dimensions 3.9 × 3.9 × 1.0in.
(100 × 98 × 25mm)
FEATURES
Management Scale 50 EAPs
Wireless Fuction L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
AP Management Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF
Authentication WPA Personal and Enterprose
Captive Portal
Facebook login
SMS authentication
Voucher authentication
OTHERS
Certification FCC, RoHS
Package Contents Omada Cloud Controller OC200
Quick Installation Guide
Ethernet Cable
System Requirements Internet
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
