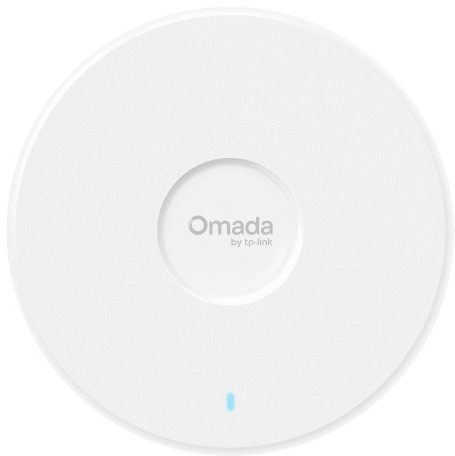

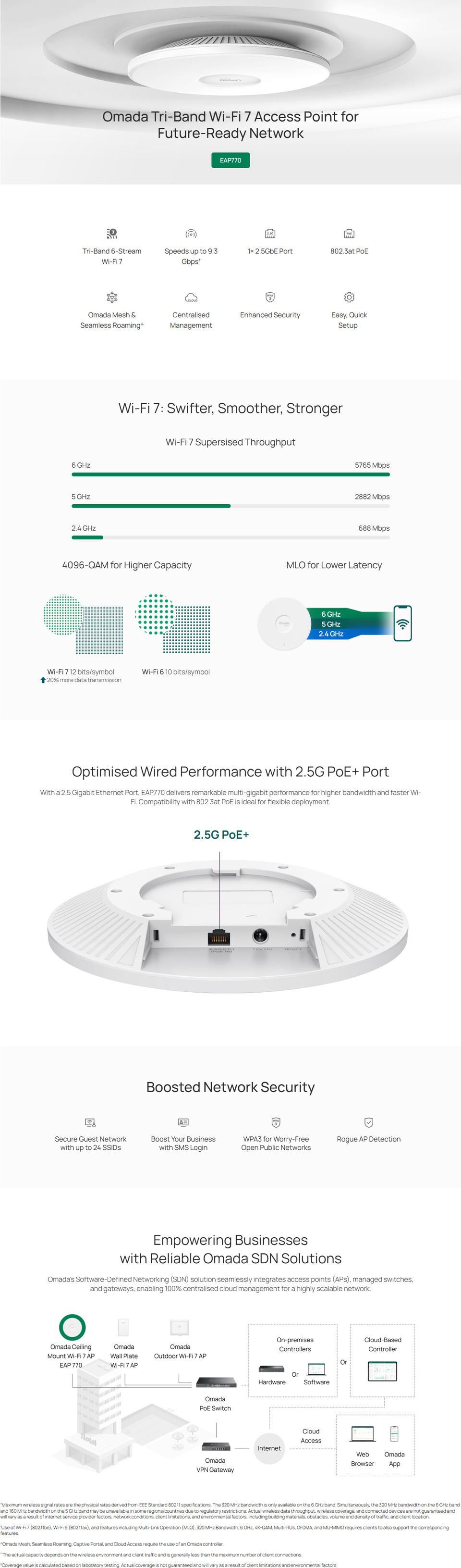

TP-Link EAP770 BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Web ID: 46624
Type: Access Point
WiFi Standard: Wi-Fi 7
LAN Speed: 2.5 Gigabit
Wireless Channel: Tri Band || 2.4GHz || 5GHz || 6GHz
Connection Type: Wireless
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: EAP770
Manufacturer Website
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 24.05 W (For PoE) • 20.92 W (For DC) |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi • 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |
| Mounting | Ceiling / Wall /Junction Box Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1500 ft² (140?)§ |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • MU-MIMO‡ • 320 MHz Bandwidth‡ • Mesh? • Seamless Roaming(802.11k/v/r)? • BBS Coloring‡ • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:24(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication? • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) < 23dBm (6 GHz, EIRP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Content | • Omada Ceiling Mount Accsee Point EAP770 • Installation Guide • Power Adapter • Ceiling/Wall/Junction Box Mounting Kits |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
