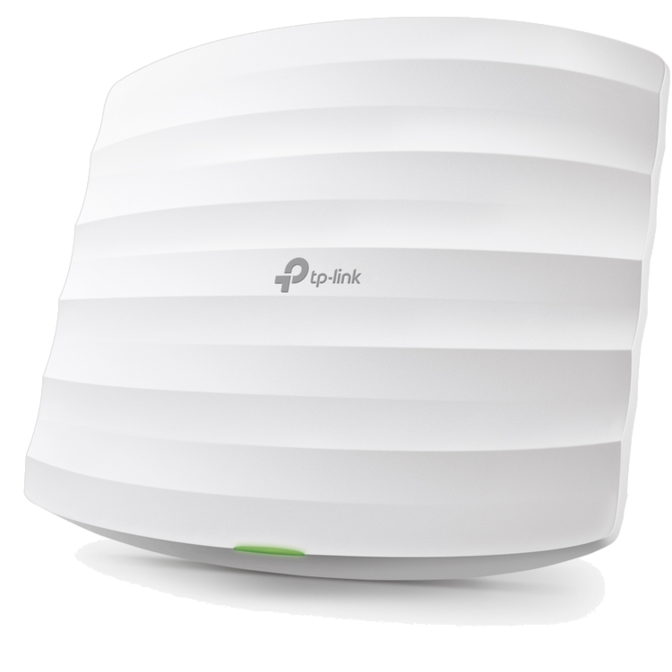

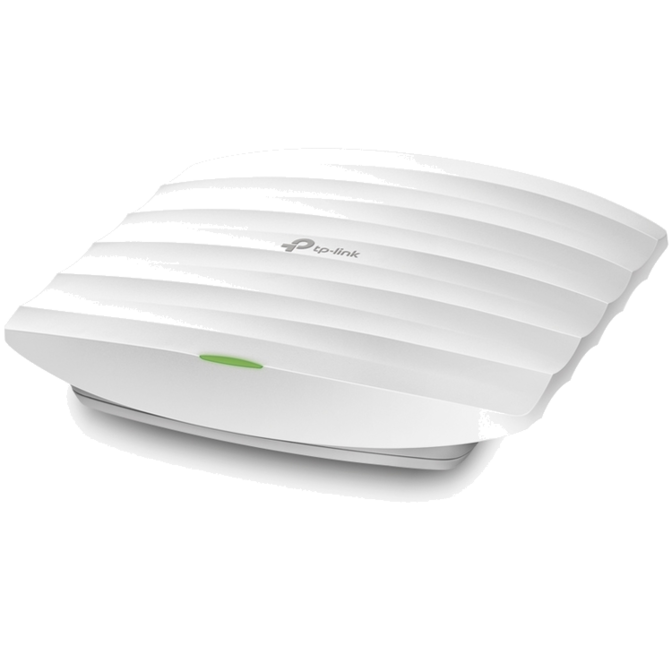

TP-Link EAP225 Ceiling Mount Wireless-AC1350 PoE Access Point
Web ID: 19268
Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds.
Free EAP Controller Software lets administrators easily manage hundreds of EAPs.
Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible.
Captive portal provides a convenient method for guest authentication.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Manufacturer Warranty: 5 Year
Manufacturer PN: EAP225
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

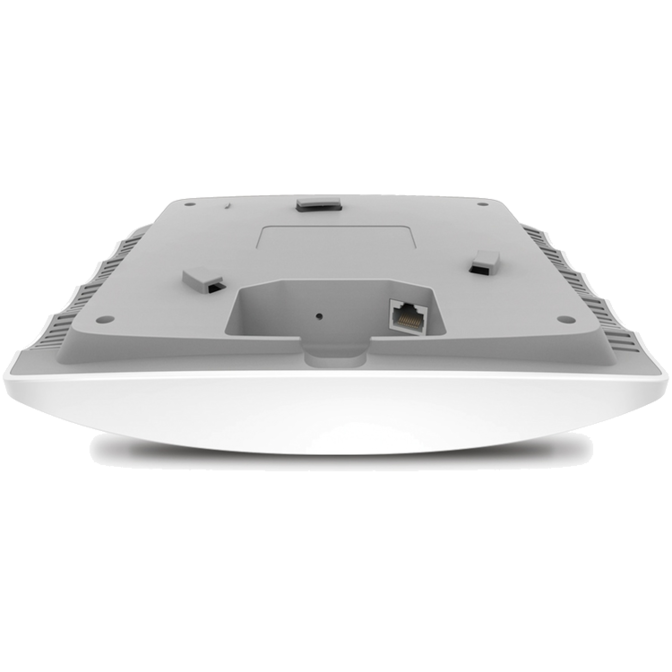

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.
Port 802.3af PoE/
24V Passive PoE
Unified Wi-Fi for Multi-user Business Environment
The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.
|Interface||Gigabit Ethernet (RJ-45) Port x 1 |
(Support IEEE802.3af or passive PoE)
|Power Supply||802.3af PoE or passive PoE|
|Dimensions||8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)|
|Antenna Type||Internal omni directional |
2.4GHz: 4dBi x 3
5GHz: 5dBi x 2
|Mounting||Ceiling mount or wall mount (mounting kit included)|
|Physical Security Lock||Yes|
|Hardware Watch Dog||Yes|
|Wireless Standards||IEEE 802.11ac/n/g/b/a|
|Frequency||2.4GHz and 5GHz|
|Signal Rate||5GHz:Up to 867Mbps |
2.4GHz:Up to 450Mbps*
|Wireless Functions||Multiple SSIDs (Up to 16 SSIDs, 8 for each band) |
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
Wireless Statistics based on SSID/AP/Client
|Wireless Security||Captive Portal Authentication |
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
|Transmission Power||≤24dBm(2.4GHz) |
|EAP Controller Software||Yes|
|LED ON/OFF Control||Yes|
|Management MAC Access Control||Yes|
|System Logging Local/Remote Syslog||Local/Remote Syslog|
|Package Contents||AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 |
Passive PoE Adapter
|System Requirements||Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux|
|Environment||Operating Temperature: 0?~60? (32?~144?) |
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
