TP-Link EAP120 Ceiling Mount Wireless-N Access Point with Power over Ethernet

Web ID: 14129

Clustering functionality, Support Power over Ethernet(802.3af)for convenient and affordable installation, Simple mounting design to easily mount to a wall or ceiling, Captive portal provides one convenient method of authentication for WiFi guests WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN, Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring CASH PRICE
Manufacturer PN: EAP120
GTIN: 845973071837
Warranty: 1 Year
Manufacturer Website


What This Product Does

The TP-LINK’s EAP120 business Access Point provides a flexible, easy-to-deploy, manageable and robust security business-class wireless network solution. Simple mounting design to easily mount to a wall or ceiling. WLAN configuration and management are simplified through clustering function or centralized management software. EAP120 also features captive portal and auto RF management, making it ideal for the high-density, intensive demanding businesses environment, include campus, hotels, malls and offices.

Flexible Placement - Easy mounting design & PoE

The EAP120’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP series APs support Power over Ethernet (PoE) to make deployment effortless and flexible.

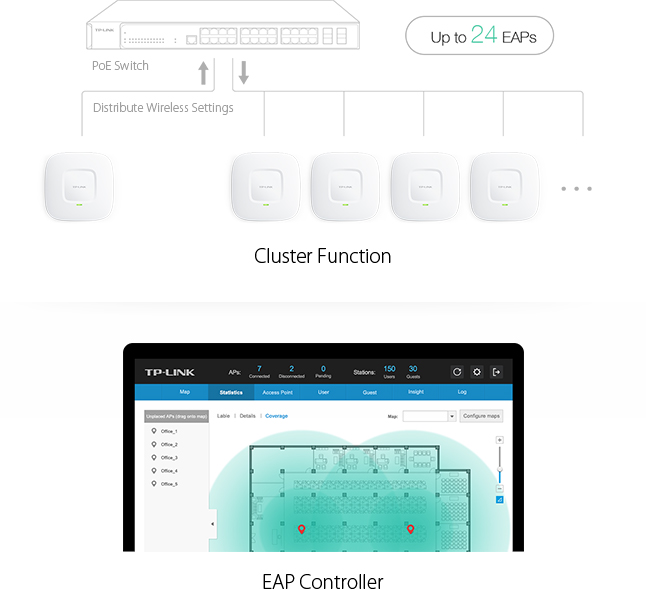

Unified WiFi Management - Clustering & Management Software

The clustering functionality allows users to manage up to 24 EAP120s and configure the WLAN settings in one centralized place. A master EAP120 will be automatically selected, enabling Network Administrators to easily manage all other EAP120s in the cluster via the master AP's web user interface.
Included controller software allows administrators to easily manage hundreds of EAPs through a single IP like an Access Controller.*
* To be released.
Conveniently implement the following tasks:
- Centralized WLAN configuration
- Centralized firmware update
- Real-time monitoring of the wireless status

Efficient Guest Authentication - Captive Portal

Captive portal provides one convenient method of authentication for WiFi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Robust Safety Strategy - Multiple Wi-Fi Security Measures

The EAP120 supports the enterprise class Wi-Fi security, including WPA/WPA2-enterprise encryption and 802.1X radius. In addition, Multi-SSID, Wireless Isolation, MAC Filtering and Rogue AP detection features help to decrease network security threats.

Applicable to Multi-user Environment - Designed for Enterprise Performance

With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, enterprise class security, and Enterprise hardware, EAP120 is specially designed for the highest-density, most demanding enterprise environments, including schools, hotels, and enterprises.

Interface Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Console Port *1
Button Reset, Power On/Off
Dimensions (W X D X H) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Antenna Type Internal 2* 4dBi Omni
Power Consumption 4.4 W
Power Supply PoE or External 12VDC / 1A Power Supply
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Transmit Power <20dBm(EIRP)
Wireless Modes Cluster, Standalone Mode
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
Load Balance
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
CLI (Command Line Interface) Yes
Cluster Up to 24 APs in one cluster
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Gigabit Ceiling Mount Access Point EAP120
Power Adapter
Mounting Kits
Resource CD
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
