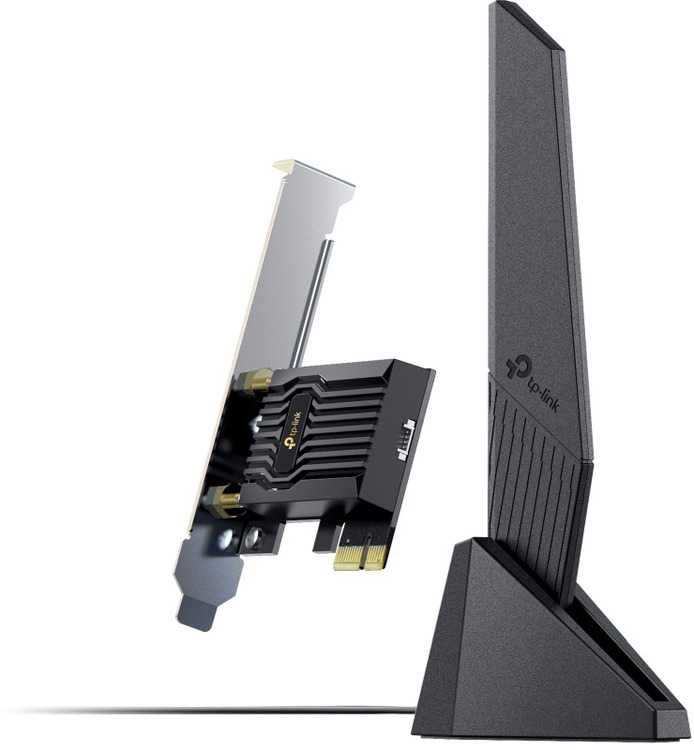

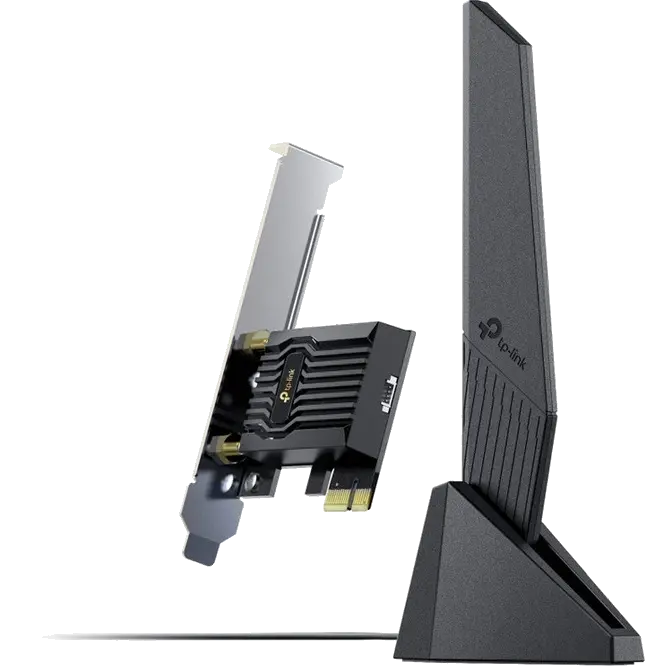

TP-Link Archer TXE73E AXE5400 Wi-Fi 6E Bluetooth PCIe Adapter
Web ID: 48244
Unparalleled Tri-Band Speed
Wi-Fi 6E Standard
Boosted Wi-Fi Reception
Bluetooth 5.3
Improved Security
Backward Compatibility
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: Archer TXE73E
Manufacturer Website
$99
|
HARDWARE FEATURES |
|
|---|---|
| Dimensions ( W x D x H ) | 3.09 × 4.8 × 0.85 in (78.5 × 120.8 × 21.5 mm) |
| Antenna | 1 × High–Gain Tri-Band Antenna (2T2R) |
|
WIRELESS FEATURES |
|
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| WLAN Signal Rate | 6 GHz: 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE20 MCS0: -93dBm 11ax HE160 MCS11: -54dBm 5 GHz: 11ac VHT20 MCS0: -94dBm 11ax HE160 MCS11: -55dBm 2.4 GHz: 11n HT20 MCS0: -93dBm 11ax HE40 MCS11: -60dBm |
| WLAN Transmit Power | 6 GHz: 14dBm(FCC) /18dBm(CE) (EIRP) 5 GHz: 23dBm(FCC) /18dBm(CE) (EIRP) 2.4 GHz: 23dBm(FCC) /18dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3(Personal/Enterprise), WPA-PSK/WPA2-PSK |
|
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | Archer TXE73E Magnetized Antenna Base with 0.8m RF Cable Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Supported operating systems include Windows 10, 11(64-bit). |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | Extension Cable Length: 0.8 m Bluetooth Header Cable Length: 0.3 m |
