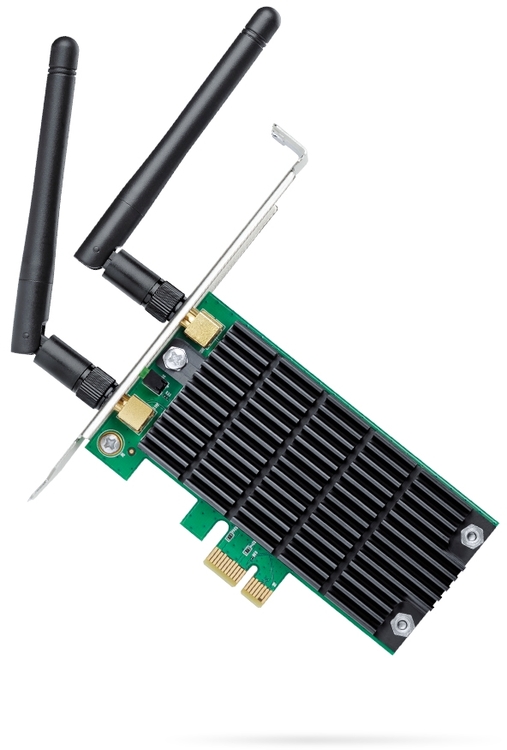

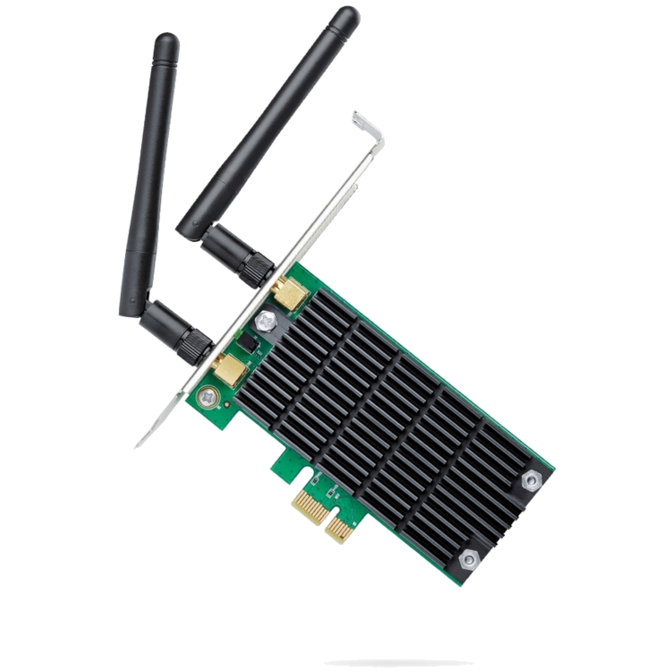

TP-Link Archer T4E Wireless-AC1200 PCIe Network Card


TP-Link Archer T4E Wireless-AC1200 PCIe Network Card

Web ID: 26506

Easy Installation Plug the adapter into an available PCI-E slot to upgrade your desktop. High-Speed Wi-Fi Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band). 802.11ac Dual Band 3 times faster than the 802.11n standard, perfect for high-intensity network usage.
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer T4E
GTIN: 6935364089931
Manufacturer Website

$39
 Add to cart
In Stock
 Compare
 Wish List
 Question

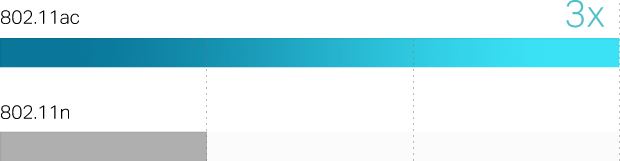

802.11ac - Dual Band Wi-Fi for Faster Connections

TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

tp-link archer t4e wireless-ac1200 pcie network card

867Mbps

5 GHz Band

300Mbps

2.4 GHz Band

Greater Coverage
with Beamforming

Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Other AC Adapter
Beamforming
Archer T4E

Heat Sink for Ultimate Stability

A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

Aluminum Alloy



External Antennas for More Targeted signal

Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

  • tp-link archer t4e wireless-ac1200 pcie network card

    Easy Setup

    Simple software installation with the intuitive Utility on the provided CD

  • tp-link archer t4e wireless-ac1200 pcie network card

    Advanced Security

    WAP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption standards ensure your data is safe from intruders

  • tp-link archer t4e wireless-ac1200 pcie network card

    Operating System

    Supports Windows 10/8.1/8/7/XP(32/64 bit)

  • tp-link archer t4e wireless-ac1200 pcie network card

    Low-Profile Bracket

    In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases

Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
Antenna Type 2 Dual Band Detachable Antennas
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz
Signal Rate 5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity 5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm

2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm
Transmit Power 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
Wireless Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD
System Requirements Windows 10/8.1/8/7/XP (32/64bit)
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
