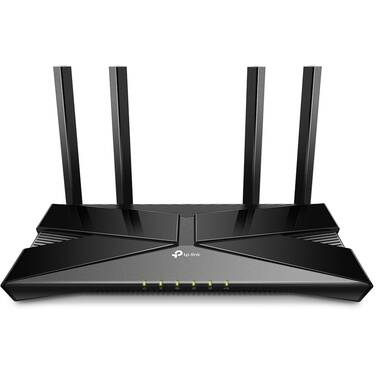

TP-Link Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router
Web ID: 28033
Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
Next-Gen 1.8 Gbps Speeds
Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
Quad-Core Processing: The 1.5 GHz quad-core CPU ensures communications between your router and all connected devices are smooth.
Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.
A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage. ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer AX20
GTIN: 6935364085209
Manufacturer Website
Explore the
New Era of Wi-Fi
AX1800 Dual-Band
Wi-Fi 6 Router
Archer AX20
Faster Speeds. More Connected Devices.
Powerful Processing.
Dual-Band Wi-Fi 6
- Up to 1.8 Gbps Speeds
- Connect More, Stay Fast
- Quad-Core CPU
- Reduced Power Consumption
- Refined Password Security
Wi-Fi 6 Upgrades Everything
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.
Wi-Fi 4, 2.4 GHz
40 MHz, 2×2 300 MbpsWi-Fi 6, 2.4 GHz
40 MHz, 2×2 574 Mbps90% Faster
Wi-Fi 5, 5 GHz
80 MHz, 2×2 867 MbpsWi-Fi 6, 5 GHz
80 MHz, 2 ×2 1201 Mbps40% Faster
Extensive Wi-Fi Coverage with Advanced Technologies
Beamforming technology, independent Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
-
Beamforming
-
Independent FEM
4× Antennas
Connect More,
Stay Fast
Easily handle dozens of devices streaming and gaming at the same time—OFDMA and MU-MIMO technology combine to future-proofs your home networks by providing greater capacity to connect more devices.
OFDMA
Enables different devices to share one transmission stream, increasing efficiency.
MU-MIMO
Transmits data to different devices simultaneously using multiple streams.
1.5 GHz Quad-Core CPU
Powerful Processing for
Minimal Latency
A powerful 1.5 GHz quad-core CPU generates minimal latency within your network even under heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Traditional 2×2 AC Router
0.9 GHz
Single-Core CPU
Archer AX20
1.5 GHz
Quad-Core CPU
Versatile Connectivity
Easy File Sharing
Share music, movies, and documents easily on every device across your home network.
Full Gigabit Ports
Connect to your devices using a wired network for robust stability.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easily Setup and Manage Wi-Fi with the Tether App
Setup your Wi-Fi through the TP-Link Tether app in 1 minute. Manage network with versatile tools provided by TP-Link HomeCare™ Pro including QoS, online time limits, antivirus, and more.
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
?Use of MU-MIMO, DL/UL OFDMA and 1024QAM requires clients to also support those functions.
‡Saving clients' battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors.
§Latency improvement requires that the AP and all clients support OFDMA.
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High
Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN/ PPTP/ L2TP VPN Server |
| VPN Client | OpenVPN/ PPTP/ L2TP VPN Client |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Processor | Dual-Core CPU (V3) |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | V1, V2: 12 V ? 1.5 A V3: 12 V ? 2.0 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX20 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-97dBm 11n HT20_MCS0:-97dBm 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm 11ax HE40_MCS11:-61dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Contents | Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
