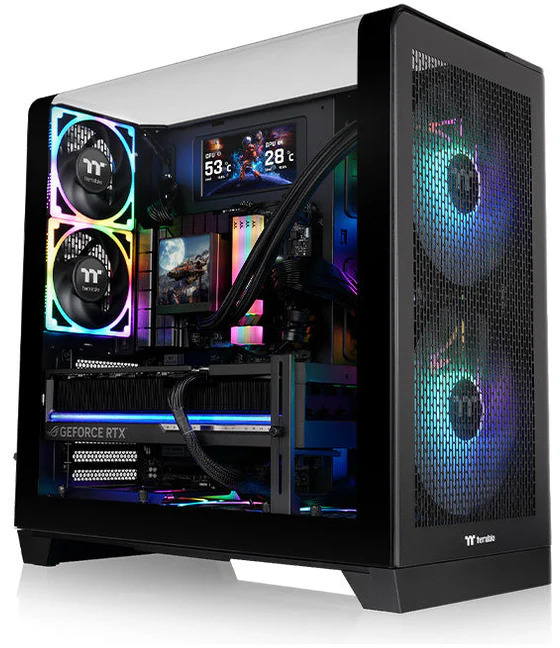

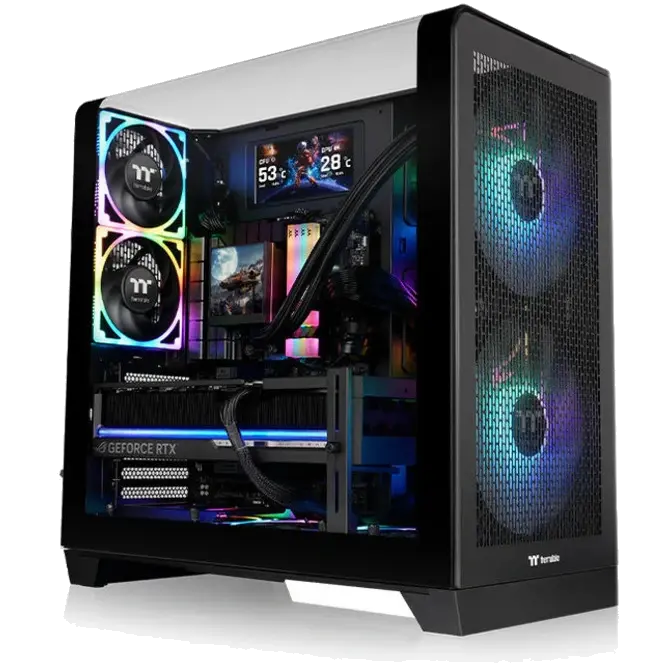

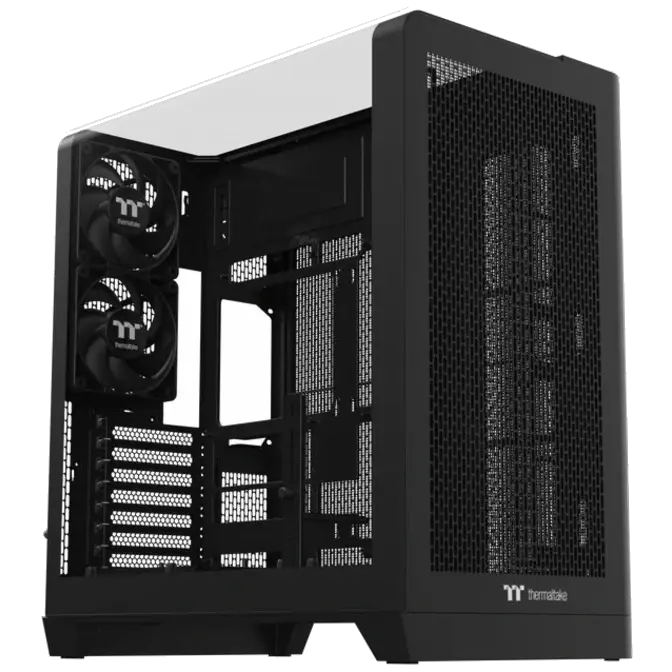

Thermaltake View 390 Air Curved TG ATX Mid Tower Case Black
Web ID: 47665
Case Type: ATX Case
Motherboard Form Factor: Mini-ITX || Micro-ATX || ATX
PSU Form Factor: ATX
Cooler Clearance (mm): 160mm
GPU Clearance (mm): 390mm
USB-A Ports: 2
USB-C Ports: 1
Drive Bays: 2.5" || 3.5"
Radiator Size: 120mm || 140mm || 240mm || 280mm || 360mm
Colour: Black
Manufacturer Warranty: 3 Year
Manufacturer PN: CA-11F-00M1WN-00
Manufacturer Website
$229SAVE $10
| P/N | CA-11F-00M1WN-00 |
|---|---|
| Series | View |
| Case Type | Mid Tower |
| Dimensions | 503 x 287 x 485mm (19.80 x 11.30 x 19.1inch) |
| Side Panel | 4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System | Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2 |
| Drive Bays | 2 x 3.5” , 1 x 2.5” or 3 x 2.5” |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboard | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) Hidden-Connector Motherboard 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm 2 x 140mm 2 x 200mm Right: 3 x 120mm Rear: 2 x 120mm Bottom: 3 x 120mm |
| Radiator Support | Front Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Clearance | CPU cooler height limitation: 160mm VGA length limitation: 390mm with Radiator /420mm without Radiator PSU length limitation: 200mm (with 2.5" SSD) 260mm (without 2.5" SSD) |
