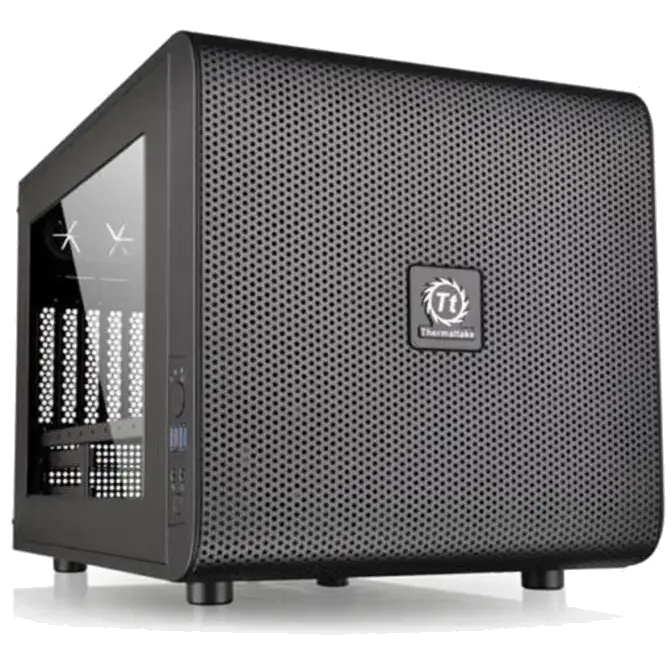

Thermaltake MicroATX Core V21 Cube Case Black CA-1D5-00S1WN-00

Web ID: 14050

As the latest addition to the Core V Series, the new Thermaltake Core V21 sports a quadrate micro M-ATX-based chassis that offers an endless stackable and flexible thermal solution. It allows externally-modular upgrades for enthusiasts to create dual systems
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-1D5-00S1WN-00
GTIN: 841163060001
Manufacturer Website

$109

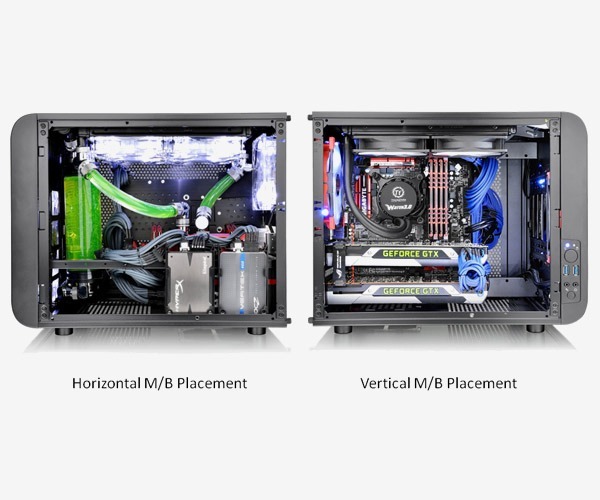

Vertical or Horizontal Motherboard Placement
The Core V21 is designed for use in either a vertical or horizontal orientation on the motherboard. Built for customization that reflects the enthusiast’s personality, it allows for adjustments to the chassis for the best viewing presentation while ensuring outstanding cooling performance. A removable PSU dust filter is embedded in the bottom panel of the chassis. Additionally, shockproof rubber gaskets on the PSU bracket help to minimize noise during operation.

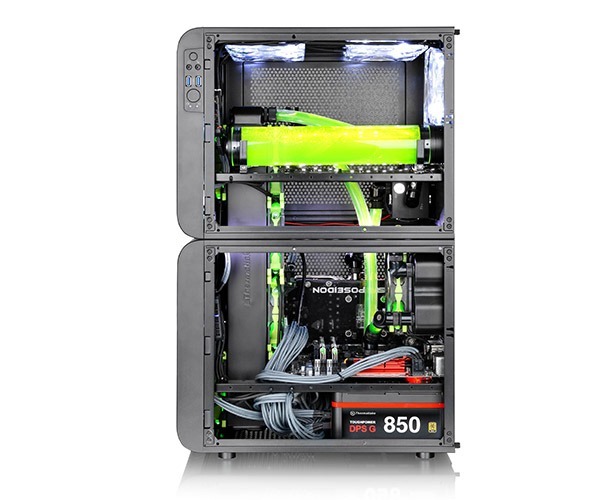

Stackable and Flexible Thermal Solution

With its endless stackable design, the Core V21 is in a class above the rest. Virtually limitless utility is possible. It’s the first expandable system that allows enthusiasts to incorporate externally -modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby allowing for a dedicated top/bottom set-up for pure cooling. The maximum radiator length supported is 600mm at the front of the stack.

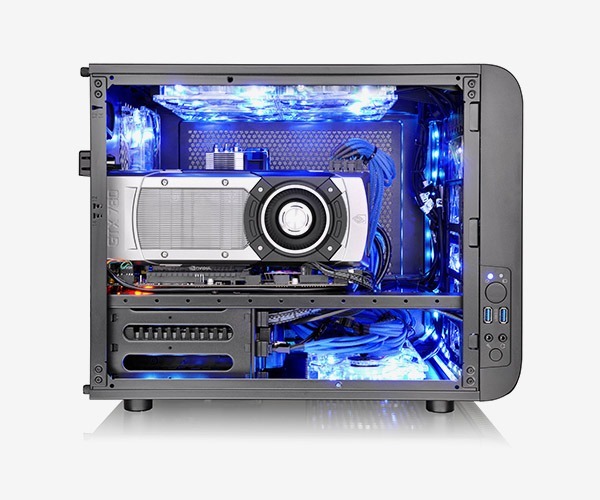

Remarkable Expansion

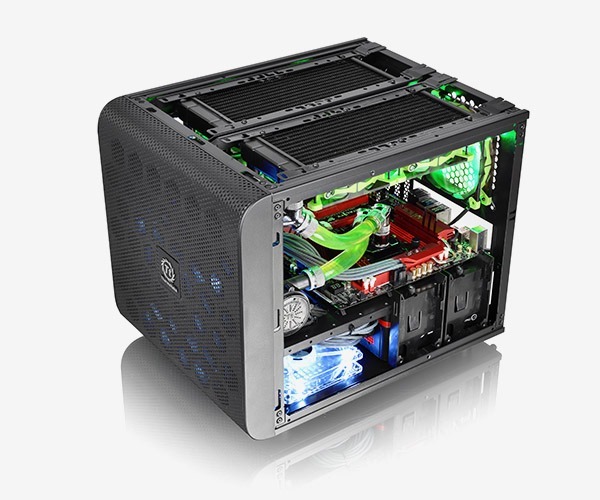

Designed for high-end gaming system compatibility, the Core V21’s modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA up to 350mm in length, and a tower CPU cooler up to 185mm in height. Even with a high-wattage PSU of up to 200mm in length, there’s still plenty of space available for cable management. Moreover, two 240mm radiators can be installed on top of the chassis, delivering superior cooling performance.



Optimized Ventilation
With its exceptional cooling ability, the Core V21 offers various mounting points to support all types of cooling systems, including DIY/AIO liquid-cooling systems and air-cooling units. A large 200mm fan is preinstalled on the front to guarantee that any type of gaming system can be accommodated.

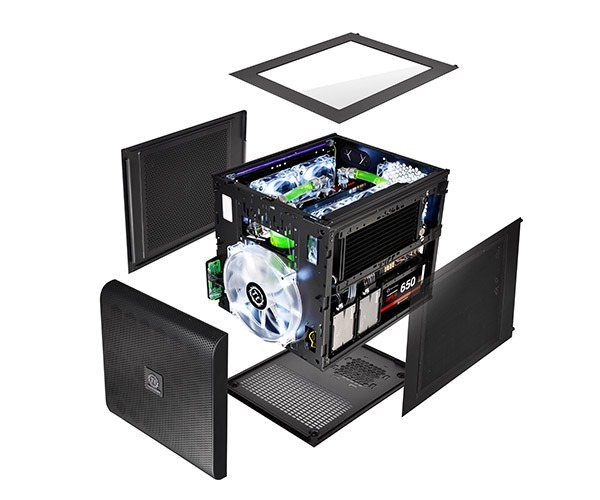

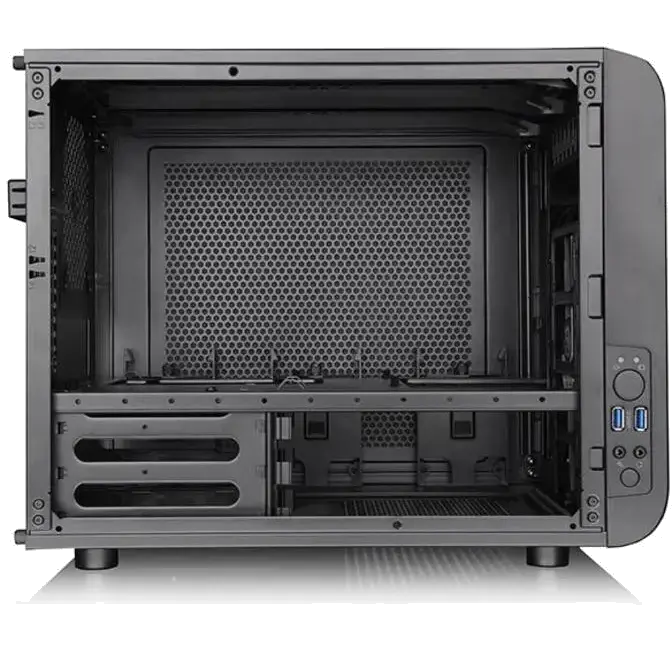

Chambers Concept
The Core V21 is optimized for space management. It is divided into two main chambers: the upper chamber is made for cooling performance and efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.

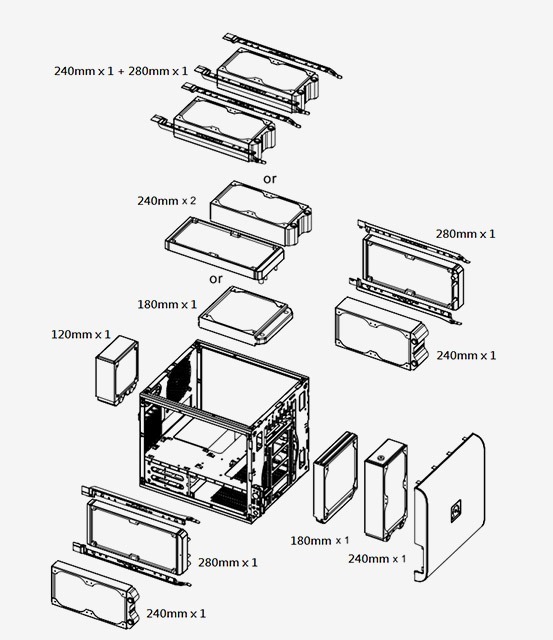

Core V21 Radiator Supporting List
Radiator Compatibility List
 120
mm
140
mm
180
mm
240
mm
280
mm
360mm (120mm based)360mm (180mm based)420
mm
480
mm
540
mm
Front**********
Top*****
Rear
Bottom
Side (L/R)** **

*Highlighted parts are only on stacking mode

Water 3.0 Compatibility List
 UltimateExtremeProPerformer
Front****
Top****
Rear  **
Bottom

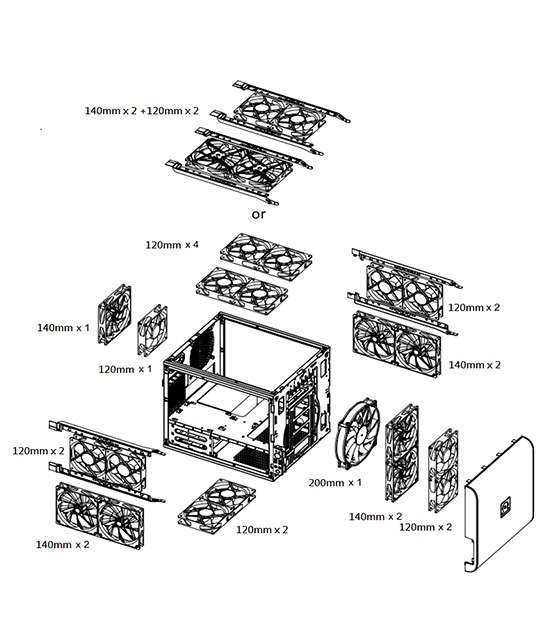

Core V21 Fan Supporting List
Water 3.0 Compatibility List
 80mm120mm140mm200mm
Front-221
Top-42-
Rear-11-
Bottom-2--
Side (L/R)-22-

Thermaltake Compatible Fan
 80mm120mm140mm
Pure Fan Series***
Luna Fan Series***
Odin Fan Series*



P/N CA-1D5-00S1WN-00
Case Type Micro Case
Dimension (H x W x D) 336 x 320 x 424 mm
(13.2 x 12.6 x 16.7 inch)
Net Weight 6.5 kg / 14.3 lb

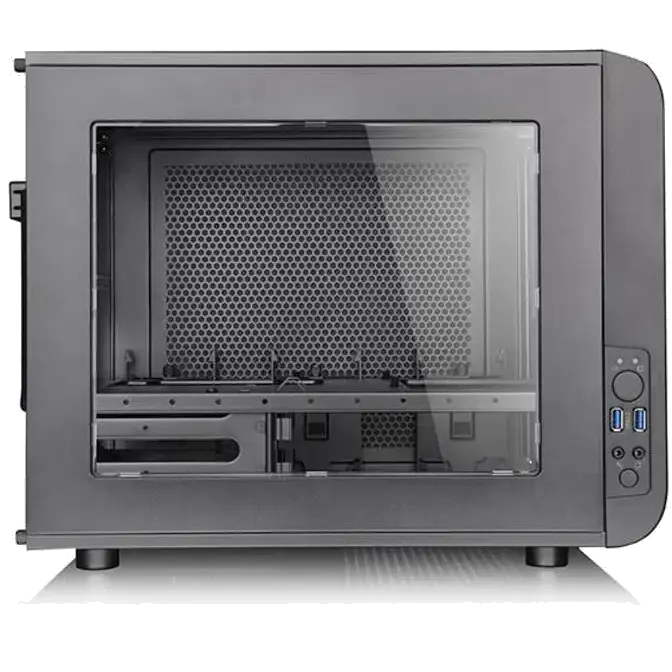

Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
200 x 200 x 30 mm fan (800rpm, 13dBA)
Drive Bays -Hidden : 3 x 3.5’’ or 2.5” , 3 x 2.5’’
Expansion Slots 5
Motherboards 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX)
I/O Ports USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”?3/8”?1/4” water tube
Fan Support Front:
1 x 120mm or 2 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm or 4 x 120mm
1 x 140mm or 2 x 140mm
Rear:
1 x 120mm
1 x 140mm
Bottom:
1 x 120mm or 2 x 120mm
Left / Right Side:
1 x 120mm or 2 x 120mm
1 x 140mm or 2 x 140mm
Radiator Support Front:
1 x 120mm or 1 x 240mm
1 x 140mm
Top:
2 x 120mm or 2 x 240mm
1 x 140mm or 1 x 280mm
Rear:
1 x 120mm
Left / Right Side:
1 x 120mm or 1 x 240mm
1 x 140mm or 1 x 280mm
  CPU cooler height limitation: 185mm
VGA length limitation: 350mm
PSU length limitation: 200mm (With Bottom Fan)
