This product is no longer avaliable.
See suggested alternative models below.

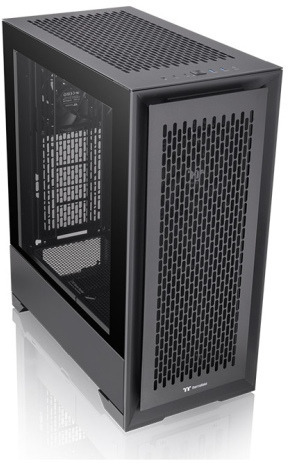

The CTE T500 Air is a specially designed E-ATX full tower chassis from the new CTE form factor series that emphasizes more airflow and is designed to provide high levels of thermal performance to critical components. It comes with three pre-installed 140mm CT140 fans and can support up to a 420mm AIO radiator at the front, and up to a 360mm AIO radiator at the rear.
| P/N | CA-1X8-00F1WN-00 |
|---|---|
| SERIES | CTE |
| CASE TYPE | Full Tower |
| DIMENSION (H X W X D) | 615 x 275 x 516 mm (24.21 x 10.83 x 20.31 inch) |
| NET WEIGHT | 15.3 kg / 33.73 lbs. |
| PANEL | 4mm Tempered Glass x 1 |
| COLOR | Black |
| MATERIAL | SPCC / ABS |
| COOLING SYSTEM | Front(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 |
| DRIVE BAYS | 4 x 3.5” or 6 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 1 x 120mm, 1 x 140mm PSU Cover: 1 x 120mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Top: 1 x 120mm(AIO only) Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: 195mm VGA max length: 385mm PSU max length: 180mm |
3 Year
Manufacturers Warranty
