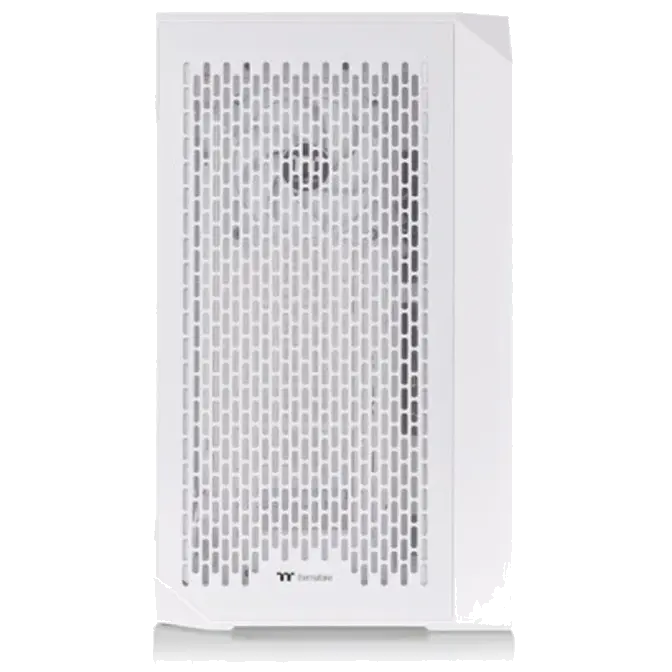

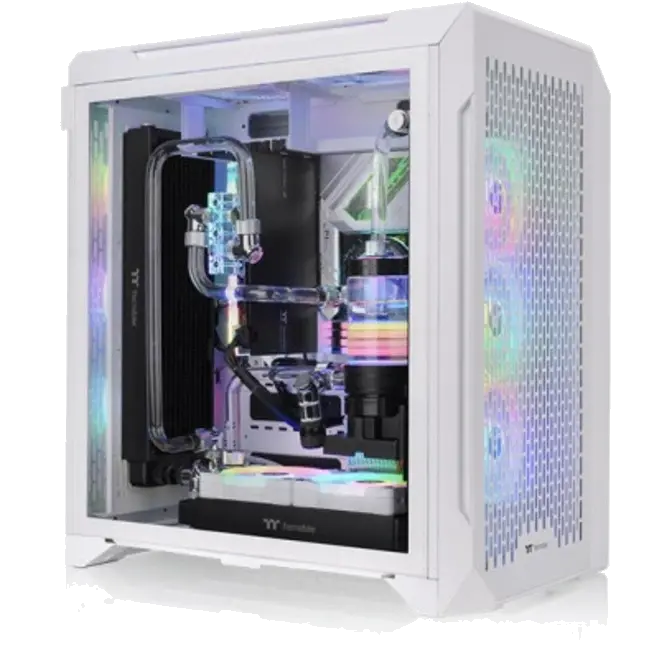

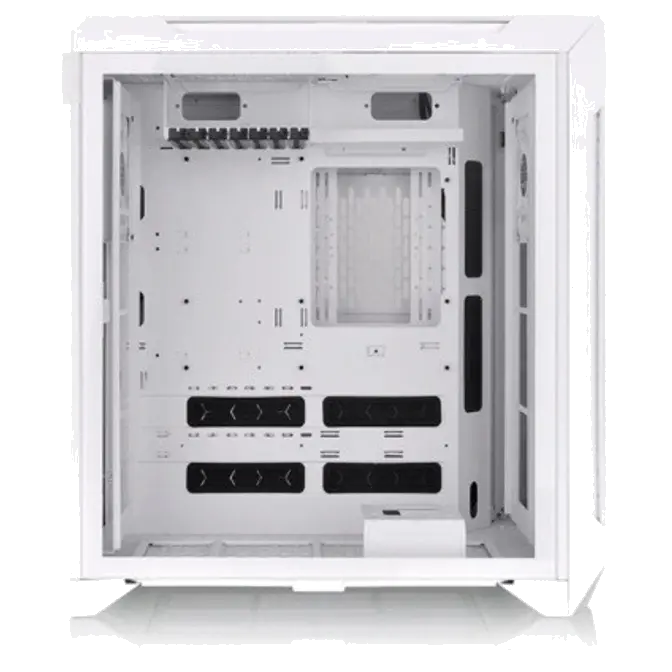

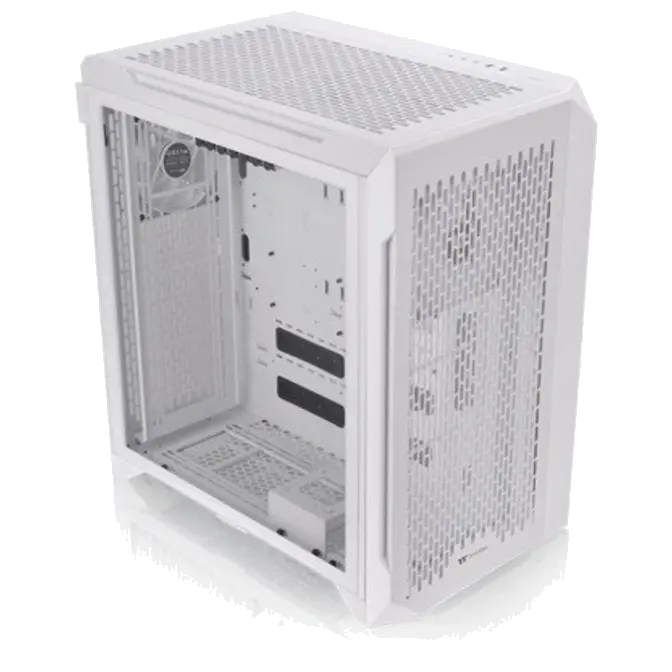

Thermaltake E-ATX CTE C700 Air TG Mid Tower Case White CA-1X7-00F6WN-00
Web ID: 37068
The CTE C700 Air, a specially designed E-ATX mid tower chassis from the new CTE form factor series, was engineered to provide optimal thermal efficiency and maximum airflow to ensure that critical components of your build are provided with adequate cooling. To achieve this the CTE C700 Air can support up to a 420mm AIO radiator not only at the front but also at the rear of the chassis. Three 140mm CT140 fans are pre-installed.
Manufacturer Warranty: 3 Year
Manufacturer PN: CA-1X7-00F6WN-00
GTIN: 841163087183
Manufacturer Website
$199
| P/N | CA-1X7-00F6WN-00 |
|---|---|
| SERIES | CTE |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 566.5 x 327.6 x 505.5 mm (22.3 x 12.9 x 19.9 inch) |
| NET WEIGHT | 15.8 kg / 34.83 lbs. |
| PANEL | 4mm Tempered Glass x 1 |
| COLOR | White |
| MATERIAL | SPCC / ABS |
| COOLING SYSTEM | Front(intake): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1 Top(exhaust): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1 Rear(intake): 140 x 140 x 25 mm CT140 white fan (1500rpm, 30.5 dBA) x 1 |
| DRIVE BAYS | 7 x 3.5” or 6 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 1 x 120mm, 1 x 140mm Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: 190mm VGA max length: 327mm (With radiator) 410mm (Without radiator) PSU max length: 220mm |
