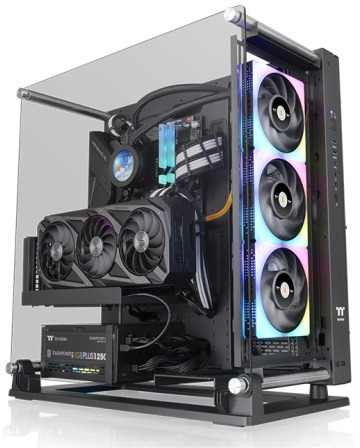

Thermaltake E-ATX Core P3 Pro Tempered Glass Mid Case CA-1G4-00M1WN-09
Web ID: 34869
The new open frame chassis of the iconic Core P series, the Core P3 TG Pro, is an upgraded version of our beloved Core P3 TG. The chassis includes an additional fan bracket, modernized I/O ports, redesigned base and an improvement on the M/B side layout which provides plenty of possibilities for advanced hardware.
Manufacturer Warranty: 3 Year
Manufacturer PN: CA-1G4-00M1WN-09
GTIN: 841163084915
Manufacturer Website
$239
| P/N | CA-1G4-00M1WN-09 |
|---|---|
| SERIES | Core |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 535 x 268 x 500 mm (21.06 x 10.55 x 19.69 inch) |
| NET WEIGHT | 12.5 kg / 27.6 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1 |
| COLOR | Black |
| MATERIAL | SPCC |
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Bracket (front or top): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bracket (front or top): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler height limitation: 180mm VGA length limitation: 330mm(With reservoir) 450mm(Without reservoir) PSU length limitation: 200mm |
